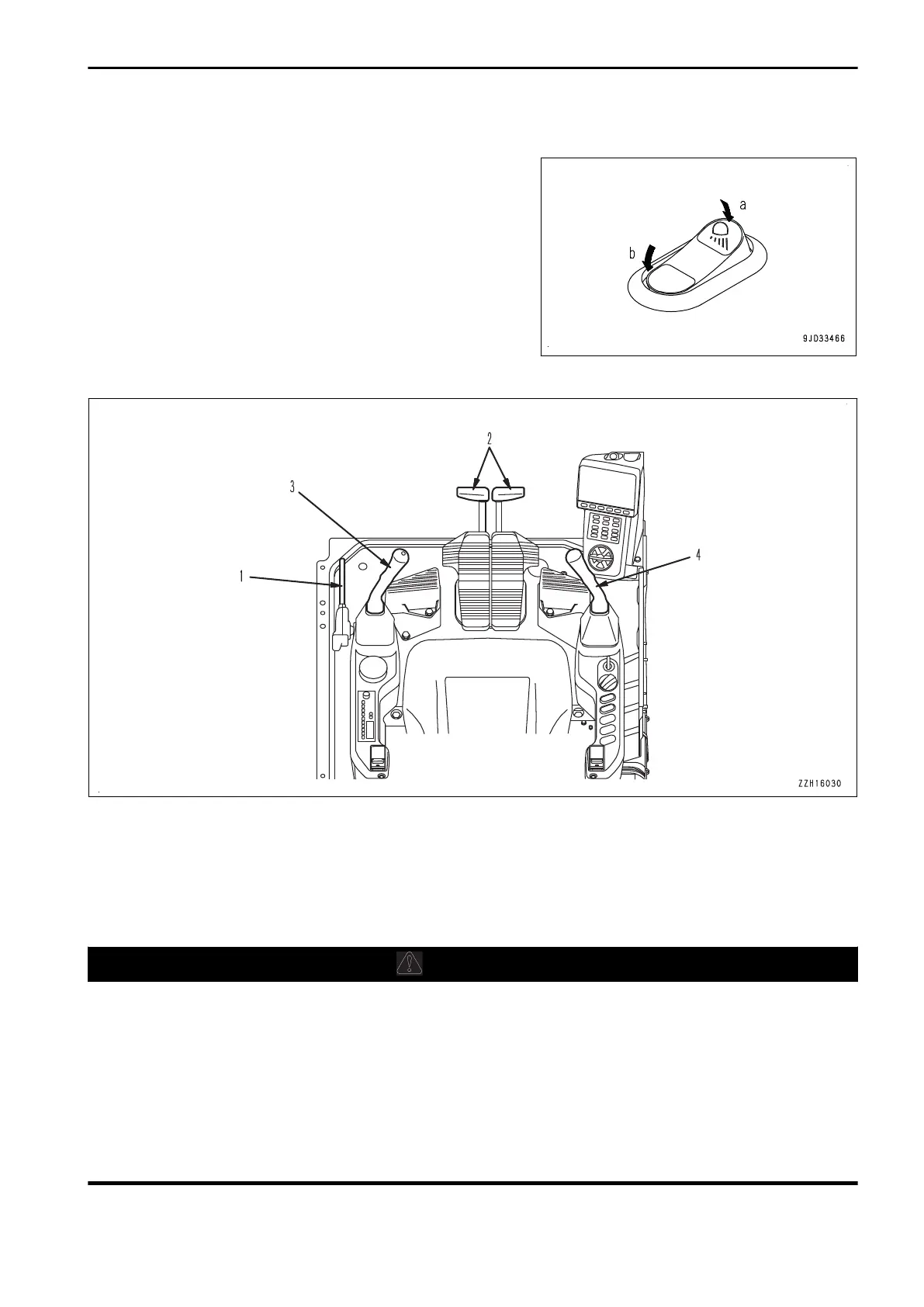

WALK-THROUGH LIGHT SWITCH
Use this switch when you pass through the walk-through in the
night.
(a) ON position
Lights up
(B) OFF position
Not lit
CONTROL LEVERS AND PEDALS
(1) Lock lever
(2) Travel levers (with pedal and auto-deceleration
system)
(3) L.H. work equipment control lever (with auto-decel-
eration system)
(4) R.H. work equipment control lever (with auto-de-
celeration system)
LOCK LEVER
WARNING
• When leaving the operator's seat, set the lock lever securely to LOCK position. If the lock lever is
not at LOCK position and the control levers or control pedals are touched by mistake, it may lead to
serious personal injury or death.
• Check that the lock lever is securely in LOCK position.
• When pulling up or pushing down the lock lever, be careful not to touch the work equipment control
lever. Check that the work equipment control lever does not catch any clothes.
• Before setting the lock lever to FREE position, make sure that all control levers and pedals are set
to NEUTRAL position. If any of them is out of NEUTRAL position, the work equipment or machine
may move suddenly and cause a serious personal injury or death.
OPERATION EXPLANATION OF COMPONENTS
3-97
