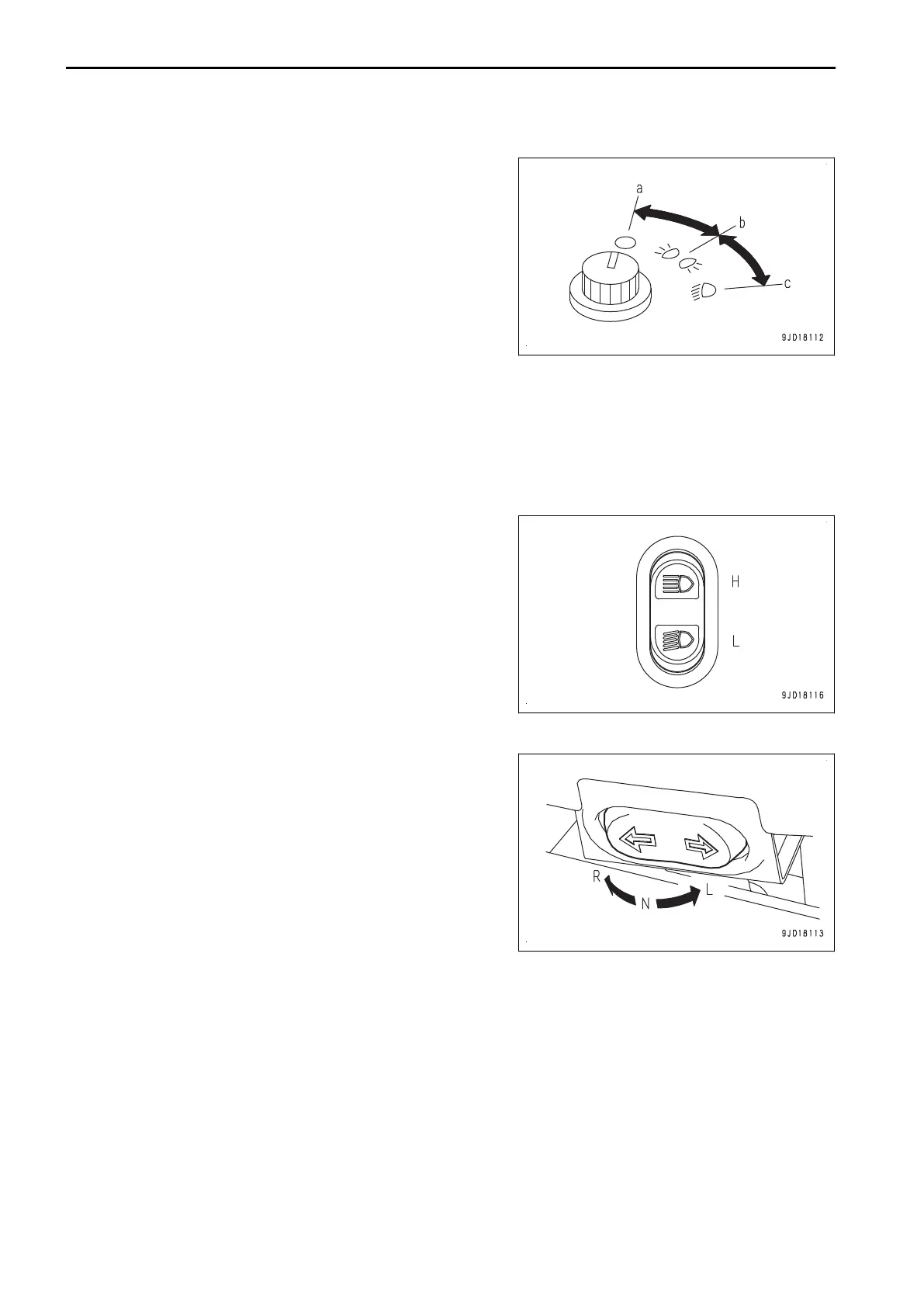

LAMP SWITCH
The lamp switch is used to light up the headlamps, clearance
lamps, tail lamps, and machine monitor.
(a) OFF position
The lamps go out.
(b) ON position
The clearance lamps, tail lamps, and machine monitor light up.
(c) ON (headlamp lighting) position
The clearance lamps, tail lamps, headlamps, and machine
monitor light up.
When the lamp switch is turned to ON positions (b) and (c), the clearance lamp pilot lamp and the night lamp for
switches light up.
When the monitor brightness selector switch is set to the night position, the machine monitor and rearview moni-
tor are dimmed.
The lamp switch can be switched regardless of the position of the turn signal lever.
DIMMER SWITCH
The dimmer switch is used to change the headlamp direction.
(H) Upward direction position
The headlamp is in an upward direction.
(L) Downward direction position
The headlamp is in a downward direction.
TURN SIGNAL SWITCH
Turn signal switch is used to operate the turn signal lamp
(L) Left turn position
The left turn signal lamp and the left turn signal pilot lamp flash.
(N) OFF position
The right and left signal lamp and the right and left turn signal
pilot lamp go out.
(R) Right turn position
The right turn signal lamp and the right turn signal pilot lamp
flash.
REMARK
Turn signal switch returns the original position automatically when letting go of it. Turn signal pilot lamp remains
flashing until the machine returns to the straight travel.
If the turn signal switch does not return the original position automatically, turn the turn signal switch to OFF
position (N) to turn it off.
FRONT WIPER, WINDOW WASHER SWITCH
NOTICE
Using the wiper when the glass is dry will scratch the glass. Spray with window washer fluid before ac-
tuating the wiper.
EXPLANATION OF COMPONENTS OPERATION
3-108
