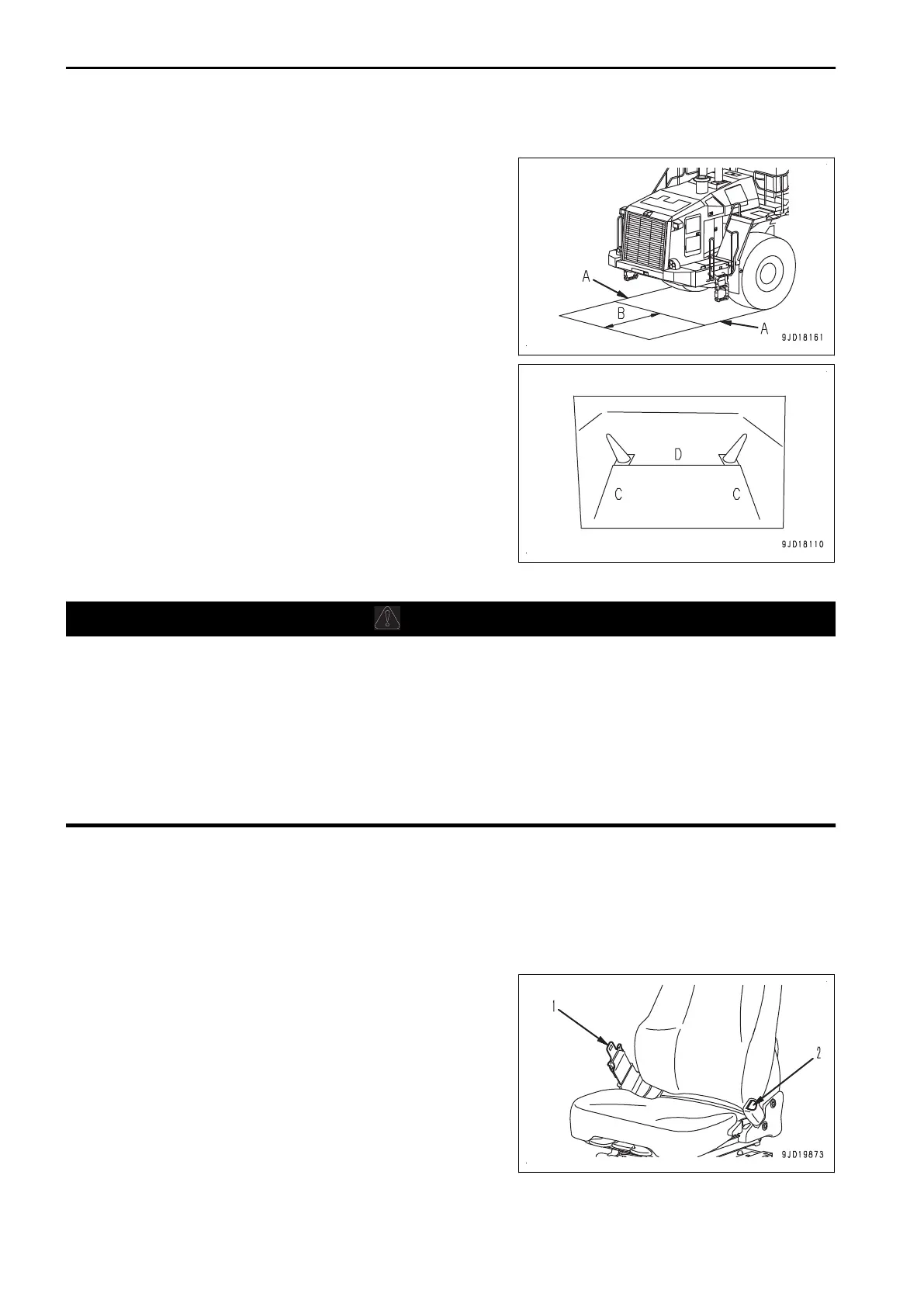

CHECK REAR VIEW CAMERA GUIDE LINE
1.
Check that the images on the rearview monitor are normal,
machine width guide line (C) matches to tire outside width
(A), and horizontal line (D) matches to position (B) that is
1.5 m away from the rear end of the machine.
2.
When the guide line is abnormal, change its setting to
Non-display.
Contact your Komatsu distributor.
METHOD FOR FASTENING AND UNFASTENING SEAT BELT
WARNING
• Before fastening the seat belt, check that there is no problem in the belt mounting bracket or belt. If
it is worn or damaged, replace it.
• Even if no problem can be seen in the belt, replace the seat belt every 3 years from starting usage
or 5 years after manufacture whichever comes sooner. The date of manufacture of the belt is shown
on the back of the belt.
• Before operating, fasten the seatbelt.
• Be sure to use the seat belt during operation.
• Do not twist the seat belt when fastening.
REMARK
The date indicated on the seat belt is the manufactured date. It is the start of the 5-year period. It is not the start
of the 3-year period of actual usage.
METHOD FOR FASTENING SEAT BELT
Fit the seat belt so that it fits tightly, without being too tight.
1.
Sit in the seat and depress the brake pedal fully. Under this
condition, adjust the seat so that your back is fitted to the
backrest.
2.
Pull the belt on the right side, then insert tongue (1) into
buckle (2) until a “click” is heard.
3.
Pull the seat belt to check that it is securely locked.
MACHINE OPERATIONS AND CONTROLS OPERATION
3-190
