3.3.8. Operating the work equipment

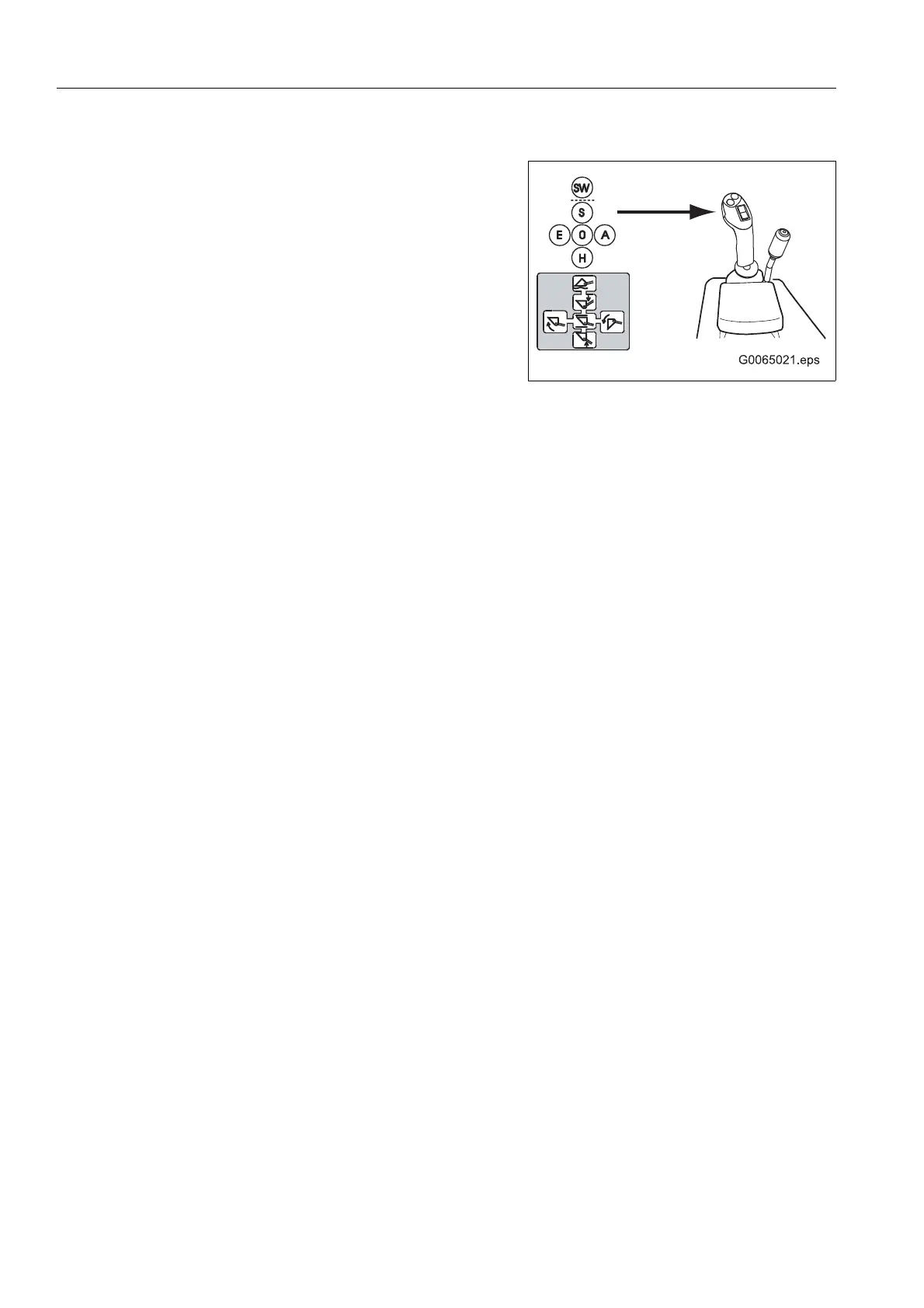

Multifunctional lever
The work unit is operated with the multifunctional lever. The multi-
functional lever has 6 positions which control the work unit as fol-
lows:
SW Float
â
The multifunctional lever is locked in
this position. The floating position is
provided for planing operations
(removing subsoil). In this switch posi-
tion, the work unit is lowered by its
own weight, and can be freely oper-
ated by external parties.
S Lower
ç
The boom is lowered in this position.
If the engine is switched off, you can
lower the boom in this position.
0 Hold
å
The boom is held in position.
H Raise
ã
The boom is raised in position.
E Tilt
ä
In this position, the bucket is tilted.
A Dump
à
In this position, the bucket is dumped.
