Maintenance Service procedure
WA70-5 – VEAM320100 5-55
Transfer box – checking and refilling oil
NOTE
If the engine is not running, the oil level in the transfer box
can significantly rise. Therefore, only check the gear oil level
with the engine running idle at operating temperature. The
gearshift assembly must be in neutral position.
DANGER
● If you perform maintenance operations at a machine
which is not properly parked and secured, severe acci-
dents may occur!
● Park the machine on firm, level ground and secure it
before starting the maintenance operations.
1. For maintenance operations, park and secure machine as
described in chapter ""5.1. Maintenance guide" on page 5-2"

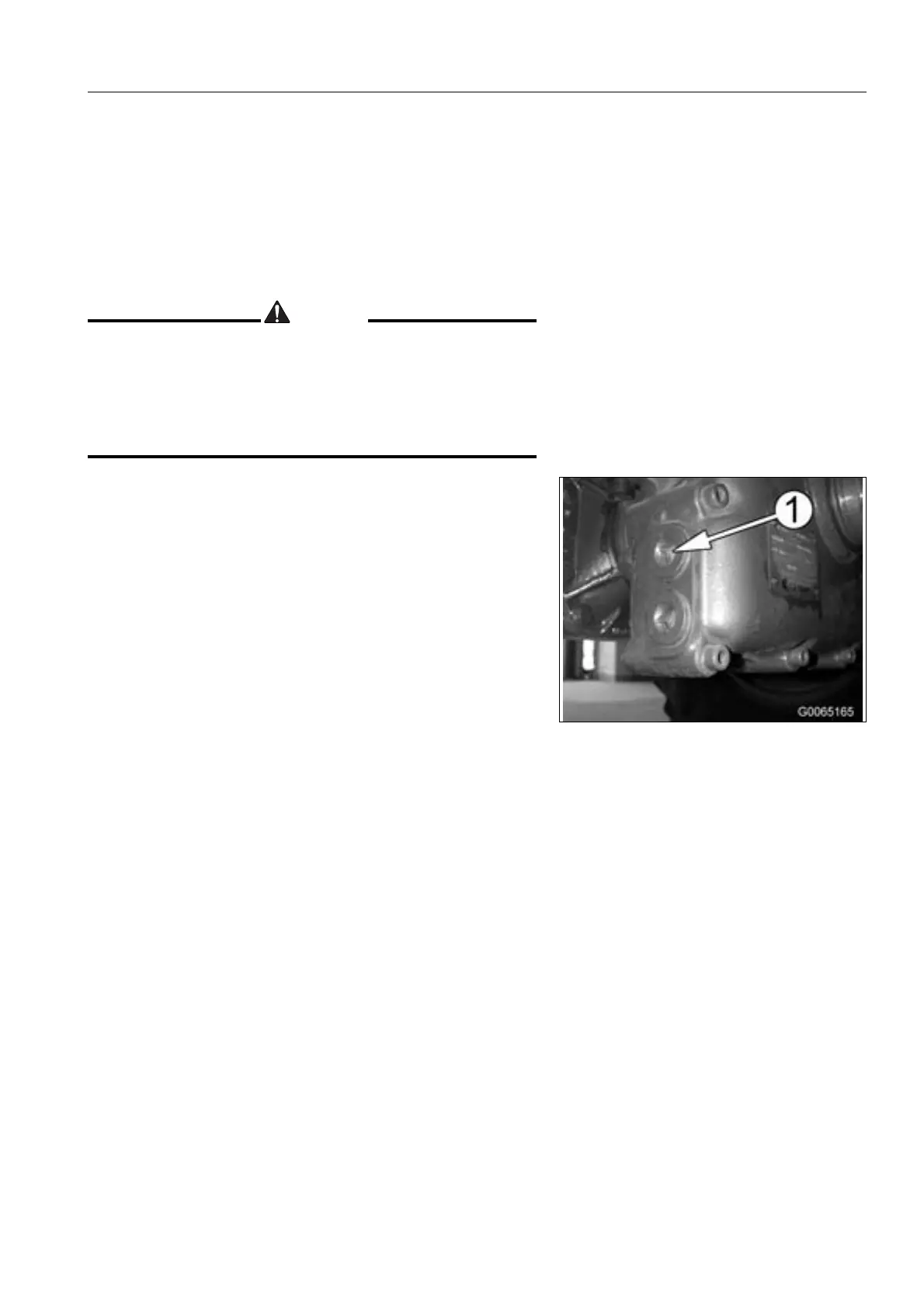

2. Clean the screw plug (1) and the adjacent environment.
3. Unscrew the screw plug.
4. Check the oil level. The oil level must be at the lower edge of
the control drill hole of the screw.
5. If the oil level is too low, fill up with oil using the control drill
hole of the screw (1).
6. Clean the screw plug and insert a new packing ring.
7. Re-tighten firmly the screw plug.
