Troubleshooting by failure code

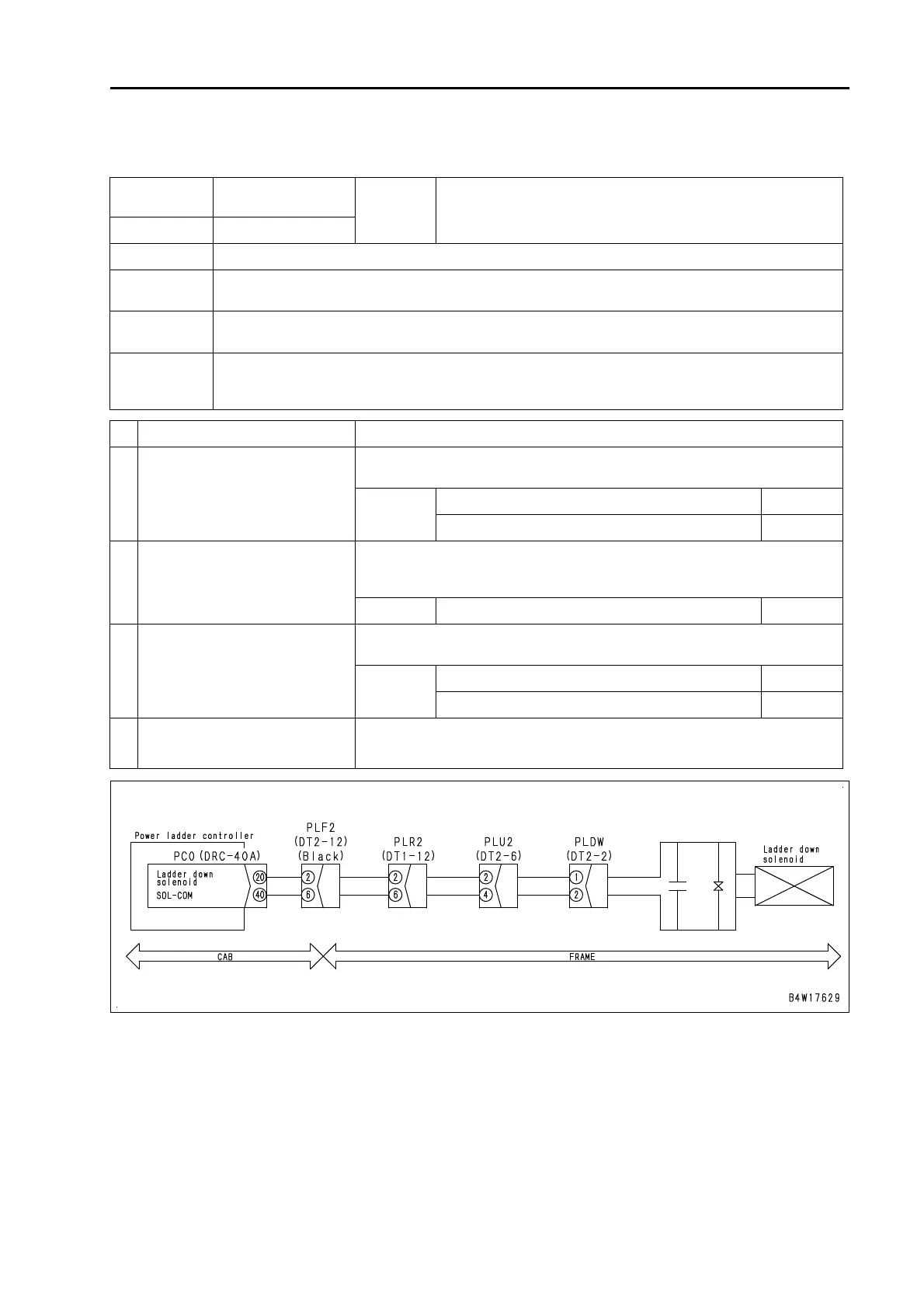

Failure code [D1ESKZ] (Ladder lower solenoid output abnormality: Open circuit, hot short circuit)
WA900-3E0
Failure code [D1ESKZ] (Ladder lower solenoid output abnormality: Open
circuit, hot short circuit)
40-21
Action level Failure code
Failure Open circuit or hot short circuit in ladder LOWER solenoid
E01 D1ESKZ
Detail of failure
q Controller detects open circuit or hot short circuit while it is not driving ladder LOWER solenoid.
Action of con-
troller
q Stops driving ladder RAISE and LOWER solenoids.
q Sounds ladder alarm to warn those around.
Problem on
machine
q Ladder alarm sounds while no switch is operated.
q Ladder may move (lower) while no switch is operated.
Related infor-
mation
q Ladder can be moved to storage and boarding positions by using emergency release valve.
q Output signal to ladder LOWER solenoid can be checked with monitoring function.
Code: 40992 "D-OUT-19" (ON: 1, OFF: 0)
No. Cause Procedure, measuring location, criteria and remarks
1
Open circuit in wiring harness
(wire breakage or defective con-
tact of connector)
1. Turn starting switch to OFF position.
2. Disconnect PC0 and PLDW.
Resistance
Between PC0 (female) (20) and PLDW (female) (1) Max. 1 z
Between PC0 (female) (40) and PLDW (female) (2) Max. 1 z
2
Hot short circuit in wiring harness
(short to 24 V power supply circuit)
1. Turn starting switch to OFF position.
2. Disconnect PC0 and connect T-adapters.
3. Start engine and perform troubleshooting.
Voltage Between PC0 (female) (20) and (40) Max. 1 V
3 Defective ladder LOWER solenoid
1. Turn starting switch to OFF position.
2. Disconnect connector PLDW.
Resistance
Between PLDW (male) (1) and (2) 15 to 30 z
Between PLDW (male) (1) and ground Min. 1 Mz
4 Defective power ladder controller
If no failure is found by check on causes 1 to 3, power ladder controller may be
defective. (Since this is an internal defect, troubleshooting cannot be per-
formed.)
40-21
To Next Page
