PLAY360

V00050GB 20140814 RikBon/PetrJu

14/19

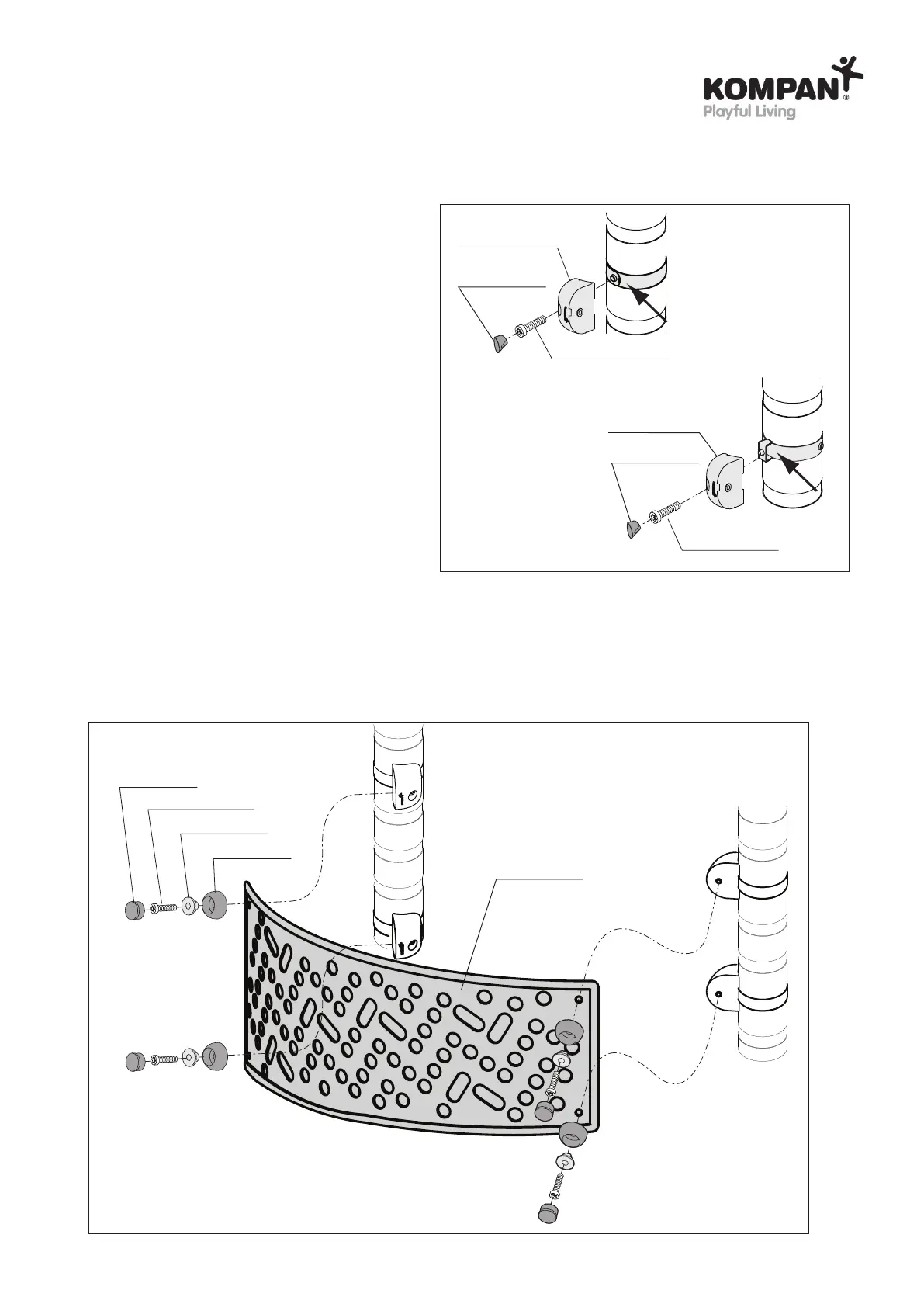

ill. 23

ill. 24

A400508-06

For connectors:

A400426-66

M8x30 (BLACK)

210100408030

For straps:

M8x40

210100408040

A10086-06

A10085-06

210100408030

A400278-52

A400872-51

Assembly order (continued)

Installing wall panels

First install the wall brackets onto the posts:

Installation of wall brackets: Wall brackets may

be attached to a strap or to a secondary connector,

see ill. 23 which bolts to use.

IMPORTANT!

Do not tighten connections nor install the plastic

cover for wall bracket until all panels have been

installed.

Installing upper wall panels (ill. 24): Four wall brackets are used to support an upper wall panel.

- Panels are attached to the wall bracket using a M8x30 bolt (210100408030), en washer (A400278-52)

and a tropic nut (A10086-06 + A10085-06), see ill. 24.
