Assembly order
Getting started
Post / floor frame assembly (ill. 12)
Floors come in various shapes and sizes, see the diagram on the last page.
Choose a fixed starting point when you begin assembling the floors. This could be any floor, but we
recommend that you choose either the highest or the lowest floor.
- Select the floor frame with the specified shape and size - see Post and Floor Layout Drawing, and
install the specified post on the frame. The easiest way to do this is to set the floor frame on edge
and then place the post in the floor frame mounting bracket at the correct position/height, i.e. when
the chosen floor height is 1000 mm the floor frame is to be installed on rings no. 9 and 10 on the post.
- The posts are configured as described under Preparing the installation and therefore the correct number
of straps will be provided for the assembly on the specified rings of the post, ill. 12.
- Now loosely attach the bolts and washers - always starting by using 8x40 mm bolts in the threaded part
of the strap and (if there are several connections at one level/ring) use 8x30 mm bolts in the secondary
connectors. Do not tighten the bolts, otherwise it will be impossible to install the adjoining floor frames.
- All posts are connected to the floor frames as described above.
- Then put this part of the structure to an upright position and place it correctly according to the plan.
- Now the adjoining floor frames at the same level, or at other levels, are installed and then their respective
posts, etc.
- When the adjoining floor frame has been installed, the previous floor frame is re-tightened.
Before re-tightening floor frames, always remember to place a plug at the bottom of the floor frame
mounting bracket, ill. 12 (2).
When installing floor frames at the same level, a 4" C-clamp, see ill. 13, may come in handy in order to hold the
new frame in position and thus avoid gaps.
IMPORTANT! Prior to the installation of each floor frame, don't forget to check that posts are plumb and floor
frames are level. It is also possible to adjust the footing.

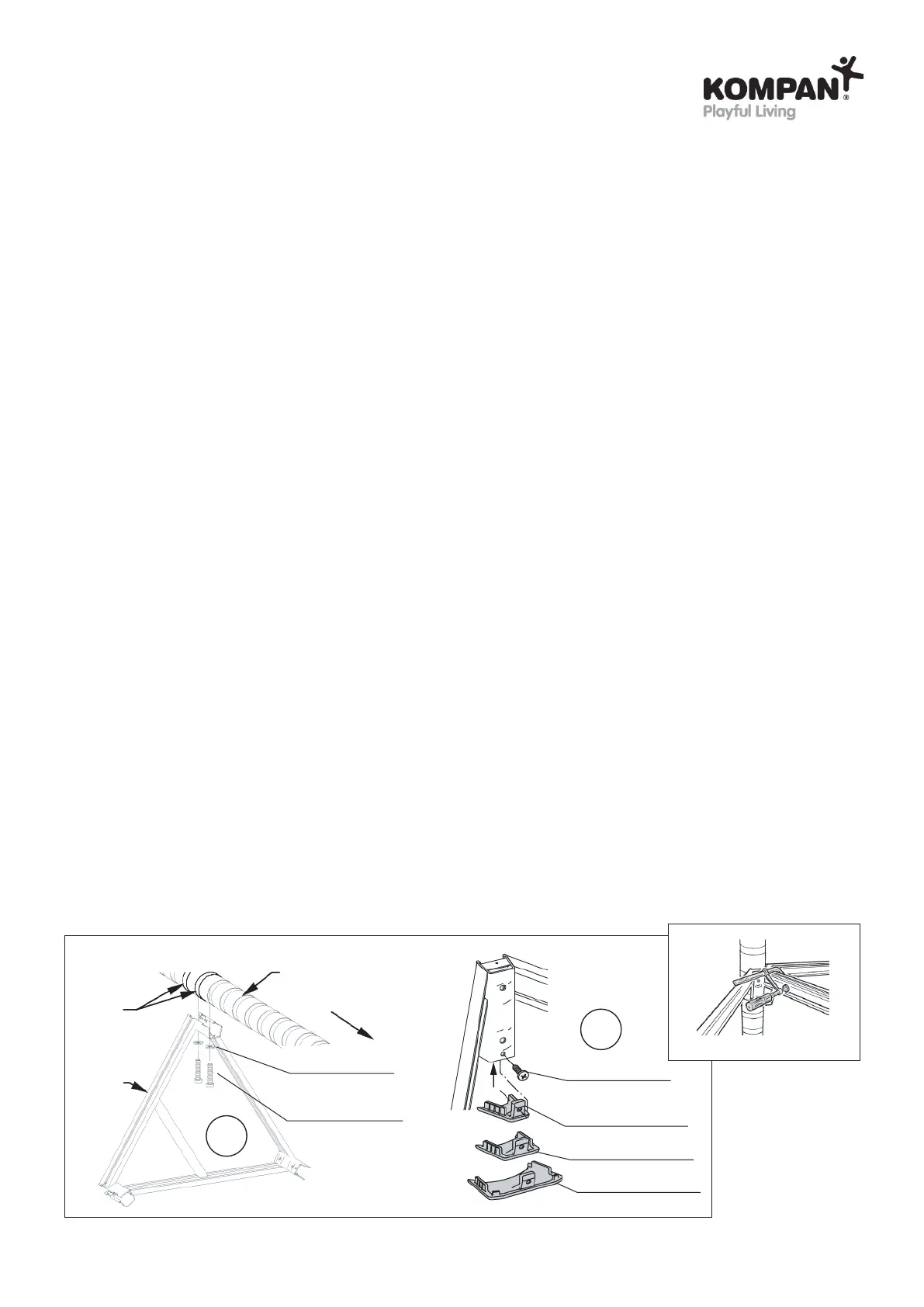

ill. 12
M8x40
210000408040
Post
Strap
Footing
1
Floor
frame
ill. 13
M8x16
321301008016
