KOMPAN PLAY360 - Assembly order for tall FUNKY ELEMENTS structures

PLAY360
Copyright©KOMPAN A/S
V00050GB 20140814 RikBon/PetrJu
8/19
1
2
3
M8x40
210100408040
PT 6x14
320600506014
A400503-06
ill. 14
1
2
3
4
5
Assembly order (continued)

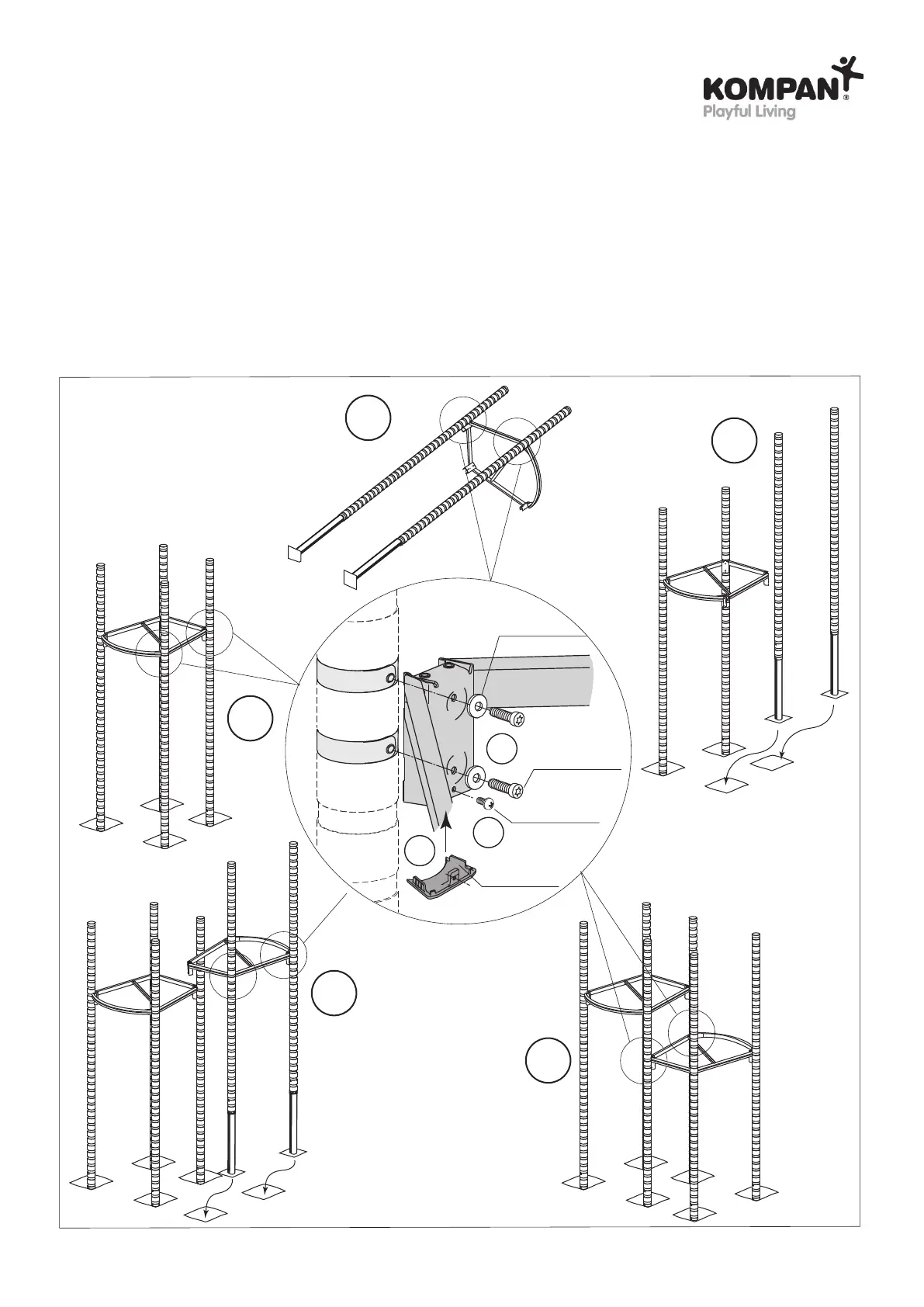

Assembly order for tall FUNKY ELEMENTS structures
- First attach the two tallest posts to the floor frame in the longitudinal direction.
Then raise the assembled unit to an upright position and prop it up. Attach the next two posts to
the floor frame.
If the structure includes several floor frames, posts are now assembled with the adjacent floor frame,
and the unit is then raised to an upright position and assembled as described above.
Please note: Local regulations concerning this type of work should be observed.
M8x16
321301008016
