Assembly order (continued)
- Repeat the steps above until all posts are attached to the floor frame. Make sure that all straps
remain in their correct positions on the posts.
- The assembled unit of posts and floor frame may be picked up and placed into the correct footing
holes, or, in case of surface installation, in the correct position. This unit is the starting point of the
following assembly.
Please note: Tighten all bolts in the structure when all floor frames are installed.

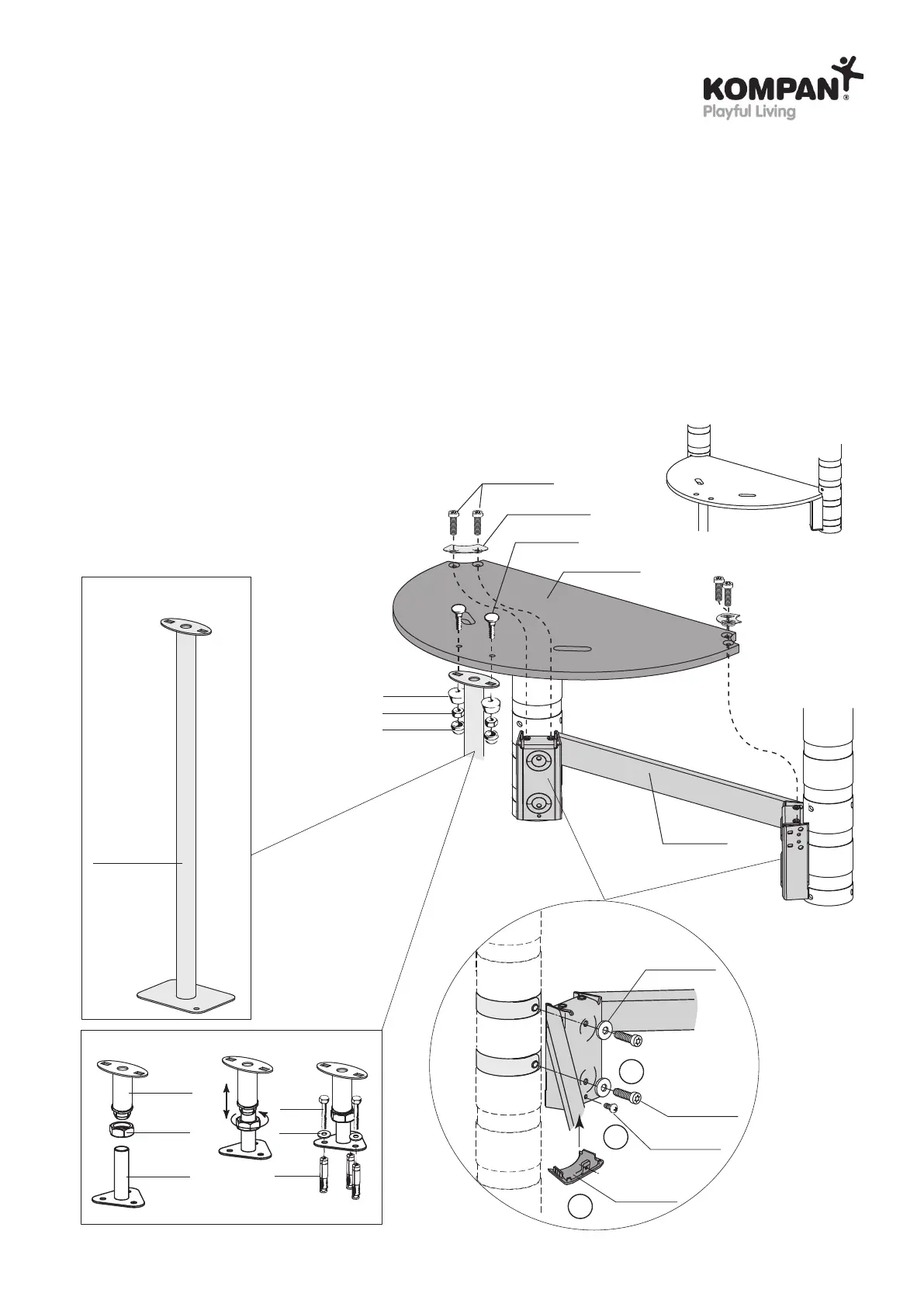

Installing floor step foundation (see ill. 15 ):
The lowest floor (400 mm) will often be the floor step.
In this case foundation for surface installation or for
in-ground installation is added.
Surface installation
In-ground installation
A209029-99
A209025-60
A209026-51
400315
10x65 MB
210065
702530
A400783-51
A700703-51
M8 x 30 (black)
210100408030
A400468-52 (90
o
)
400010-A2
A10086-18
A10085-18
10x35 BB
110035-A2
B400144-0406
1
2
3
M8x40
210100408040
PT 6x14
320600506014
A400503-06
M8x16
321301008016
