KOMPAN PLAY360 - Installing floors to frames

PLAY360
Copyright©KOMPAN A/S
V00050GB 20140814 RikBon/PetrJu
10/19
Assembly order (continued)
Installing floors to frames
- Place the floor onto the floor frame.
- Install the floor cover that fits the size of the floor corner.
- Please note that threaded bushings are already installed in the upper part of the floor frame. The 8 mm
bolts are to be installed either in these, see ill. 16, or directly in the groove in the floorplate, see ill. 17.

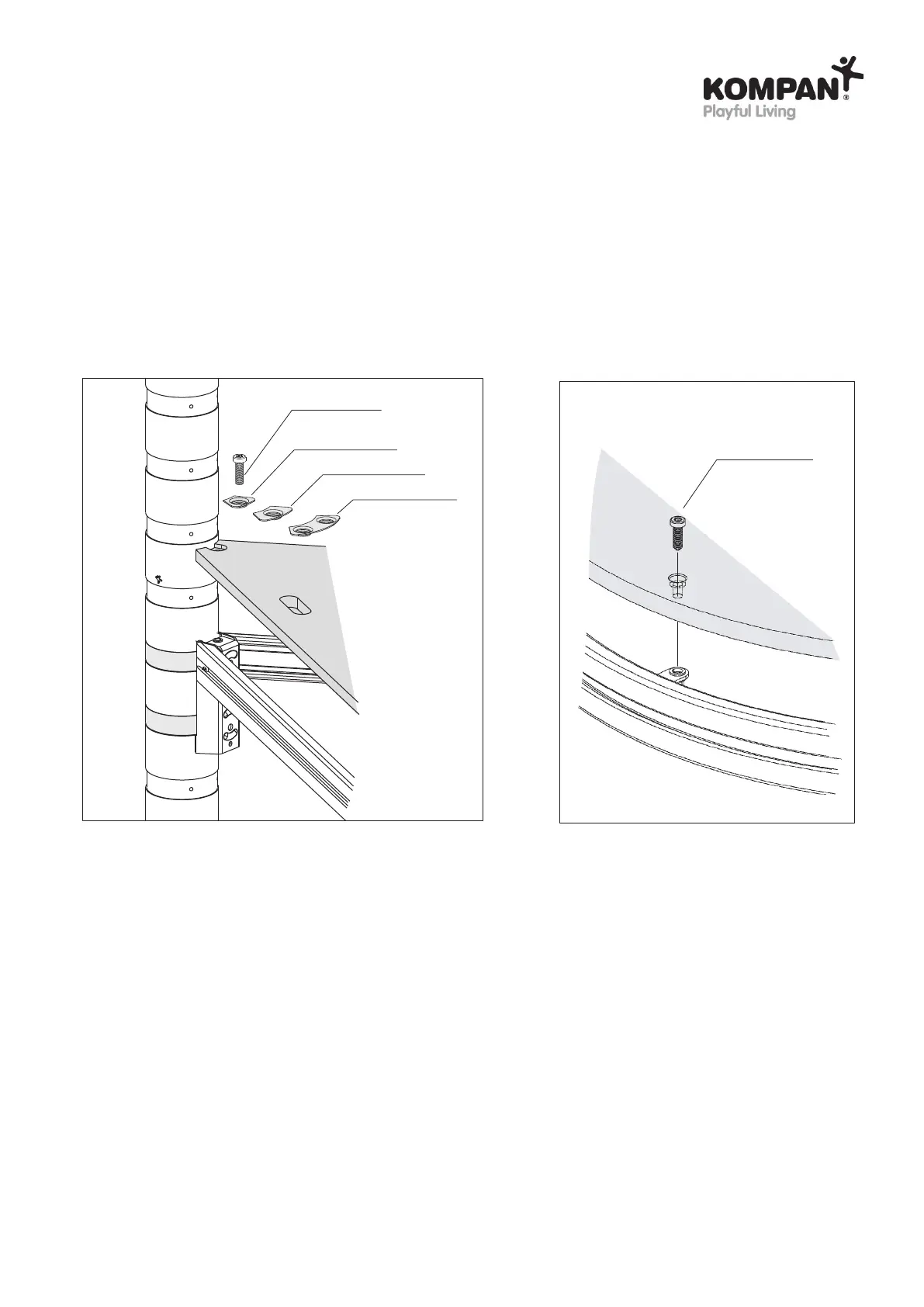

ill. 16 ill. 17
M8 x 30 (black)
210100408030
M8 x 30 (black)
210100408030
A400466-52 (45
o
)
A400467-52 (60
o
)
A400468-52 (90
o
)
