Assembly order (continued)
Installing infill panels
- The infill panel, which is to be installed between platforms at different levels, is crucial to the stability and
strength of the structure. Consequently it is of the utmost importance to install this component, using all
the specified fasteners and ensuring careful tightening.
- First insert T-track bolts at the top floor frame and lock them, using T-track locks. Then insert the infill
unit as shown in ill. 18 by use of the specified hardware. Finally insert T-track bolts at the bottom floor
frame - bolts should be put through the oblong hole at the bottom of the infill unit.
- Re-tighten all nuts and install Do-Nut caps.

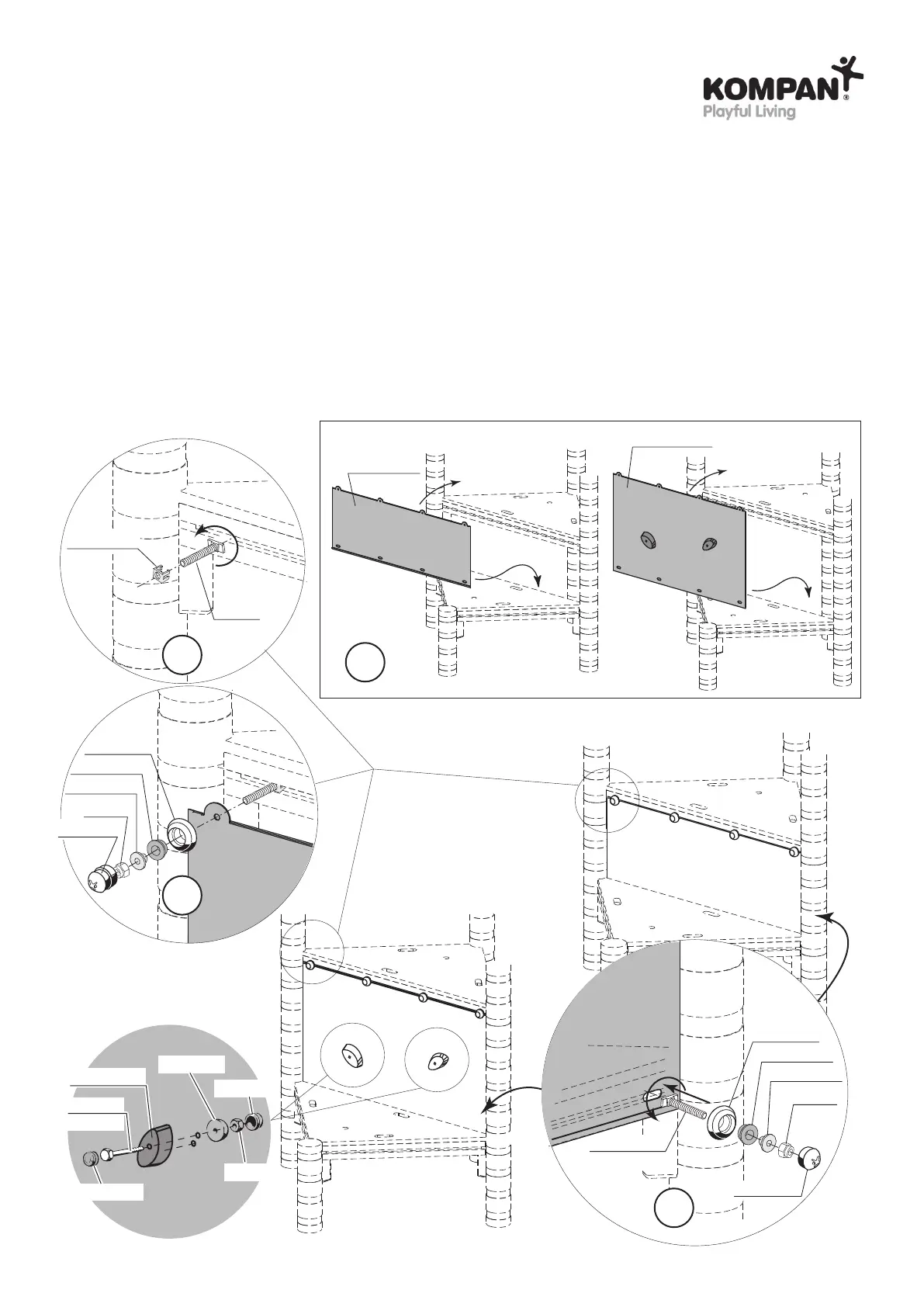

ill. 18
A400742-51
A400743-51
400210
A10078-13
A900270-06
10x30 MB
210030
A10078-13
A10080-06
M8x20
121000608020
A400526-06
A62105-06
400108
A400278-52
A62106-52
M8x20
121000608020
1
3
2
4
A62102-06
A62105-06
400108
A400278-52
A62106-52
A62102-06
