Final procedures (continued)

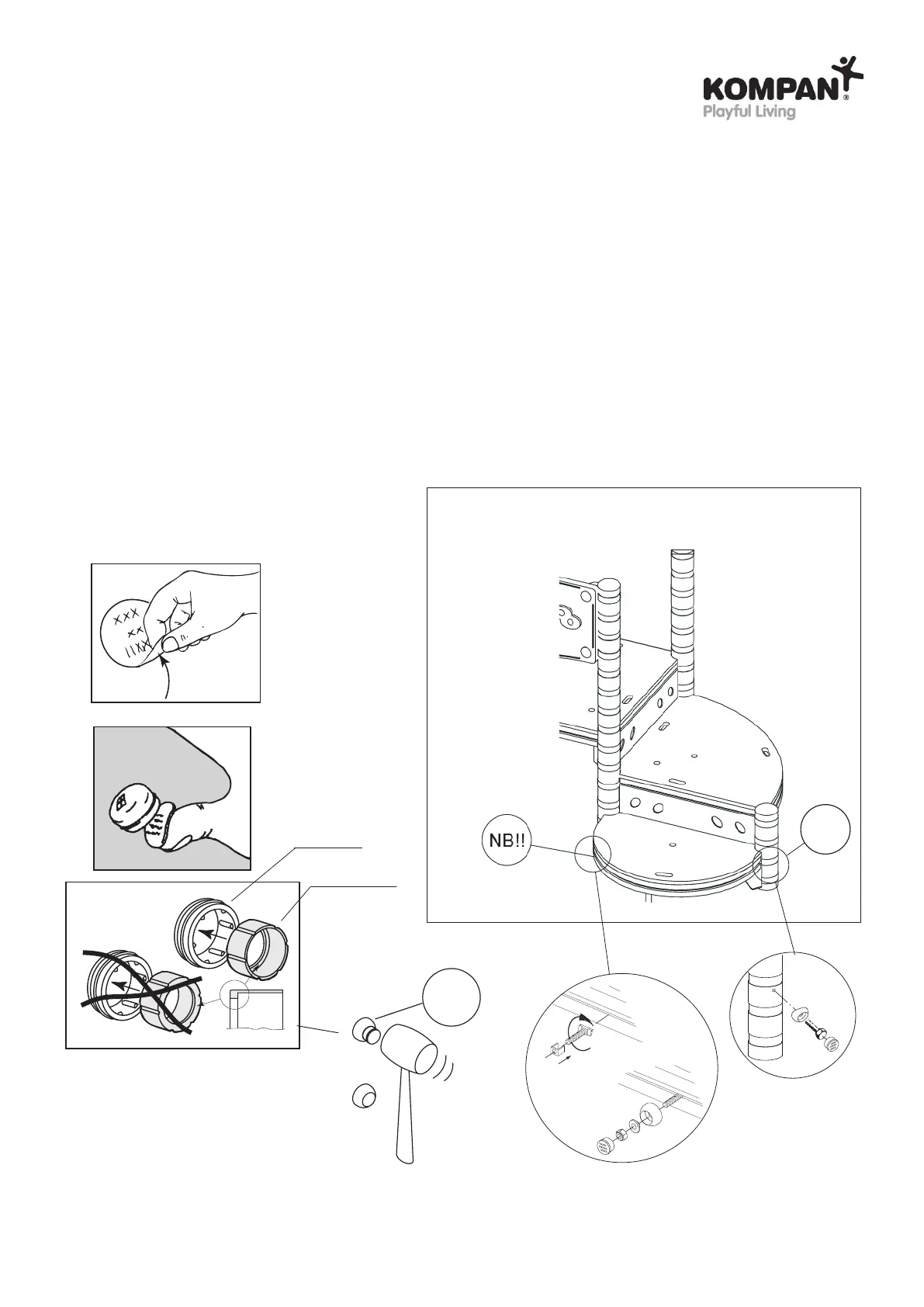

Do-Nut cap installation
Finish the installation by removing all labels and install all Do-Nut caps and protective covers.
Make sure they snap into place.
Two special marking Do-Nuts with transparent caps are supplied with the structure together with a sheet
of labels with addresses of the supplier of each country.
One of the caps is already provided with a label from the factory with information of the product ref.no. as
well as the week and year of production.
The other cap should be provided with the
address label of the specific country.
Both these Do-Nuts with labels should be placed
on the product according to the safety standards
EN 1176 (EU) and ASTM 1487 (USA).
Example of how to place a marking Do-Nut (NB!!) as shown in
the Isometric View at the back of the Instruction Manual.
IMPORTANT!
The playground must not be used until installation is complete and it has been inspected with protective
surfacing, and all concrete must be set.
