KOMPAN PLAY360 - Post assembly

PLAY360
Copyright©KOMPAN A/S
V00050GB 20140814 RikBon/PetrJu
4/19
50 cm
A400316-51
10x20
601020-A2
10x20
601020-A2
A400295-128
A400295-128
A400115-9906
911012

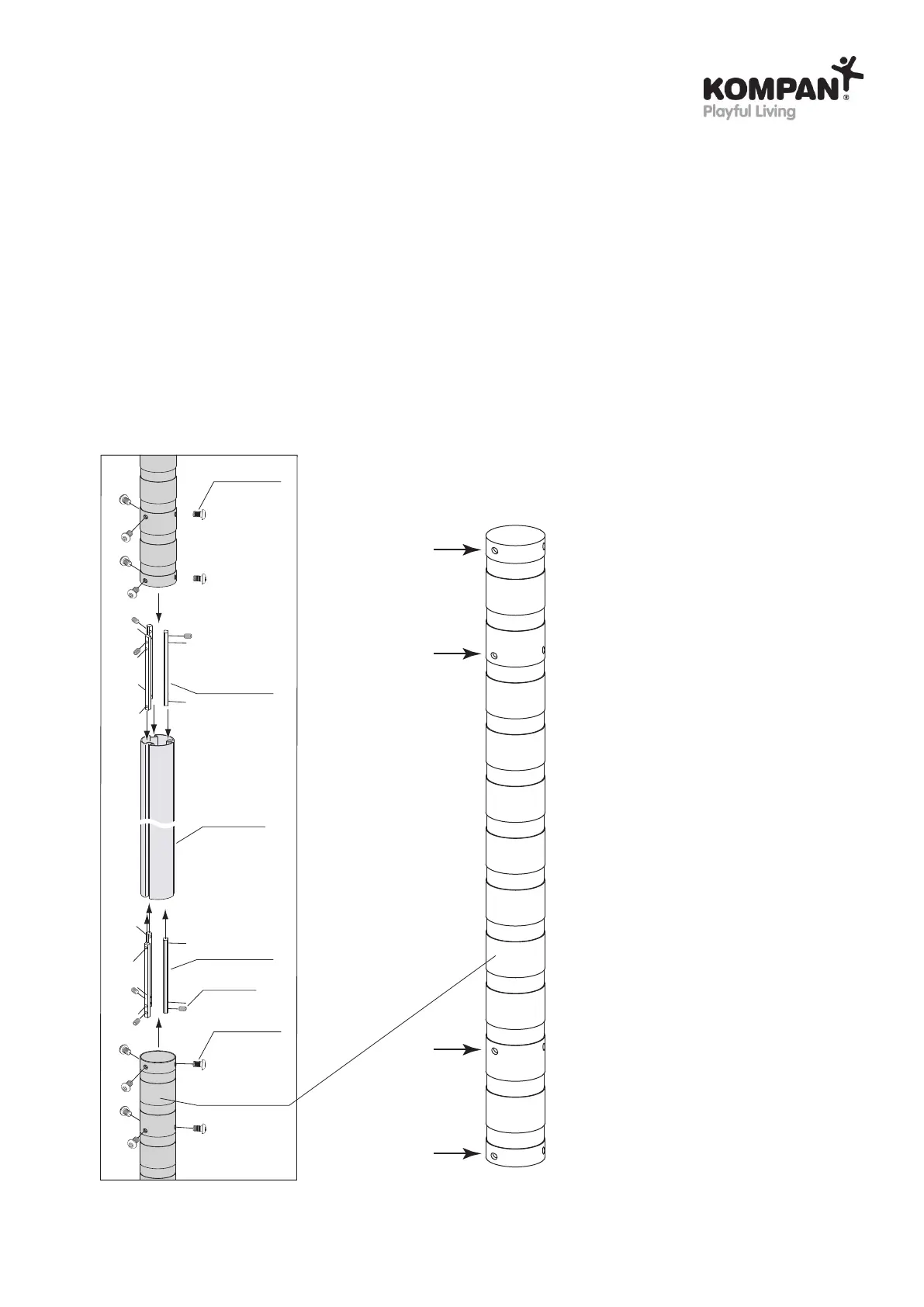

ill. 8
A400115-9906
Preparing the installation (continued)
Post assembly
When installing structures with platform heights of 240 cm or more, it is necessary to combine 2 posts into
one longer post. Use A400115-9906 as extension, which is provided with 6 holes with 12 mm diameter for
assembly of the footing A400xxx and the connector unit A400316-51.
The assembly is made by sliding the 6 wedges A400295-128 into the profile A400316-51.
Then insert the profile with wedges into the post extension A400115-9906 and fix the button
head screws 601020-A2.
Now slide this unit into the post at the opposite end and fix the button head screws 601020-A2 - see ill. 8.
