12 Instruction manual SMV 10 600B – 60 1500B Publ. no. 6196.082 1117, Version 02
Presentation of the machine

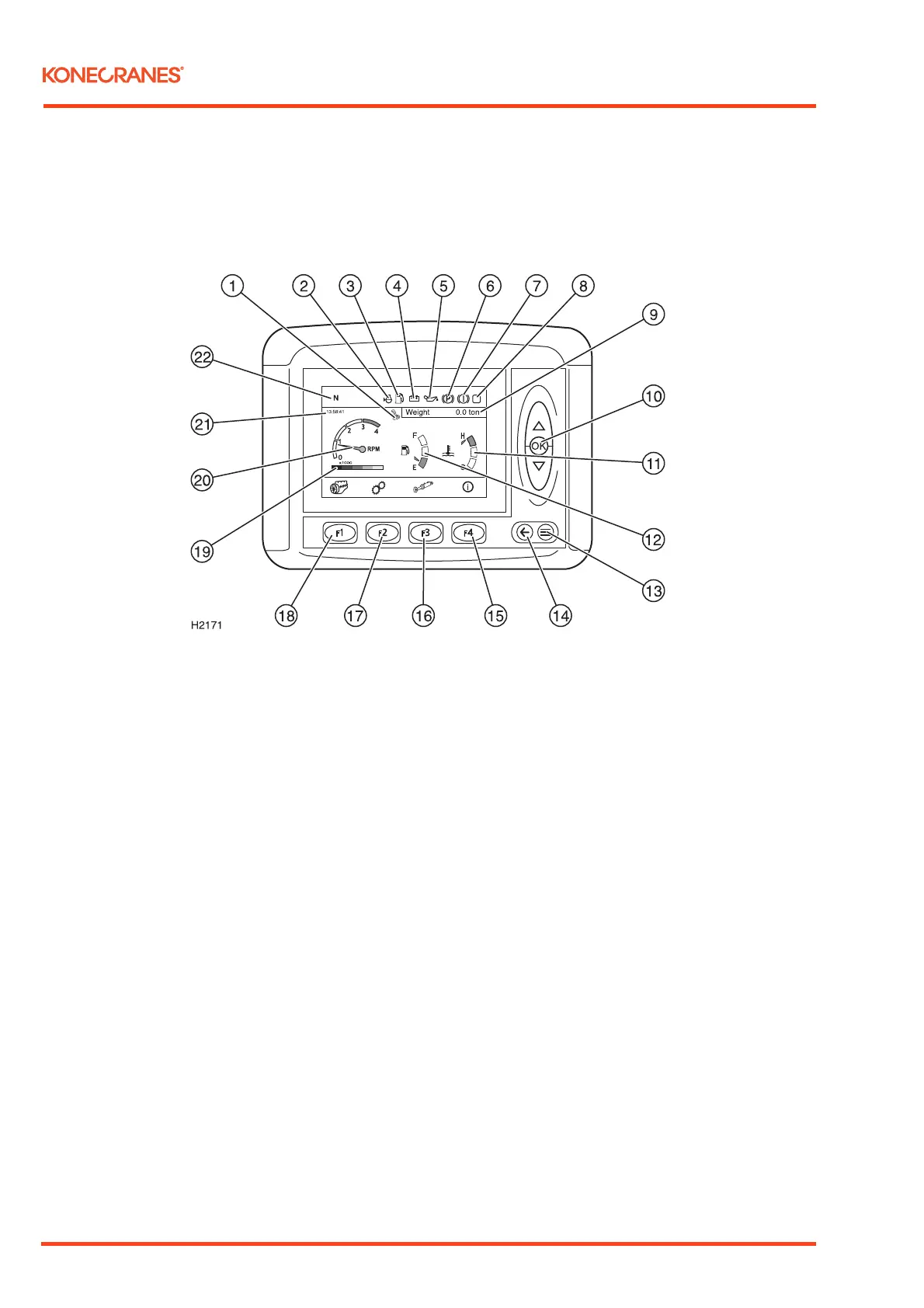

DESCRIPTION OF DRIVE MONITOR IQAN MD3
The function of the trip computer is to, by using information from
di
fferent sensors, analogue and digital signals, optimally control the
hydraulic system and drive line. The driver has a total overview of
the activities of the machine during operation.
1. Lever steering active (optional)
2. Low coolant level (optional)
3. Warning low fuel level
4. Low battery power
5. Low oil pressure engine
6. Parking brake activated
7. Low accumulator pressure, brakes
8. Indication twist look
9. Load weight (optional)
10. Confirms choice
11. Engine temperature
12. Fuel level
13. Adjustment and measure page
14. Previous page
15. Information page
16. Hydraulics page
17. Tranmission page
18. Engine page
19. Eco driving
20. Engine RPM
21. Clock
22. Gear position
