Instruction manual SMV 10 600B – 60 1500B Publ. no. 6196.082 1117, Version 02 89
Service and maintenance

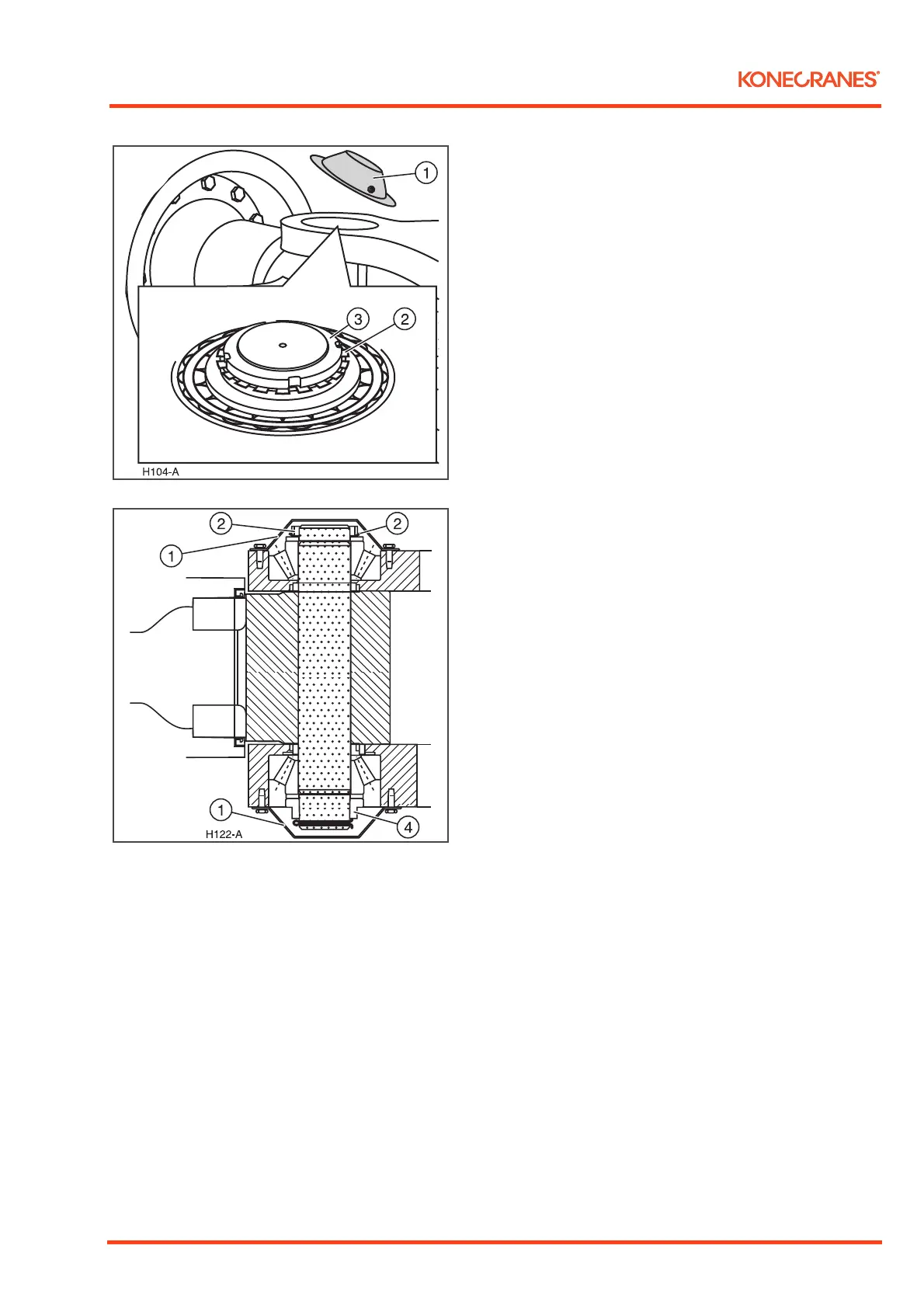

SPINDLE BEARING
• Disassemble the steering joint.
• Remove the covers (1). Inspect the grease.
• Fold the locking washer down (2).
• Loosen the bolt (3) a few turns.
• Ensure that the lower bolt (4) is tight,
the correct torque is
about 980 Nm.
• NO
TE! The nut (4) is not used for pre-tensioning the bearings.
• All bearing pre-tensioning is done with the upper bolt (3).
• Tighten the upper bolt (3) with about 245-294 Nm.
• Ensure that there is no play and that the spindle can be turned
easi
ly without any jarring noise or irregular resistance.
• Refit the the covers (1).
