P/N 20220612D Page 3 of 3 30.06.05
3. Bring up the Standby mode to show the rudder angle.
4. Use a flat screwdriver in the slot and adjust the rudder angle to zero degrees on the
display.
5. Secure the transmission lever to the shaft and proceed with the normal installation
setup as per the autopilot manual.
Note!
If the autopilot presents you with a Rudder Feedback Alarm after turn on, proceed as
follows:
• Turn the autopilot off. Use a flat screwdriver in the slot and turn the shaft 180°.
• Proceed from paragraph 3 above.
Spare Parts
22011290 RF45X Rudder Feedback Unit
22011217 Mounting kit
22011258 RF45X PCB Ass’y with potentiometer (10K)
22011365 Potentiometer (10K) with wires
22011183 RF45 Transmission Link
44132322 Transmission rod M8x30 (2)
22504054 Joint Nut M8
44157097 Ball Joint Socket
22011209 Ball Joint Pin
22504039 Transmission lever

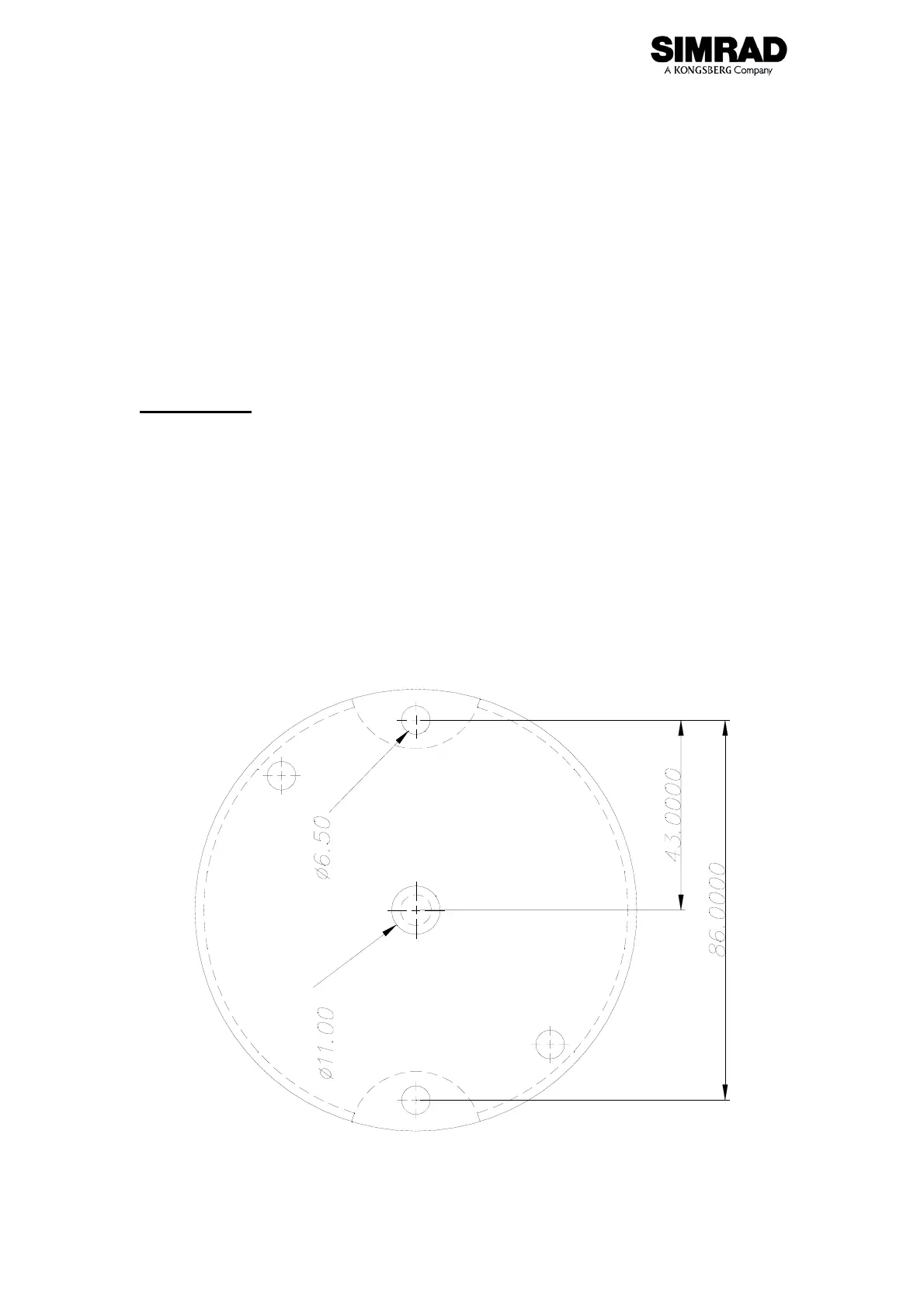

Figure 3 RF45X Template (Part no. 22011225)
