(6) Place a sheet of paper as large as the paper
size you are setting in the bottom of the tray.
Align the paper guide plate (front) with the end
of the sheet.
Gap between the sheet and the paper guide
plate (front): 1 mm or less
(7) Tighten the two front screws. Remove the
sheet and tighten the two rear screws. (Four
SEMS II screws)
<Only for changing the paper size to Letter >

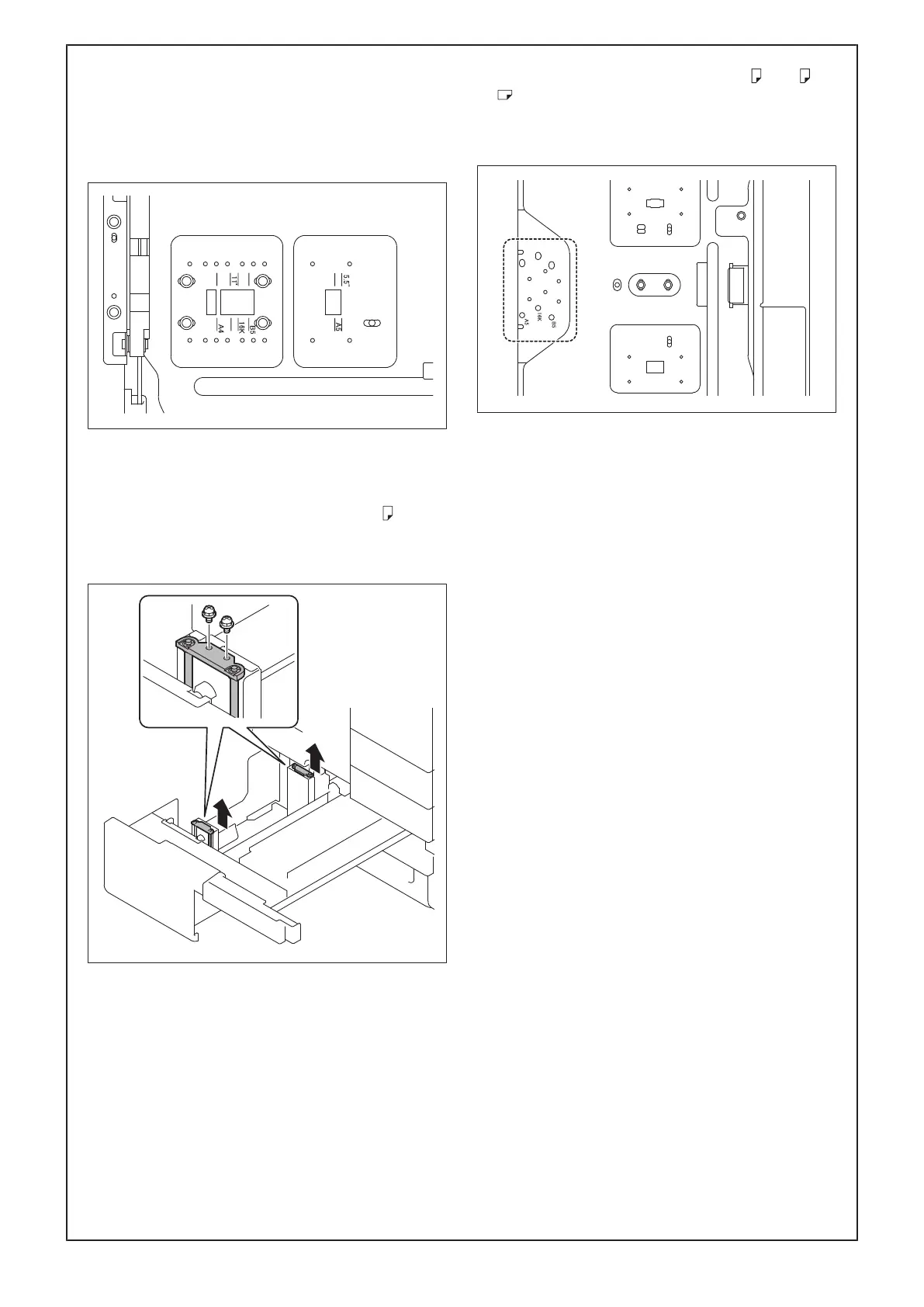

(8) Attach the end guide plate (front/rear) at the lo-
cation shown in the illustration. (Two screws for
each)
<Only for changing the paper size to B5 , 16K ,
A5 >
(9) Align the end guide plate (front) with the line
marked in the bottom of the tray. Attach the
end guide plate. (Two screws)
(10) Slide the tray 3 back in.
(11) Perform the same procedure for the tray 4.
(12) Touch “System 2.”
(13) Touch “LCT (Built-in) Size Settings.”
(14) Touch “Tray 3” and select the paper size that
was set for the tray 3.
(15) Touch “Tray 4” and select the paper size that
was set for the tray 4.
(16) Touch “END.”
20. Configuring other options
(1) If any of the following options are installed, re-
fer to the “Configuration procedures” of the in-
stallation manual for each option and configure
the option(s).
• Expanded Memory Unit EM-908
• Stamp Unit SP-501
• Fax Kit FK-514/FK-515
• Punch Kit PK-526/PK-524
• Upgrade Kit UK-221
• Large Capacity Unit LU-205/LU-303
• Local Interface Kit EK-609
• Security Kit SC-509
• Authentication Unit AU-201S/AU-102
• Working Table WT-519
• Clean Unit CU-102
• Network Fax
(2) Exit from the Service Mode and return to the
initial screen.
21. Restarting the machine
Open the power switch cover on the right side of the
main body, turn OFF the main power switch, then
turn it ON again after more than 10 seconds.
