E-20
22. Adjusting each option
If any of the following options are installed, adjust
each option as necessary. (Refer to the “Adjustment
procedures” of the installation manual for each op-
tion.)
• Large Capacity Unit LU-205/LU-303
• Finisher FS-540SD/FS-539SD
• Punch Kit PK-526/PK-524
• Post Inserter PI-507
• Z Folding Unit ZU-609
23. Connecting the network cable

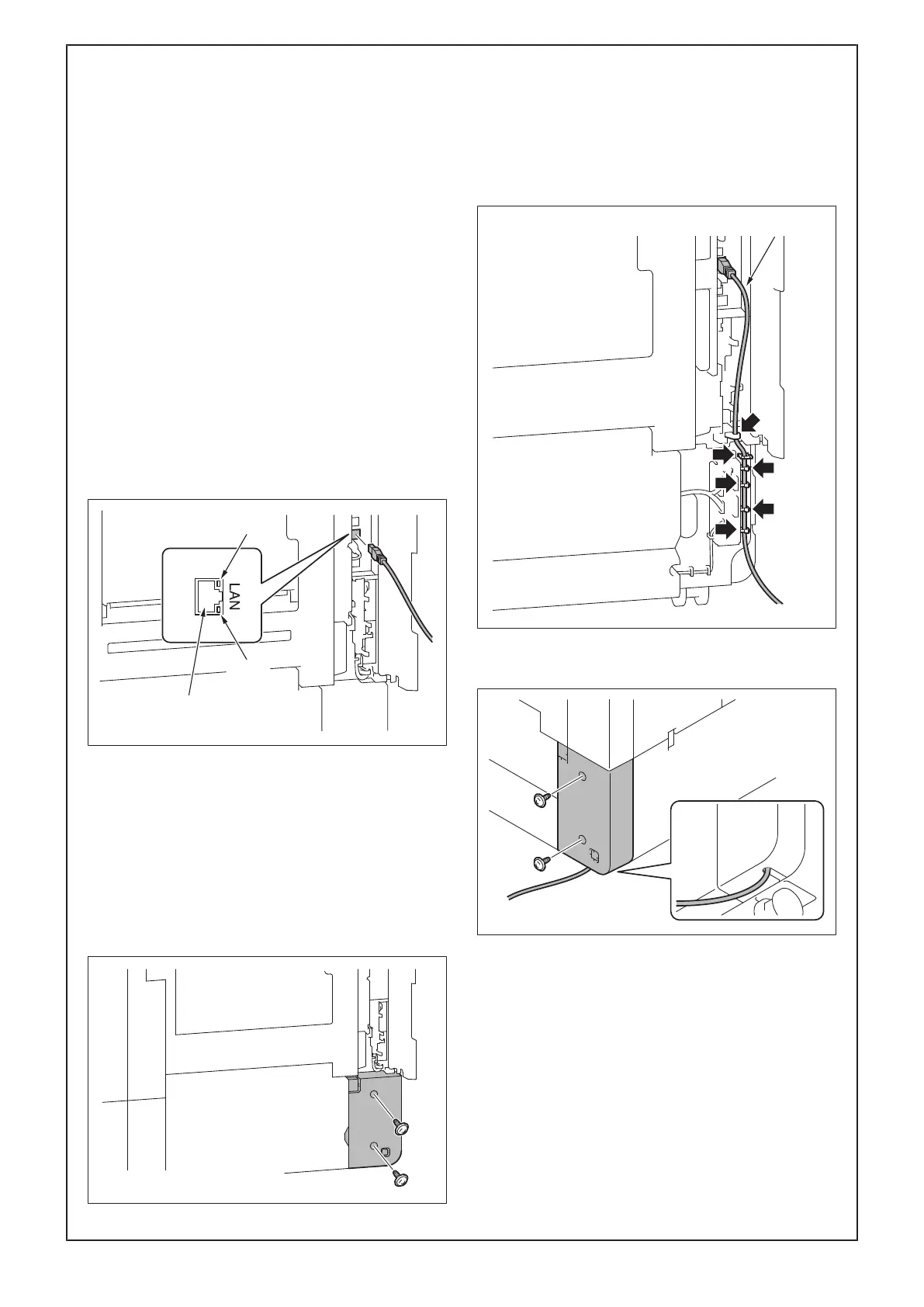

(1) Connect the main body and networking equip-
ment (HUB) using the network cable.
Note:
The following shows the recommended network
cables that correspond to each communication
speed.
• 10BaseT/100BaseTX: Category5
• 1000BaseT: Category5E, Category6
(2) Check LEDs for lighting conditions.
LED1:
Should light up steadily if the link network con-
nection has been made.
LED2:
Should blink according to the communications
status of the ACT network.
(3) Route the network cable.
a) Remove the rear right cover from the paper
feed cabinet. (Two screws)
b) Route the network cable through the harness
guide and five wire saddles.
Note:
Leave an appropriate amount of slack in the por-
tion of the cable between the plug and the har-
ness guide in a manner which does not interfere
with the opening and closing of the cover.
Leave an appropriate amount of slack.
c) Pass the cable through the notch and attach
the rear right cover. (Two screws)
