INSTALLATION INSTRUCTIONS
19744 Tablet PC stand holder
19744 »Biobased«

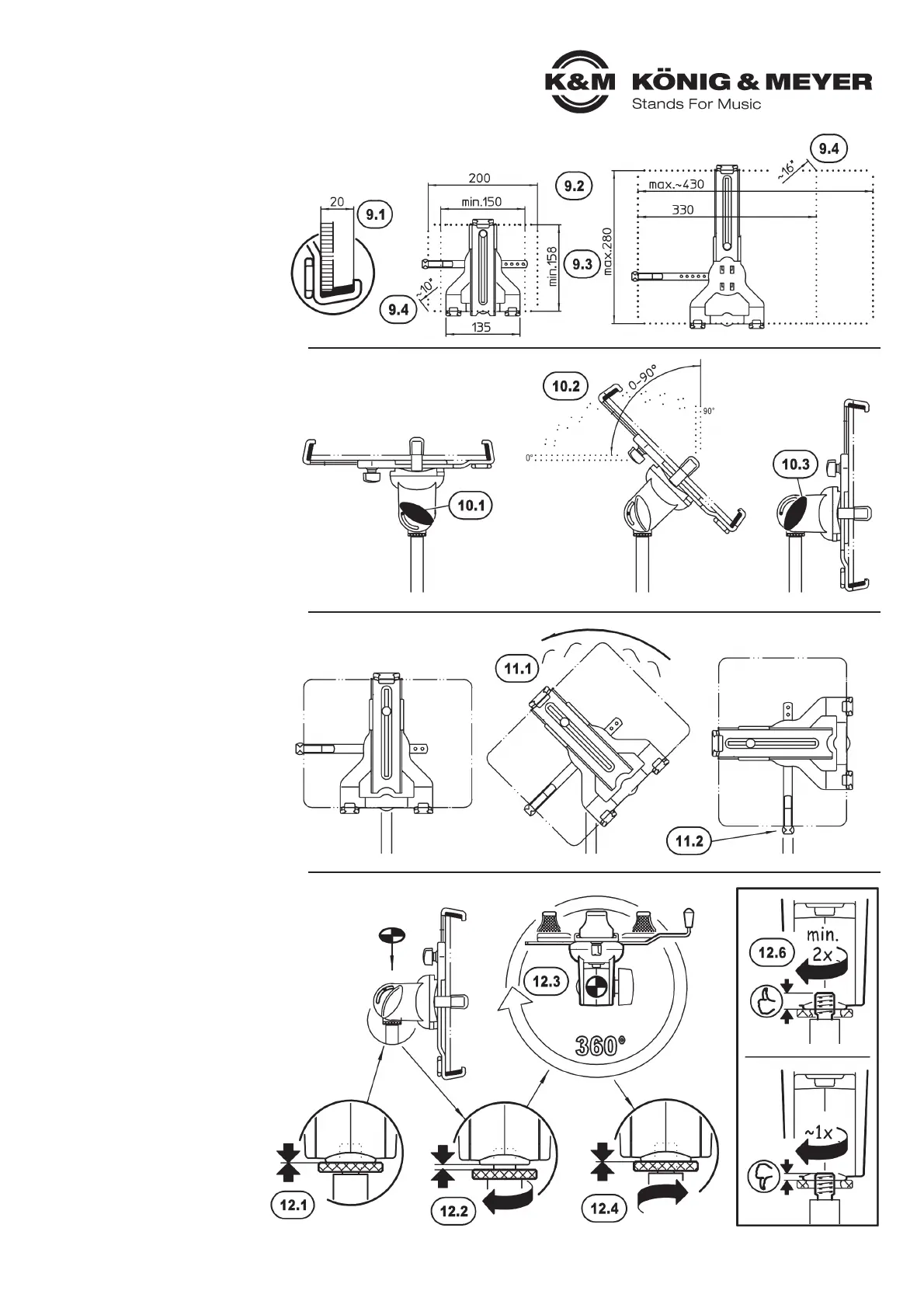

9. TABLET PC DIMENSIONS
10. TILT
9. TABLET PC DIMENSIONS
The clamping range includes:
9.1 - in depth up to 20 mm
9.2 - in width from 150 - 430 mm
9.3 - in height from 158 - 280 mm
9.4 - in diagonal approx. 10" - 16"
ADJUSTMENTS
11. FORMAT
12. DIRECTION
Landscape
Portrait
When adjusting
10. TILT
11. FORMAT
12. DIRECTION
the TABLET PC can remain in the holder.
10. TILT
The TABLET PC can be fixed in any position
between vertical and horizontal end position.
10.1 Hold Tablet and loosen wing nut,
10.2 tilt Tablet as desired and
10.3 retighten wing nut.
11. FORMAT
The Tablet PC holder has a 90° swivel
function.
11.1 Hold the tablet and turn it to lands-
11.1 cape or portrait mode - or position
11.1 at an angle!
11.1 Invisible stops in the swivel joint
11.1 limit the rotation
11.2 NOTE:
11.2 Install guard arm c so that the stop
11.2 is at the bottom when the tablet is
11.2 aligned vertically; if necessary, the
11.2 guard arm must be inserted into the
11.2 swivel joint rotated by 180°
11.2 (see Chapter 4)
12. DIRECTION
12.1 Initial position:
12.1 The knurled disc and the swivel joint of
12.1 the cradle are clamped together
12.2 First release the tension by unscrewing
12.2 the knurled disc
12.3 Turn the Tablet PC stand holder in
12.3 in the desired direction
12.4 Tighten knurled disc and the swivel
12.4 joint together again
ALTERNATIVE:
12.5 Change the direction of the tablet by
12.5 repositioning the complete stand
12.5 (without fig.)
NOTE:
12.6 For safety reasons, the swivel joint
12.6 must always be mounted with at
12.6 least two turns on the threaded
12.6 bolt of the stand.
12.6 See also Chapter 2 of the
12.6 instructions
