Material
Swivel joint, handles: Polyamid (PA)
Tablet cradle: Bio-based plastic
Support arm, guard arm, screw connections: steel, brass
Clamp: Aluminum profile
Caps, foam rubbers, rubber washers: TPE, EPDM, TPU
Load capacity Tablet PCs (check dimensions)
Dimensions
for Tablets ~10" - 16"
width 150-330/430 mm, height 158-280 mm, depth: 20 mm
Connection thread stand: BSW 3/8" resp. 5/8"
Cardboard 240 x 120 x 180 mm
Weight net: 0.4 kg, gross: 0.5 kg
TECHNICAL DATA
KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2, 97877 Wertheim, www.k-m.de
19744-000-55 Rev.05 03-80-502-00 3/21
19744 Tablet PC stand holder
19744 »Biobased«
- Careful handling maintains the function and safety of the installation
- Regularly check the proper condition of the components; defective parts must be
- replaced or repaired
- Ensure that the screw and plug connections are firmly seated before use
- Always remove the tablet PC first when carrying out maintenance and cleaning work
- For cleaning and maintenance, use a slightly damp cloth and a non-abrasive
- cleaning agent
MAINTENANCE
FAULT-FINDING (F) and REPAIR (R)
F: Tablet PC sits off-centre
F: B: Position Guard arm c accordingly (Chapter 4)
F: B: Tablet PC wider than 330 mm (9.2)
F: Tablet PC wobbles
F: B: Set slider tighter (7.6)
F: B: Clamping too loose, tighten if necessary (7.7)
F: B: Tablet PC is smaller than the min. dimension of 158 mm (9.3)
F: Tablet PC stand holder wobbles
F: B: Swivel joint a screwed too loosely to the stand
F: B: Check connection and tighten if necessary
F: B: (Chapter 2 and 12)
F: B: Not properly engaged? Place cradle b and engage it correctly
F: B: (Chapter 5)
F: Cradle b cannot be pulled off swivel joint a
F: B: First press lever, then unlock cradle a and pull off
F: B: (Chapter 6)

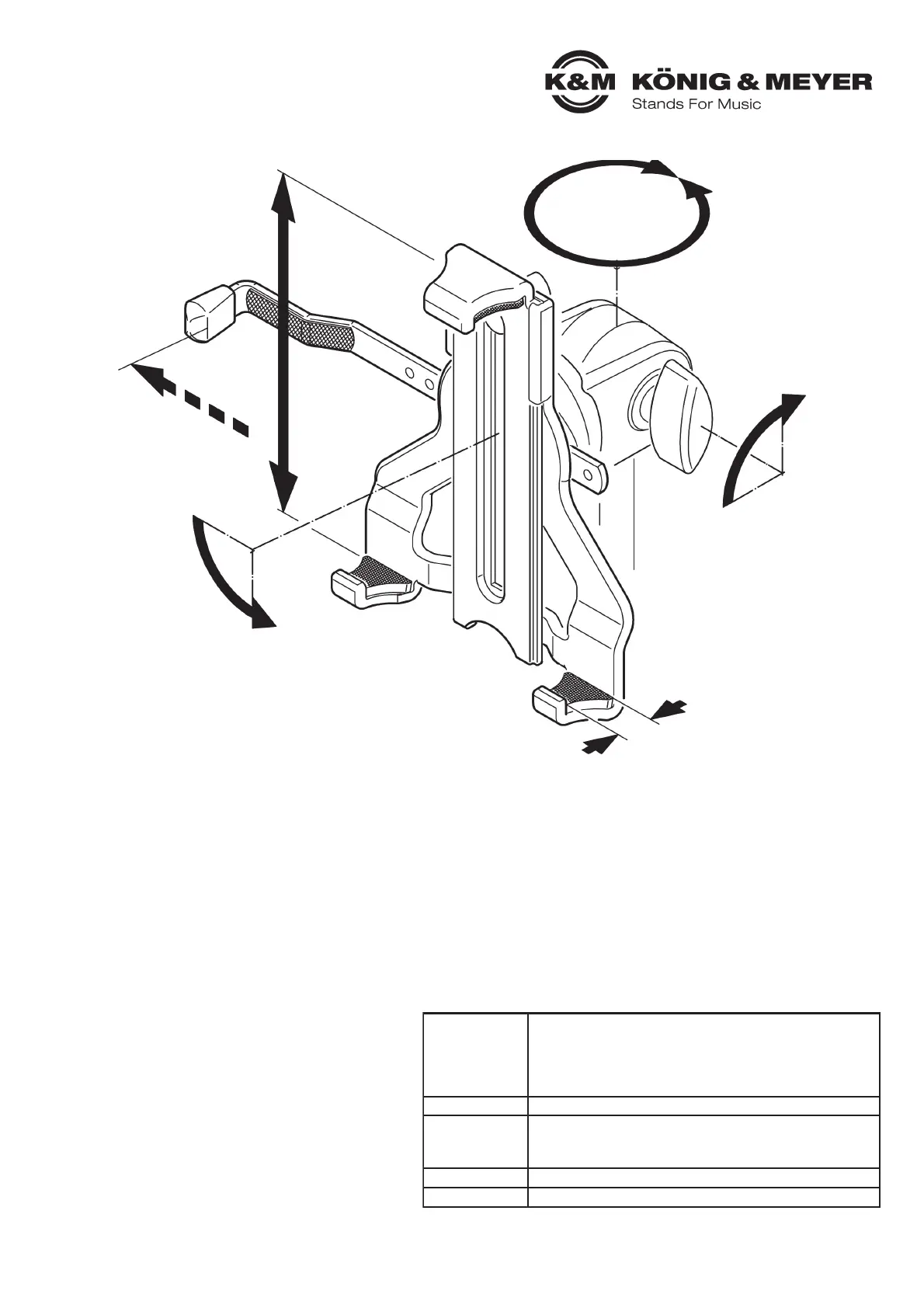

9.1
DEPTH
20 mm
9.2
WIDTH
min.150 mm
max. 330 (430) mm
9.3
HEIGHT
min.158 mm
max. 280 mm
infinitely
variable
10
TILT
from vertical
to horizontal:
90°- stepless
swiveling
11
FORMAT
horizontal - vertical
Portrait - Landscape
90°- stepless swivelling
12
DIRECTION
360° all around
