~ 5 ~

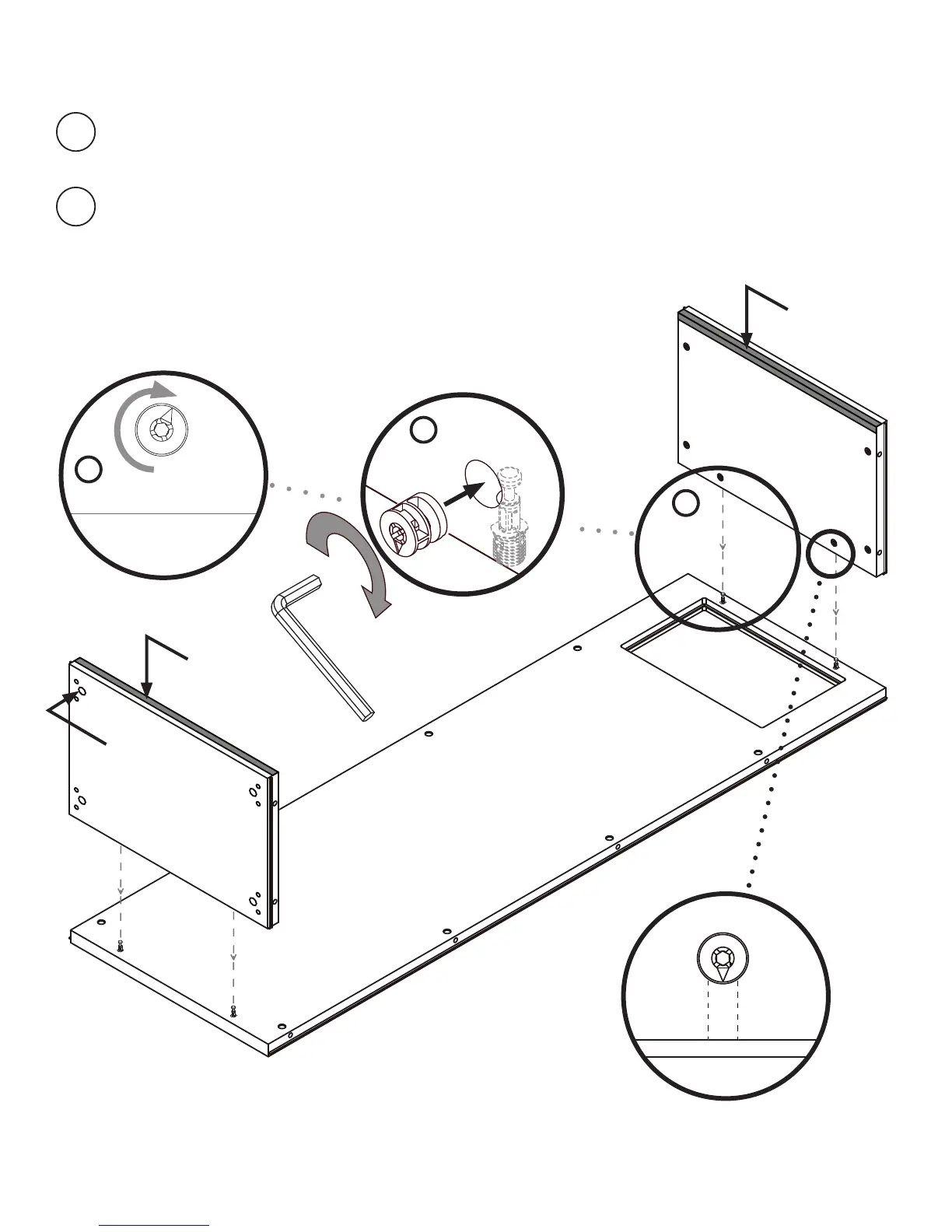

STEP 2 : CABINET ASSEMBLY
Attach Top and Bottom to Back by CAREFULLY aligning edge holes
over Cam Pins and gently push together to avoid damaging cam
pins. DO NOT BANG OR SLAP PANELS TOGETHER!!!
Insert Cam, push all the way in under panel level (may require
some force) and make sure Arrow points to outside edge, use
allen key provided or #3 phillips screwdriver.
Cam Arrow faces away from outside edge when tightened
1
CAM in LOCKED
POSITION
2
PANEL EDGE
2
2
1
BOTTOM
PANEL
METAL
METAL
To Next Page
