"Activate/deactivate" PERCEDOS
®
operating status:
If no fault is detected after commissioning and test sequence, the char-
ging procedure is permitted. For this, the device must be activated in
operating status.
• The PERCEDOS
®
is delivered inactive.
• The respective operating status, whether active or inactive, is per-
manently saved in the device even in case of power loss.
• For every startup or after the return of voltage note which operating
status the device assumes after fault-free test sequence.
• If the device was deactivated as its last operating status inactive,
the PERCEDOS
®
must be switched to active so that the vehicle can
be charged.

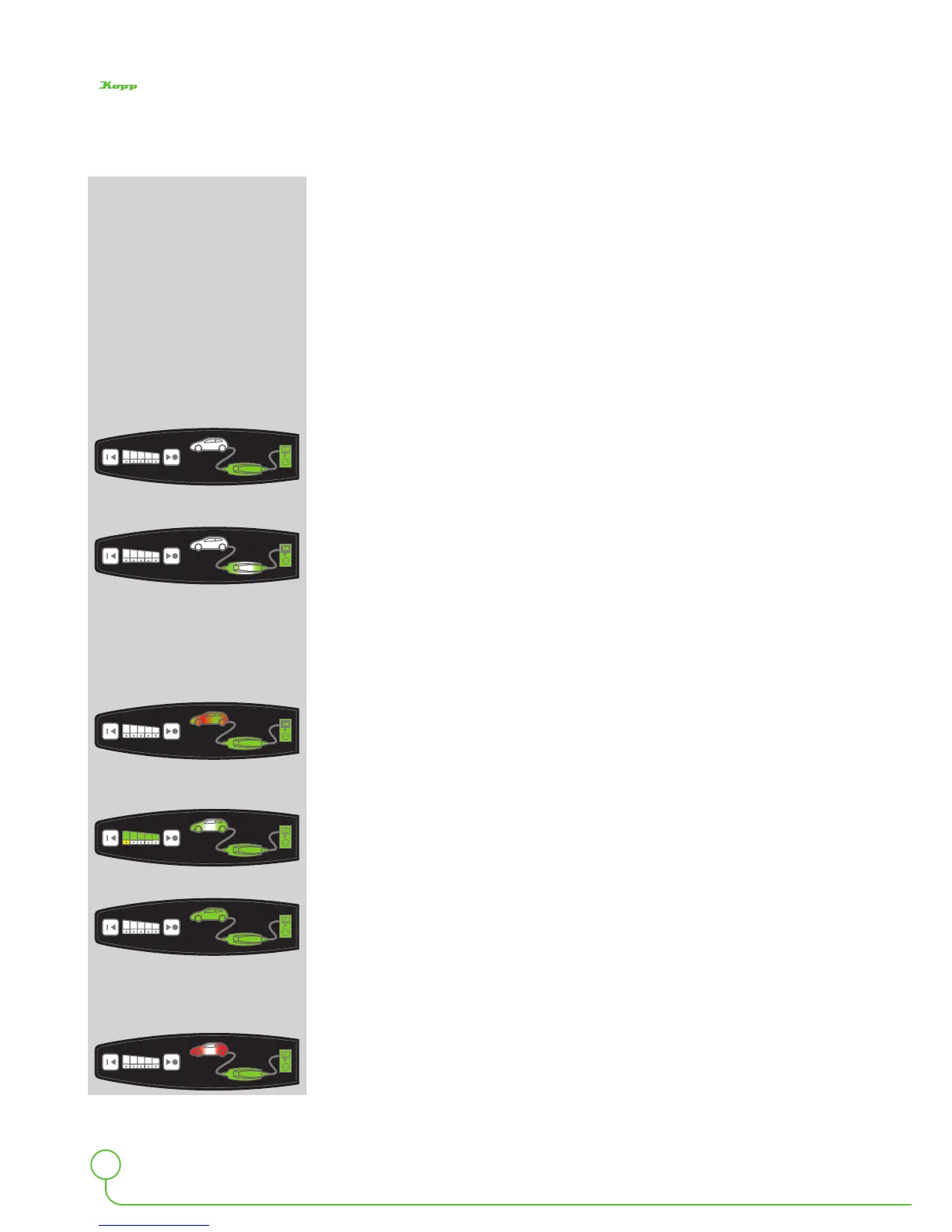

Activate PERCEDOS
®
:
• Press button (I).
• Charging procedure activated.
Display PERCEDOS
®
illuminates green.
Deactivate PERCEDOS
®
:
• Press button (0).
• The charging procedure is switched off or interrupted.
• Standby mode.
Display PERCEDOS
®
blinks green.
Battery charging procedure:
Only possible if the PERCEDOS
®
has not detected any fault and is acti-
vated.
Standby
• Vehicle connection has been detected.
• Charging procedure possible, but not yet switched on by the vehicle
electronics.
Current indicators are off.
Display vehicle illuminates red/green.
Charging procedure
• Charging procedure was switched on by the vehicle electronics.
• Vehicle battery is being charged.
Maximum possible current level illuminates yellow.
Momentary current level illuminates as a green bar.
Display vehicle blinks green.
Charging procedure concluded:
• Vehicle batteries are completely charged.
Current indicators are off.
Display vehicle illuminates green.
• Switch PERCEDOS
®
to inactive and remove the connections to the
vehicle and the mains connection.
• Vehicle operation can be resumed.
Charging procedure not possible:
• Communication error between the PERCEDOS
®
and the electrical vehicle.
• Ventilation required by the vehicle electronics is not present, not
activated, or faulty
Display vehicle blinks red.
Current indicators are off.
Instruction Manual PERCEDOS
®
