Instruction Manual PERCEDOS
®
Fault current circuit breaker:
A fault current circuit breaker has been integrated into the device, which
additionally protects the user against an electrical accident in case of a
system defect.
Automatic switch-off in case of detected differential fault current:
• In case of detected differential fault current IVn 30 mA, the PERCEDOS
®
initially switches off the charging procedure temporarily.

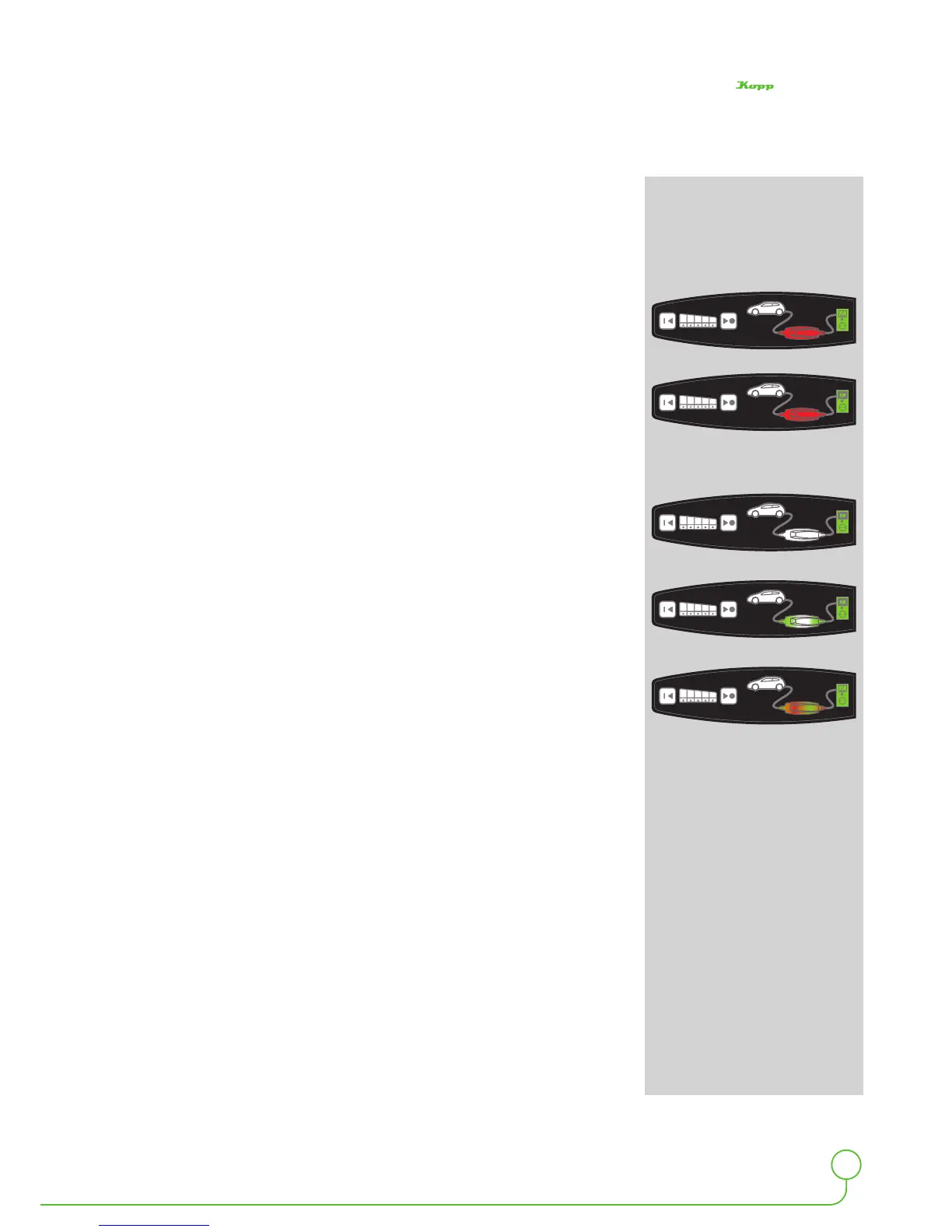

Display PERCEDOS
®
illuminates red.
Display vehicle and current indicators are off.
• The PERCEDOS
®
will reactivate the charging procedure up to three
times with a waiting period of 20 seconds.
• If the fault still exists, the charging procedure will no longer be allo-
wed after it is switched off for the fourth time (permanent switch-off).
Display PERCEDOS
®
illuminates red.
Display vehicle and current indicators are off.
Manual test of the differential fault current monitoring:
• Check the operating status of the PERCEDOS
®
and switch from
active to inactive, if necessary.
• Then, press the button (0) again for approx. 1 second.
• Test of the differential fault current monitoring is started.
Display PERCEDOS
®
goes off.
Possible results of the manual test of the differential fault current mo-
nitoring:
Fault current triggering is working properly:
Display PERCEDOS
®
blinks green.
• The charging procedure can begin or be continued.
• For this, switch the operating status back to active.
Fault current triggering is not working properly:
Display PERCEDOS
®
blinks green.
Recommendation:
• Do not switch on charging procedure.
• Have the PERCEDOS
®
checked immediately by an electrician!
