Features

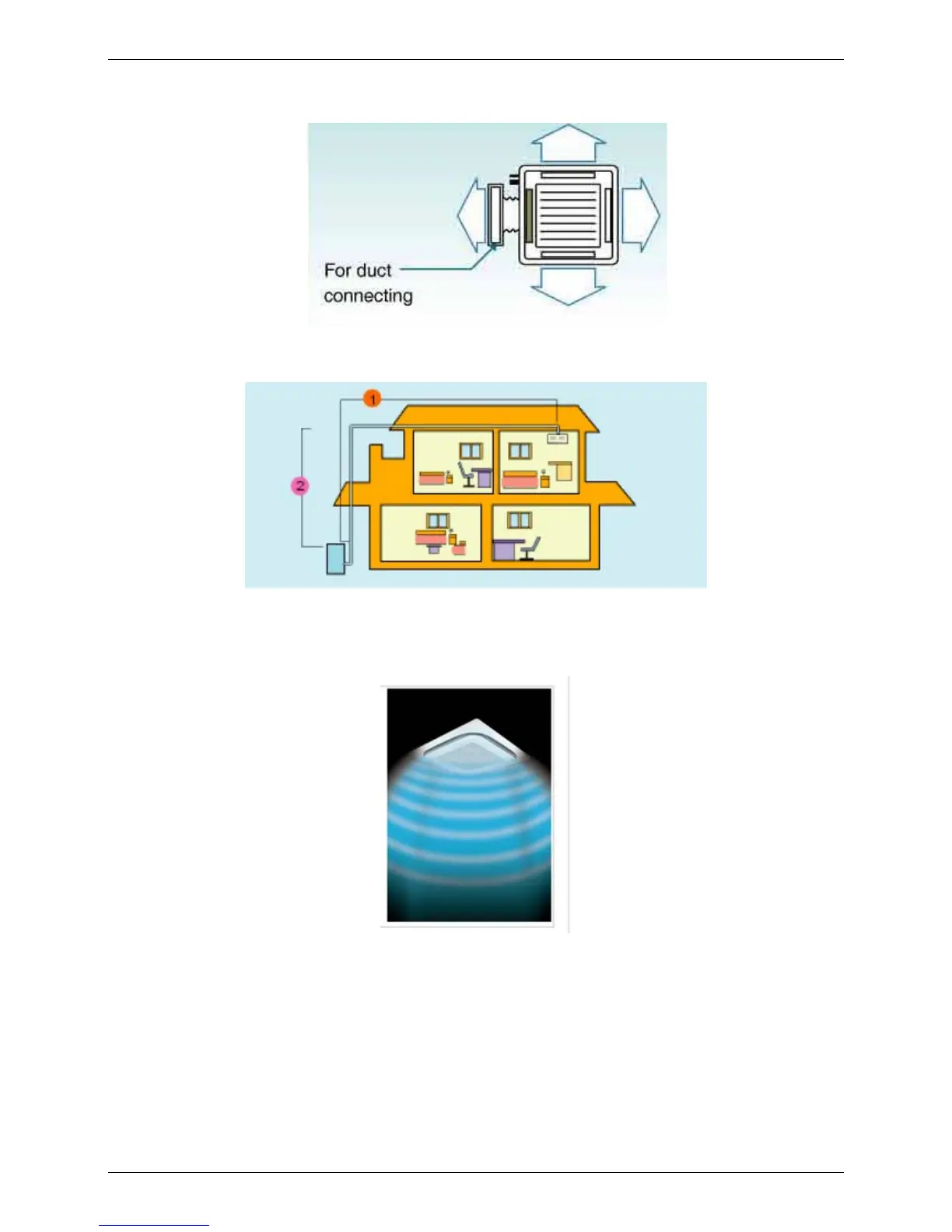

(15) Reserve spaces for air side-outlet, it is available to connect duct pipe hence air supplying from the four
sides to nearby small room..
(16) The connecting pipe and drop height is higher. Max. pipe length up to 50m（refer to ①）, and Max. drop
height up to 30m（refer to ②）.
(17) Optimal design, smaller Control Box, Space saving and convenient for wiring,
Using fire resistance galvanized steel for E-box material. Metal box make the control part more stable and
prevent damaging.
(18) New Panel optional: 360 degree air-outlet.
