Outdoor unit installation (Side Discharge Unit)
4. Outdoor unit installation (Side Discharge Unit)

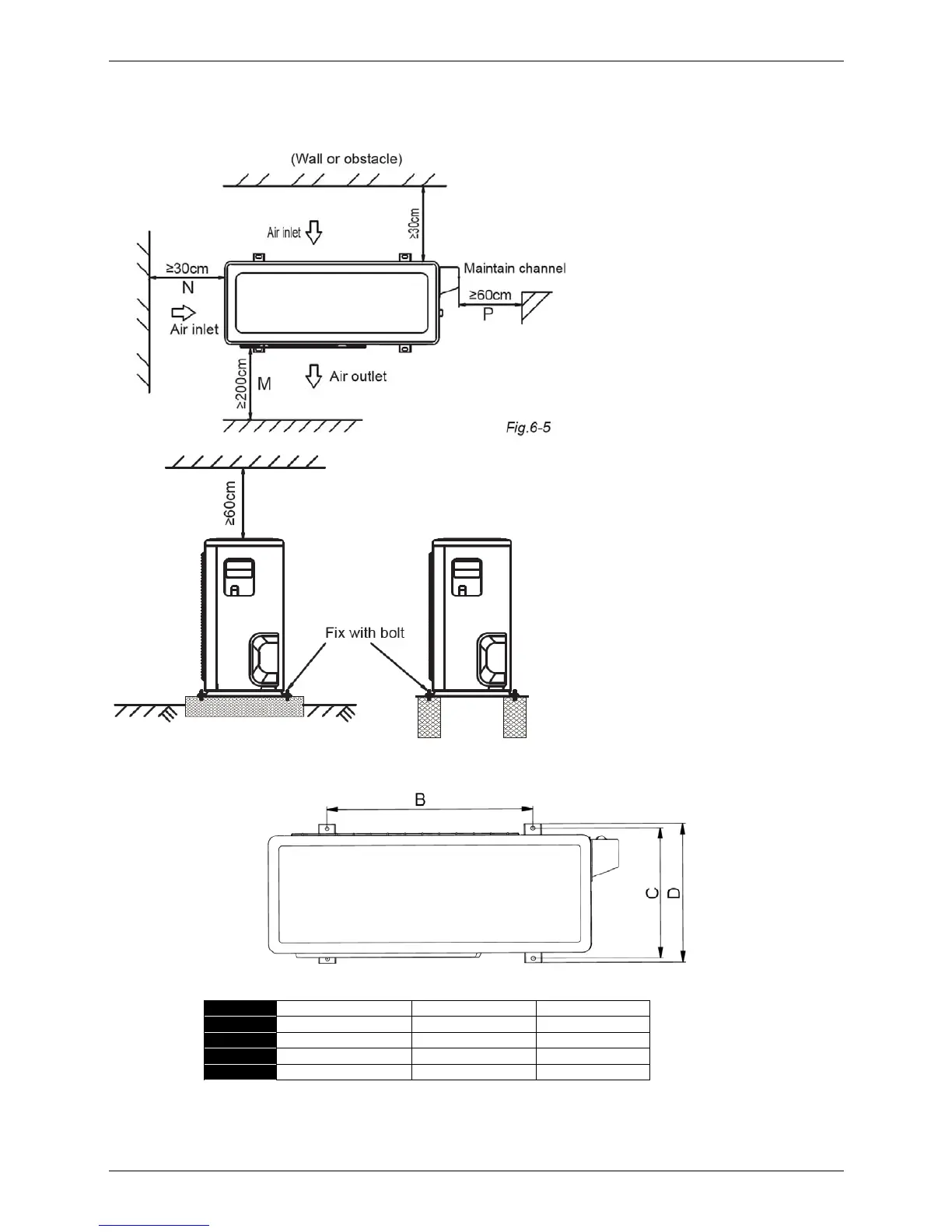

4.1 Service space for outdoor unit
4.2 Bolt pitch
Model B C D
24K 560 335 360
36K 624 366 396
48K 634 404 448
60K 634 404 448
4.3 Install the Unit
Since the gravity center of the unit is not at its physical center, so please be careful when lifting it with a sling.
Never hold the inlet of the outdoor unit to prevent it from deforming.
