Page 22
Version 01-2010
Operation
Compakt-Light
5. Power take-off engagement/disengagement
Warning!
Working devices are dangerous when switched on.
Make sure you keep a safe distance!
Engage the power take-off only when an accessory is attached.
Push the lever slowly downwards so that the attached device comes slowly up to speed.
Never reach into the crushing danger zone if parts can still move there.
The V-belt tensioning lever is used to drive the power take-off (see fig. 8 - A). The power take-
off reaches approx. 1,100 rpm at the maximum engine speed.
The power take-off V-belt is tensioned by pushing the power take-off lever forwards (the safety
stop lever/clutch lever must be in the start/stop position – fig. 8 - B) and depressing the safety
stop lever, and it then drives the power take-off. When released, the V-belt relaxes and the power
take-off V-belt pulley comes to a halt within 7 seconds.
If the attached device takes longer than 7 seconds to come to a halt, it is essential that you have
the device checked at the nearest
workshop, as otherwise the safety requirements are no
longer met.
If you wish to engage the power take-off, you must first place the Bowden cable shifter in the 0
position and then place the safety stop lever in the stop position. Push the power take-off tension-
ing lever forwards until it latches. Now by depressing the safety stop lever you activate the power
take-off and the traction drive at the same time.
To disengage the power take-off, proceed in the reverse order or unlatch the power take-off ten-
sioning lever while driving – see fig. 8 - D.
6. Engine
Tensioning lever
- power take-off shift -
power take-off OFF position
Safety stop lever
clutch / wheel drive
Tensioning lever
- power take-off shift -
power take-off ON position
Tensioning lever
- power take-off shift -
push forward to the stop
and then pull the safety
stop lever.

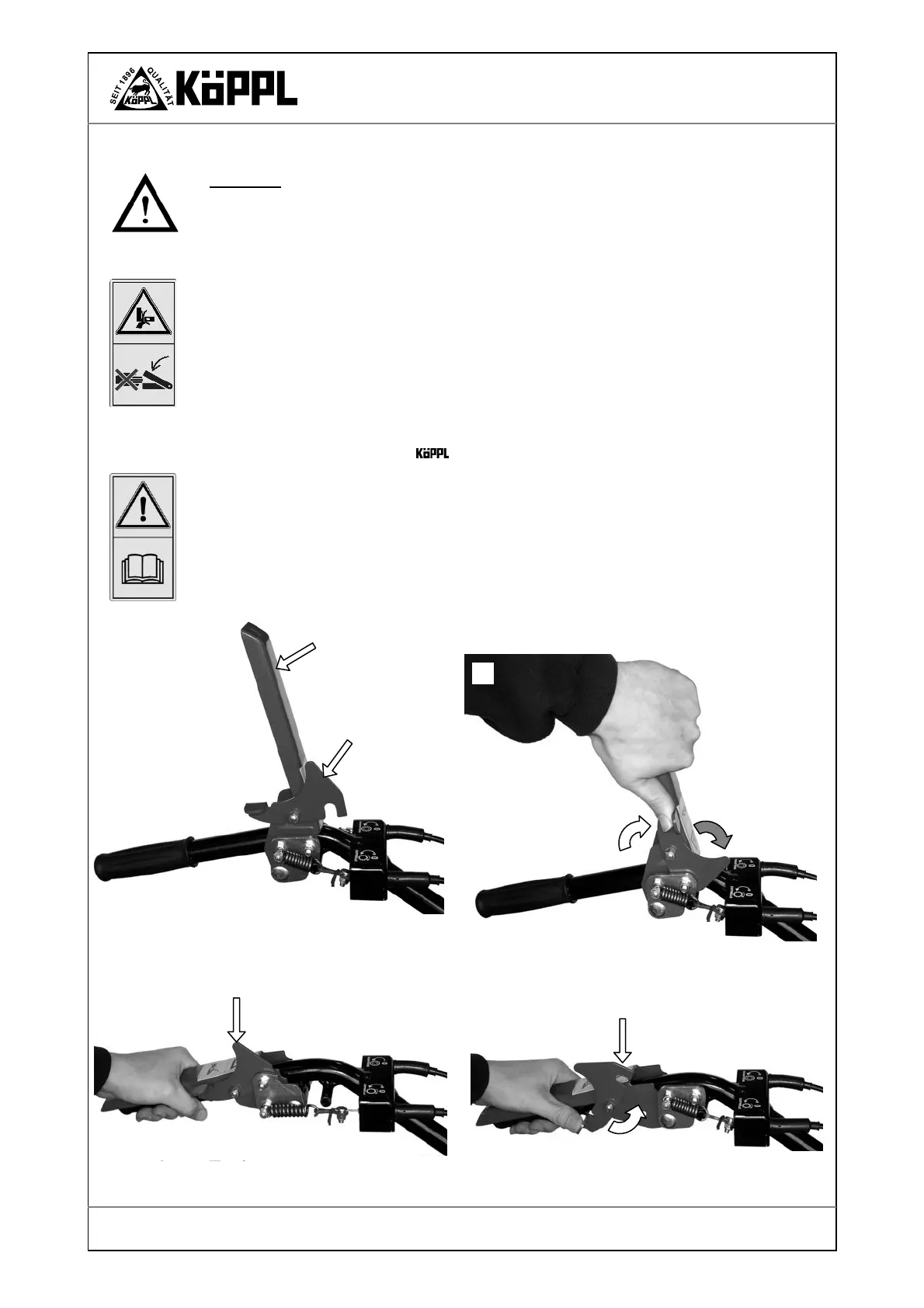

Fig. 8. Shift positions – power take-off shift.
Tensioning lever
- power take-off shift -
power take-off OFF position
-
also possible without switch-
ing off the traction drive
B
A
C
D
