11
Introduction
Before using the D3200
for the first time
Main featuresParts and their functionItems and functions in the
LCD screen
Basic operation
47 Value dial
Use this dial to edit the value of the selected parameter or to change the current time location.
When the Scrub page is displayed, rotating this
dial
will play back the track at the corresponding
speed (up to a maximum of double speed).

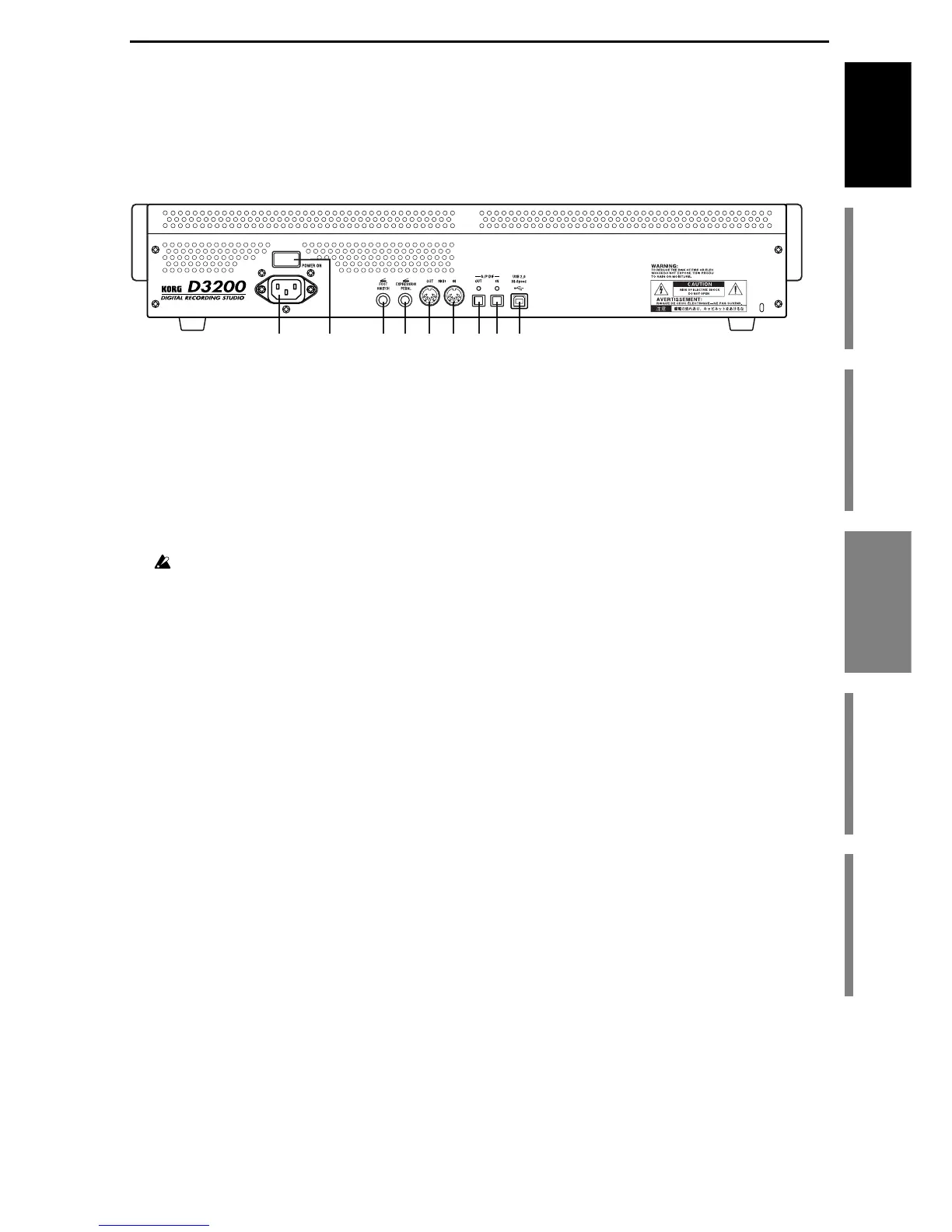

Rear panel
1 AC connector
Connect the power supply cable (included) here.
2 Main power switch (POWER ON)
This turns the main power on/off.
When the Main power switch is turned on, the D3200 will be in the standby mode. In the standby
mode, pressing the
ON
key will turn the D3200 on. While the D3200 is operating, hold the
ON
key
to access the
Power Off
dialog box and select
Yes
to shutdown the D3200 and return to the
standby mode. Then you can use the main power switch to turn the power off completely.
To turn off the power, you must first press the ON key to perform the shutdown operation. Never turn off the
Main power switch or disconnect the power cable until shutdown has been completed.
If you turn off the Main power switch or disconnect the power cable before shutdown has been completed, data
and user settings may be lost, and the hard disk may be damaged.
3 FOOT SW jack
When your hands are busy playing an instrument, you can use a foot switch to control basic oper-
ations of the D3200 recorder.
A foot switch can be used to start/stop the playback, start/end manual punch-in recording, regis-
ter a mark, or to record tap tempo. (
→
p.26, 63, 66, 119)
Connect a foot switch (optional PS-1) to this jack.
4 EXPRESSION PEDAL jack
You can use a pedal to control a specified parameter of an insert effect. You can control the param-
eter in real time while you play or record. (
→
p.57, 119)
Connect an expression pedal (separately sold option, EXP-2, XVP-10 etc.) to
this jack.
5 MIDI OUT connector
MIDI messages are transmitted from this connector. Use this when you wish to use the D3200 to
control an external device via MIDI. (
→
p.94, 119)
6 MIDI IN connector
MIDI messages are received at this connector. Use this when you wish to control the D3200 from an
external MIDI device. (
→
p.94, 119)
7 S/P DIF OUT jack
This is an optical-type S/P DIF format (IEC60958, EIAJ CP-1201) digital output jack (stereo).
Use an optical cable to connect this jack to the optical digital input of your DAT, MD or other
equipment.
This output provides the same audio as the
MASTER L/R
jacks, but as a digital signal at the same
sampling frequency and bit depth as the current song.
2
35 7941
6 8
Parts and their function
