Korg DSS-1 Service Manual

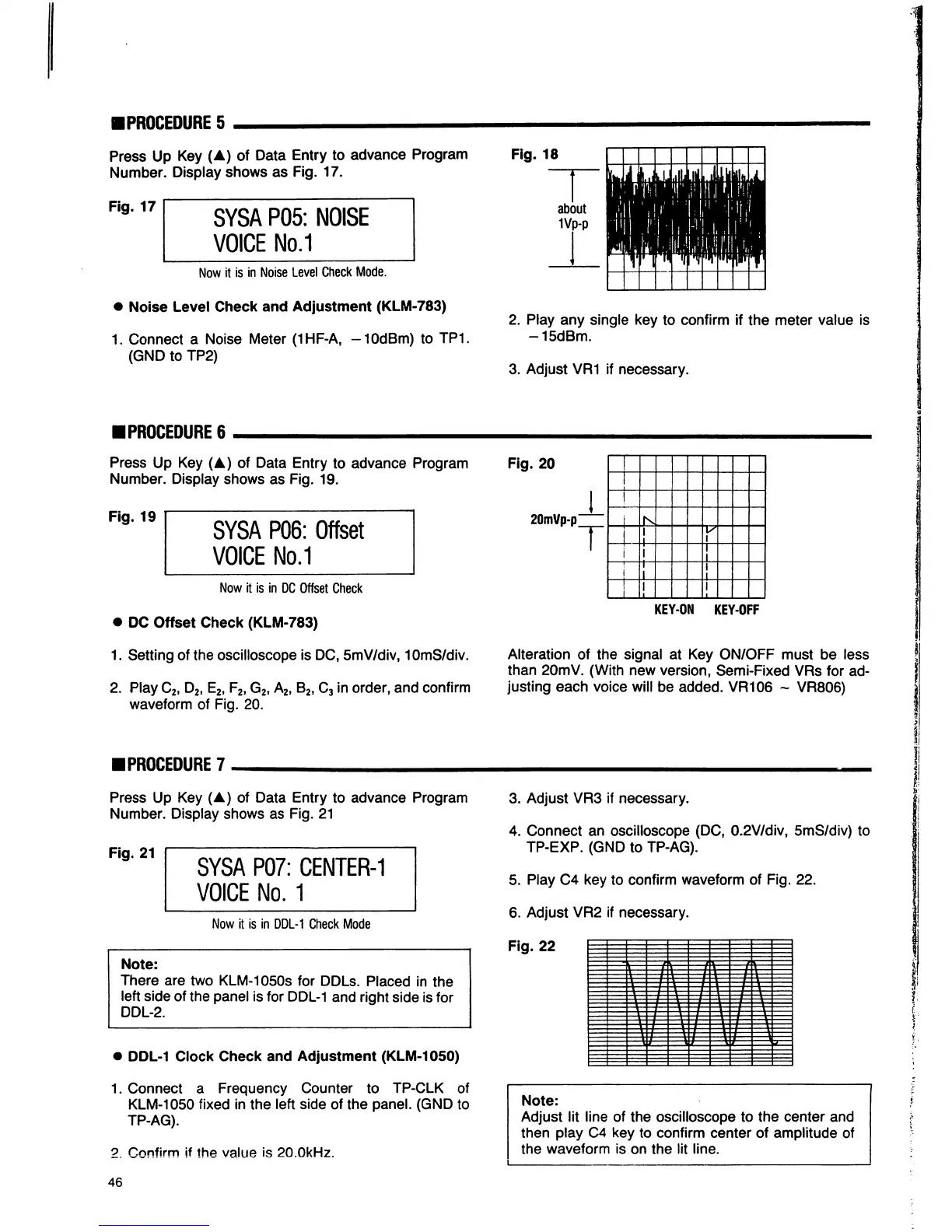

IPROCEDURE 5
Press Up Key (A) of Data Entry to advance Program
Number. Display shows as Fig. 17.
Fig. 17
SYSA P05: NOISE
VOICE No.1
Now it is in Noise Level Check Mode.
• Noise Level Check and Adjustment (KLM-783)
1. Connect a Noise Meter (1HF-A, -10dBm) to TP1.
(GND to TP2)
Fig. 18
2. Play any single key to confirm if the meter value is
-15dBm.
3. Adjust VR1 if necessary.
IPROCEDURE6
Press Up Key (▲) of Data Entry to advance Program
Number. Display shows as Fig. 19.
Fig. 19
SYSA P06: Offset
VOICE No.1
Now it is in DC Offset Check
• DC Offset Check (KLM-783)
1. Setting of the oscilloscope is DC, 5mV/div, 10mS/div.
2. Play C2, D2, E2, F2, G2, A2, B2, C3 in order, and confirm
waveform of Fig. 20.
Fig. 20
20mVp-p
KEY-ON KEY-OFF
Alteration of the signal at Key ON/OFF must be less
than 20mV. (With new version, Semi-Fixed VRs for ad
justing each voice will be added. VR106 ~ VR806)
IPROCEDURE 7
Press Up Key (A) of Data Entry to advance Program
Number. Display shows as Fig. 21
Fig. 21
SYSA P07: CENTER-1
VOICE No. 1
Now it is in DDL-1 Check Mode
Note:
There are two KLM-1050s for DDLs. Placed in the
left side of the panel is for DDL-1 and right side is for
DDL-2.
• DDL-1 Clock Check and Adjustment (KLM-1050)
1. Connect a Frequency Counter to TP-CLK of
KLM-1050 fixed in the left side of the panel. (GND to
TP-AG).
2. Confirm if the value is 20.0kHz.
46
3. Adjust VR3 if necessary.
4. Connect an oscilloscope (DC, 0.2V/div, 5mS/div) to
TP-EXP. (GND to TP-AG).
5. Play C4 key to confirm waveform of Fig. 22.
6. Adjust VR2 if necessary.
Fig. 22
Note:
Adjust lit line of the oscilloscope to the center and
then play C4 key to confirm center of amplitude of
the waveform is on the lit line.
