Korg DSS-1 Service Manual

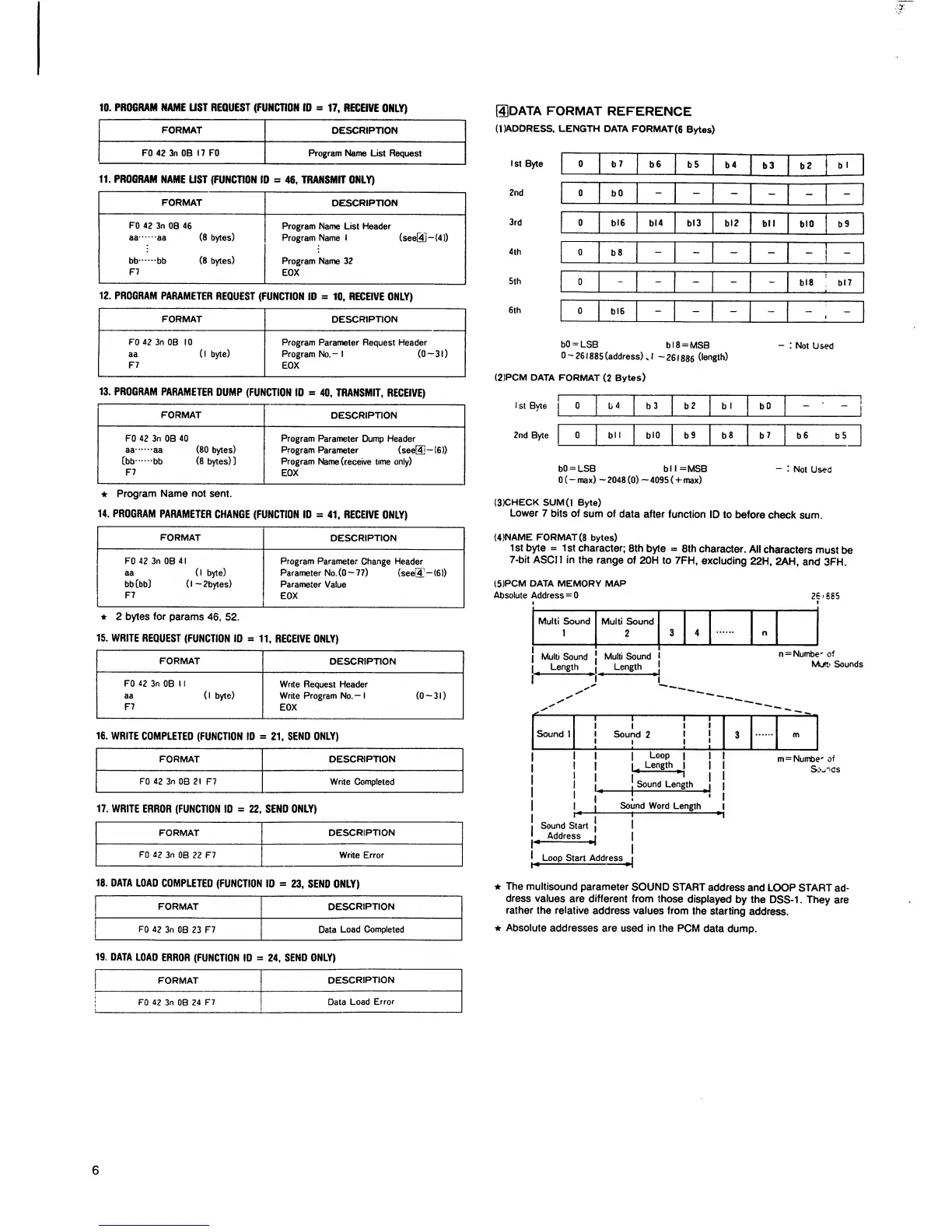

10. PROGRAM NAME LIST REQUEST (FUNCTION 10 = 17, RECEIVE ONLY)
11. PROGRAM NAME UST (FUNCTION ID = 46, TRANSMIT ONLY)
12. PROGRAM PARAMETER REQUEST (FUNCTION ID = 10, RECEIVE ONLY)
13. PROGRAM PARAMETER DUMP (FUNCTION ID = 40, TRANSMIT, RECEIVE)
• Program Name not sent.
14. PROGRAM PARAMETER CHANGE (FUNCTION ID = 41, RECEIVE ONLY)
• 2 bytes for params 46, 52.
15. WRITE REQUEST (FUNCTION ID = 11, RECEIVE ONLY)
16. WRITE COMPLETED (FUNCTION ID = 21, SEND ONLY)
17. WRITE ERROR (FUNCTION ID = 22, SEND ONLY)
18. DATA LOAD COMPLETED (FUNCTION ID = 23, SEND ONLY)
19. DATA LOAD ERROR (FUNCTION ID = 24, SEND ONLY)
[4]DATA FORMAT REFERENCE
(DADDRESS. LENGTH DATA FORMAT(6 Bytes)
I st Byte
2nd
3rd
4th
5th
6th
bO = LSB bl8=MSB
0 -261885 (address) J -261886 (length)
- : Not Used
(2)PCM DATA FORMAT (2 Bytes)
I st Byte
2nd Byte
b0 = LSB bll=MSB
0 (- max) - 2048 (0) - 4095 (+ max)
- • Not Used
(3)CHECK SUM (I Byte)
Lower 7 bits of sum of data after function ID to before check sum.
(4)NAME FORMAT (8 bytes)
1st byte = 1st character; 8th byte = 8th character. All characters must be
7-bit ASCII in the range of 20H to 7FH, excluding 22H, 2AH, and 3FH.
(5)PCM DATA MEMORY MAP
Absolute Address = 0
26>SS5
Multi Sound
Multi Sound
| Multi Sound ! Multi Sound I
| Length j Length [
r v i
n=Numb€' of
Mu& Sounds
Sound
I I
I Sound 2
I Loop |
l« Length 1
Sound Length |
Sound Word Length
m=Numbe' of
Sound Start
Address
I
. Loop Start Address _ |
• The multisound parameter SOUND START address and LOOP START ad
dress values are different from those displayed by the DSS-1. They are
rather the relative address values from the starting address.
• Absolute addresses are used in the PCM data dump.
