Korg M3 User Manual

22
3

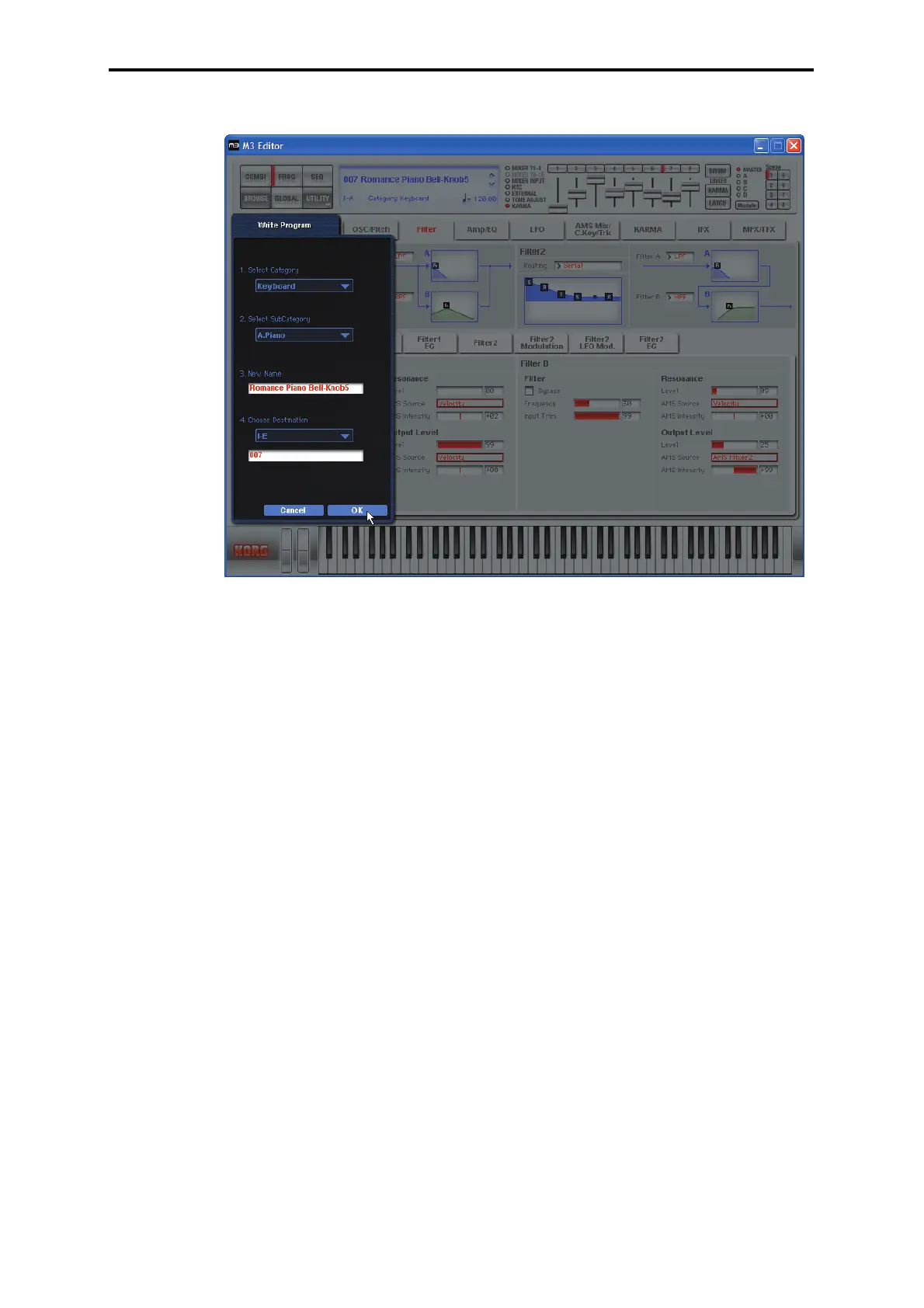

Specify the program name, category, and save destination, and click the [OK] button.
If you execute a menu command (such as Swap Oscillator) on the M3 itself, the data in
the Editor and the data in the M3 may lose synchronization. In this case, execute a
UTILITY menu command (such as Receive Current Combi) in the Editor to receive a
data dump for the current data.

Korg M3 Specifications

General

Synthesis Type	EDS (Enhanced Definition Synthesis)
Sound Engine	EDS (Enhanced Definition Synthesis)
MIDI	In, Out, Thru
Keyboard	61-key, velocity-sensitive, aftertouch
Sequencer	16-track MIDI sequencer
Sampling	Open Sampling System
Display	TouchView graphical user interface with 320x240 color TFT LCD
Arpeggiator	2 polyphonic arpeggiators
Controllers	Joystick, Ribbon Controller
Outputs	L/MONO, R, Individual 1-4, Headphones
USB	Yes, USB MIDI
Storage	SD card slot
Combinations	1, 792 user combinations
Polyphony	120 voices (max)
Effects	5 Insert effects, 2 Master effects, 1 Total effect
