Korg OASYS 88 - Page 6

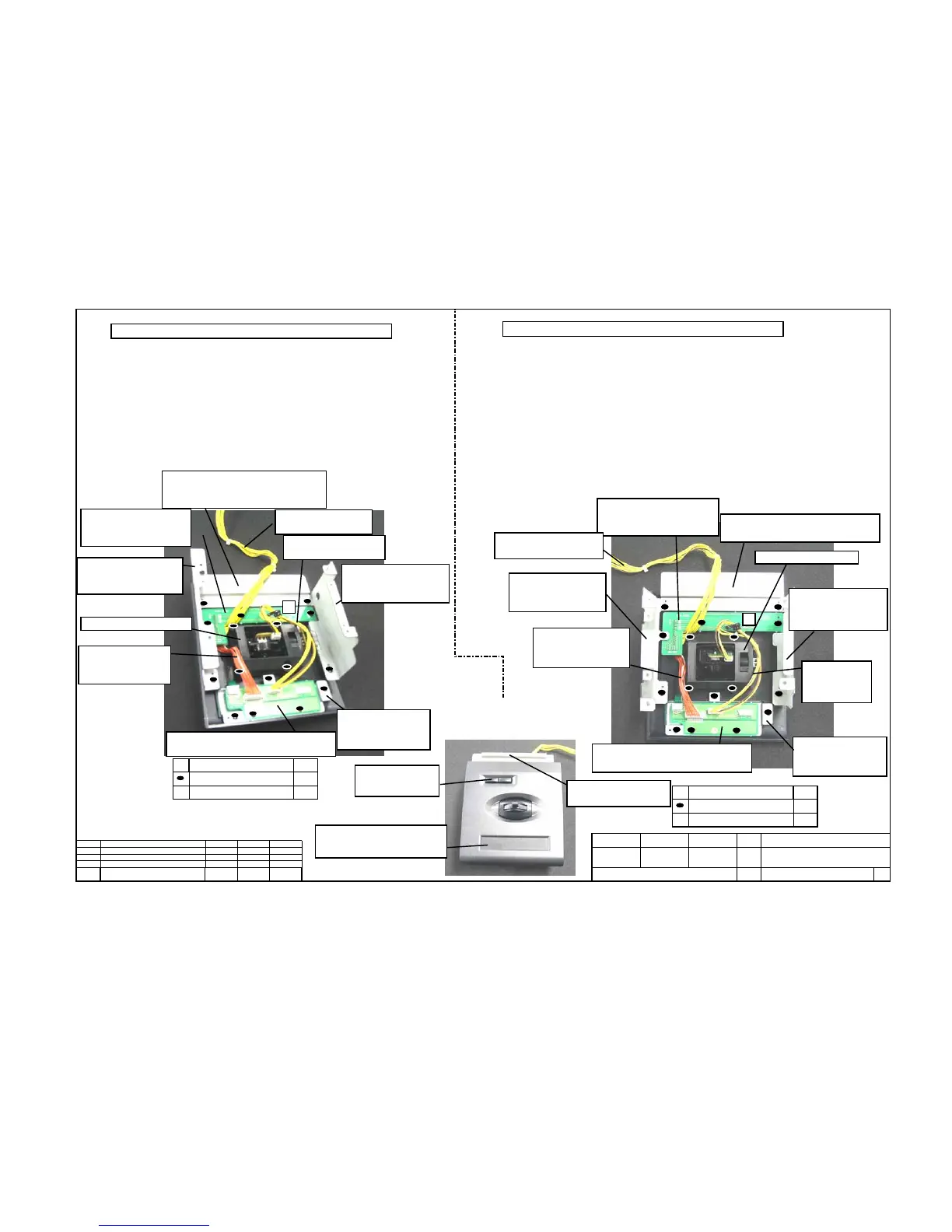

Ｘ−２１００／２１６０
ＪＳパネル加工図
ＮＯ．
ＴＩＴＬＥ
ＫＯＥ−Ｆ３２０２８
6
Ｃ
CoatingClip CS-6 1
Screw Qty.
BT B BZMC 3x8 16
Screw Qty.
Ｃ
CoatingClip CS-6 1
16BT B BZMC 3x8
2005/5/27 2005/5/31
ＭＯＤＥＬ
MARK
ＫＯＲＧ．ＩＮＣ
REVISAL DATE
REVISAL BY
REVISAL REASON
R
EVISA
L
APPROVED
田村 武田
ＤＲＡＷＮ ＣＨＥＣＫＥＤ ＡＰＰＲＯＶＥＤ
Ａ５
500646064700
X-311BK CONTROL
KNOB ASSY
500415005000
KX-2100 SENSER (BLACK)
500540027500
GASKET E02S080070ET-110
L=110
Ｃ
500475003438
HARNESS HNS-3438
500475003432
HARNESS HNS-3432
500475002197
HARNESS HNS-2197
BOARD IN
KLM-2555(a part of
200046362417 PCB
ASSY KLM-2417-
91/2505 63)
KLM-2556(a part of 200046362417 PCB
ASSY KLM-2417-91/2505-63)
500641041904
X-2100 JS SUPPORT L
KOC-C30660
500641041258
X-311/312 FSR
METAL KOC-C41000
500641041905
X-2100 JS SUPPORT R
KOC-C30662
500641041944
X-2100 EMI ANGLE JS KOC-C41410
2100 JoystickASSY
500641041944
X-2100 EMI ANGLE JS KOC-C41410
500641041904
X-2100 JS SUPPORT
L KOC-C30660
KLM-2555(a part of
200046362417 PCB ASSY
KLM-2417-91/2505-63)
500475003450
HARNESS HNS-3450
Ｃ
500641041906
X-2160 JS SUPPORT
R KOC-C30661
500641041258
X-311/312 FSR
METAL KOC-C41000
500475003432
HARNESS
HNS-3432
500475002197
HARNESS HNS-2197
BOARD IN
2100 JoystickASSY
X-2100 JSPanel ASSY
X-2160 JSPanel ASSY
KLM-2556(a part of 200046362417
PCB ASSY KLM-2417-91/2505-63)
