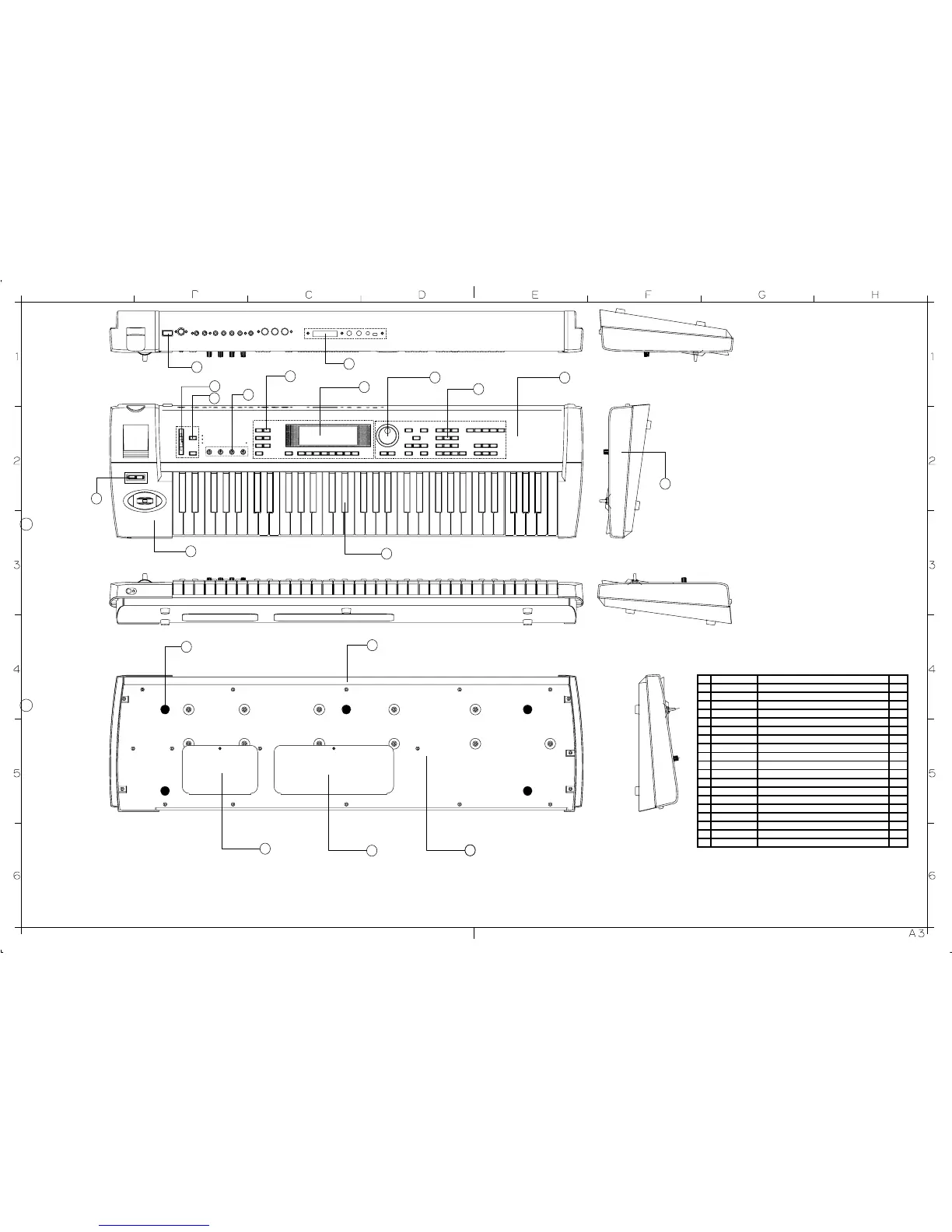

Korg TRITON Le Service Manual

Demensions : L= 1045.2mm
W= 302.3mm
H= 95.3mm
Weight  : 7.8Kg
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
19
NO PART CODE PART NAME Q'TY
1 620024600 X-952 POWER SW KNOB 1
2 620034600 X-631 SVR KNOB (GRAY) 1
3 646079200 X-0180 KNOB BLOCK B-2 1
4 620043900 KNOB P-423-9GF 4
5 646079100 X-0180 KNOB BLOCK B-1 1
6 641041651 X-0180 REAR OP COVER 1
7 630034200 X-0180 LCD WINDOW 1
8 620034700 X-610 ENCODER KNOB (GRAY) 1
9 646078900 X-0180 KNOB BLOCK A-1 1
10 646079000 X-0180 KNOB BLOCK A-2 1
11 646078700 X-0180 SIDE PLATE L 1
12 420005800 61TP/9S+PCBBOARD+AFTERTOUCH 1
13 646078800 X-0180 SIDE PLATE R 1
14 500022500 CASE LEG FF-004 5
15 641041649 X-0180 FRONT BAR 1
16 641041653 X-0180 SIMM COVER 1
17 641041652 X-0180 OP COVER 1
18 641041650 X-0180 BOOTOM COVER 1
19 641041648 X-0180 PANEL 1

Korg TRITON Le Specifications

General

Polyphony	62 voices
Display	240 x 64 pixel backlit LCD
MIDI	In, Out, Thru
Power Supply	AC adapter (included)
Type	Workstation Keyboard
Keyboard	61 keys
Sound Engine	HI Synthesis
Synthesis Method	PCM
ROM Wave Memory	32 MB
Programs	512 Programs
Drum Kits	24 drum kits
Effects	2 multi-effects processors, 1 master effect, 1 total effect
Sequencer	16-track, 200, 000 notes
Arpeggiator	1 arpeggiator
Storage	SmartMedia card
Outputs	L/MONO, R, Headphones
Floppy Disk Drive	3.5 inch 2DD/2HD
