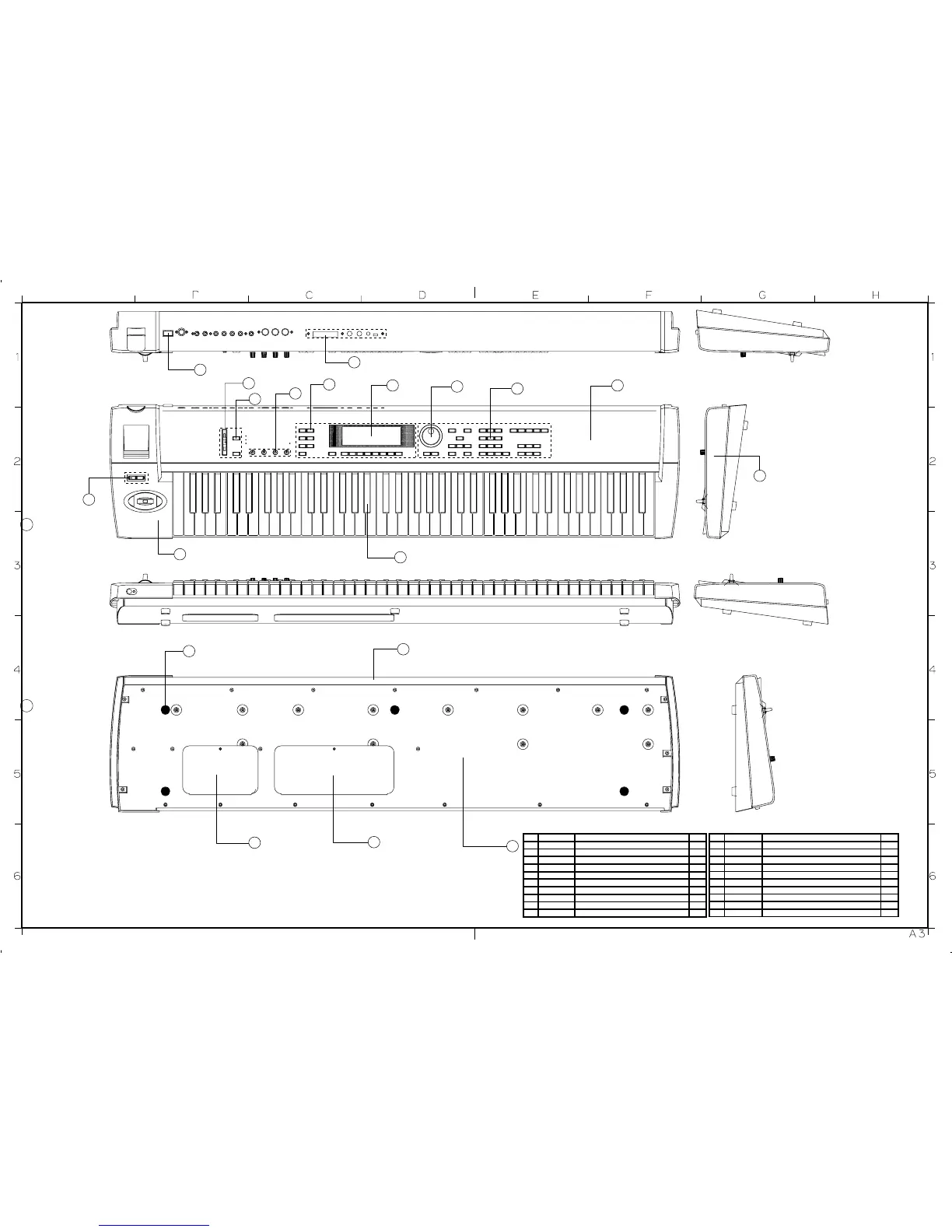

Korg TRITON Le Service Manual

Demensions : L=1257.6mm
W= 302.3mm
H= 95.3mm
Weight : 9.2Kg
18
17
16
14
15
12
11
10
13
19
9
8
7
6
5
4
3
2
1
NO.
PART CODE
PART NAME Q'TY
1 620024600 X-952 POWER SW KNOB E40304-2 1
2 620034600 X-631 SVR KNOB(GRAY)E40239-6 1
3 646079200 X-0180 KNOB BLOCK B-2 E10191-2 1
4 620043900 KNOB P423-9GF(-0180) E40519-2 4
5 646079100 X-0180 KNOB BLOCK B-1 E10191-1 1
6 641041651 X-0180 REAR OP COVER KOC-C4122 1
7 630034200 X-0180 LCD WINDOW KOC-F40962 1
8 620034700
X-610 ENCODER KNOB(GRAY)E40466
1
9 646078900 X-0180 KNOB BLOCK A-1 E20211-1 1
10 646079000 X-0180 KNOB BLOCK A-2 E20211-2 1
NO.
PART CODE
PART NAME Q'TY
11 646078700 X-0180 SIDE PLATE L KOC-E10189 1
12 420005900 76TP/9+PCBOARD+AFTERTOUCH 1
13 646080000 X-1120 SIDE PLATE R E10190-2 1
14 500022500 CASE LEG FF-004 5
15 641041661 X-1120 FRONT BAR KOC-C41228-2 1
16 641041653 X-0180 SIMM COVER KOC-C41227 1
17 641041652 X-0180 OP COVER KOC-C41226 1
18 641041659 X-1120 BOTTOM COVER KOC-C30565 1
19 641041660 X-1120 PANEL KOC-C30564 1

Korg TRITON Le Specifications

General

Polyphony	62 voices
Display	240 x 64 pixel backlit LCD
MIDI	In, Out, Thru
Power Supply	AC adapter (included)
Type	Workstation Keyboard
Keyboard	61 keys
Sound Engine	HI Synthesis
Synthesis Method	PCM
ROM Wave Memory	32 MB
Programs	512 Programs
Drum Kits	24 drum kits
Effects	2 multi-effects processors, 1 master effect, 1 total effect
Sequencer	16-track, 200, 000 notes
Arpeggiator	1 arpeggiator
Storage	SmartMedia card
Outputs	L/MONO, R, Headphones
Floppy Disk Drive	3.5 inch 2DD/2HD
