Korg Triton Studio Service Manual

1
2
3
4 5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

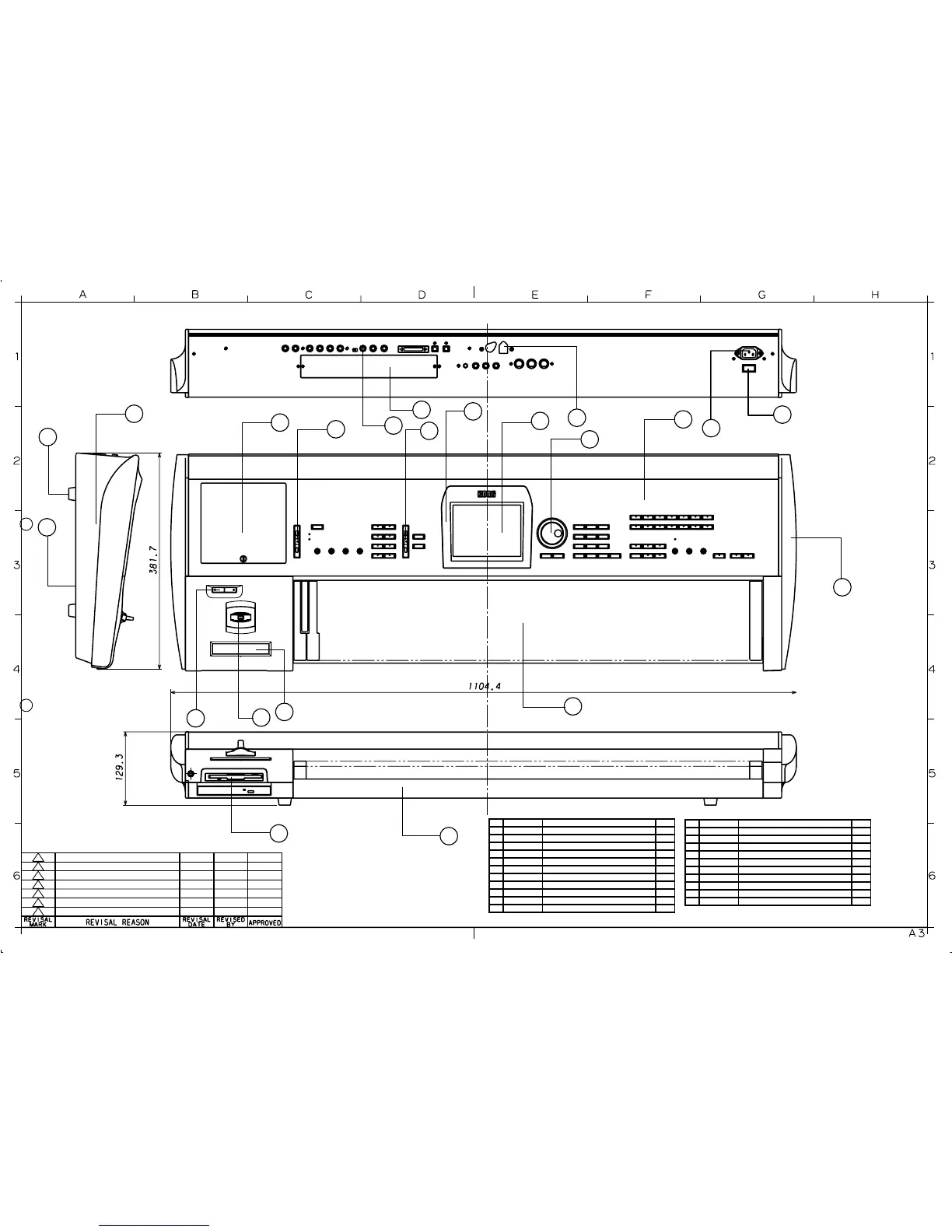

W=1104.4mm
D=381.7mm
H=129.3mm
Weight=17.15kg
21
20
20
NO
PART CODE
PART NAME Q'TY
1 313005900 TOUCH PANEL LCD KGJ-01S-7 1
2 420004800 KEYBOARD FC-61 KG2 1
3 641041716 X-0100 SIMM COVER KOC-C30581 1
4 641041695 X-0100 OP PANEL 1 KOC-C41237 1
5 646082300 X-0100/10/20 LCD HOOD E10195-1 1
6 641041593 X-9200 OP PLATE 2 KOC-C41187 1
7 620044100 X-610 ENCODER KNOB(W GREY) 1
8 620044600 X-610 CONTROL KNOB ASSY(WG) 1
9 646083300
X0180 JOYSTICKASSY(WG)H30214-2
1
10 415003700 KX-7100 SENSOR 1 1
11 641041675 X-0100 PANEL KOC-C10221 1
NO
PART CODE
PART NAME Q'TY
12 540020200 INLET SOCKET SS-7B 1
13 620024600 X-952 POWER SW KNOB E40304-2 1
14 646081000 X-0100 SIDE PANEL L KOC-E10193 1
15 646081100 X-0100 SIDE PANEL R KOC-E10194 1
16 500022500 CASE LEG FF-004 4
17 641041719
X-0100 BOTTOM COVER KOC-C10229
1
18 435003200 HALF INCH FDD(2MODE) D353F3 1
19 641041696 X-0100 FRONT BAR KOC-C30569-1 1
20 620044000 X-631 SVR KNOB(W GREY) 2
21 620044800 ROTARY VR KNOB KOC-E48026-1 1

Korg Triton Studio Specifications

General

MIDI	In, Out, Thru
Type	Workstation
Polyphony	62 voices
Oscillators	2 oscillators per voice
Effects	2 master effects
Sequencer	16-track
Sampling	16-bit, 48 kHz, expandable RAM (optional EXB-SMPL board)
Display	TouchView graphical interface
Storage	Internal hard drive, floppy disk drive
Keyboard	61, 76, or 88 keys with velocity and aftertouch
Sound ROM	32 MB (expandable with EXB series)
Outputs	stereo main outputs
Inputs	L/Mono, R
