Quick Start
This Quick Start is provided for those who just want to get started trying out the sounds right
away.
It explains how to set up the X50, how to select programs and control the sound, and how to lis-
ten to the demo songs.
After you’ve finished reading this Quick Start section, please also take a look at the full explana-
tions that follow.
Setup
Make all your connections with the power off (on all units!). If you don’t, you may damage
your speaker system or damage your X50 and/or other equipment
. Please use caution.
1.
Connect the included AC adapter.
Use only the AC adapter included with
the X50. Do not use any other AC
adapter.
2.
Connect the X50 to your audio
monitoring system.
Using standard audio cables with 1/4"
phone plugs, connect the X50’ (MAIN
OUTPUT) L/MONO and R output jacks
to the input jacks of your mixer,
amplified monitor speakers, or audio
recording device.
If you’re listening through headphones,
connect them to the headphone jack
located on the left front of the X50.
The headphones produce the same signal
as the (MAIN OUTPUT) L/MONO and R jacks.

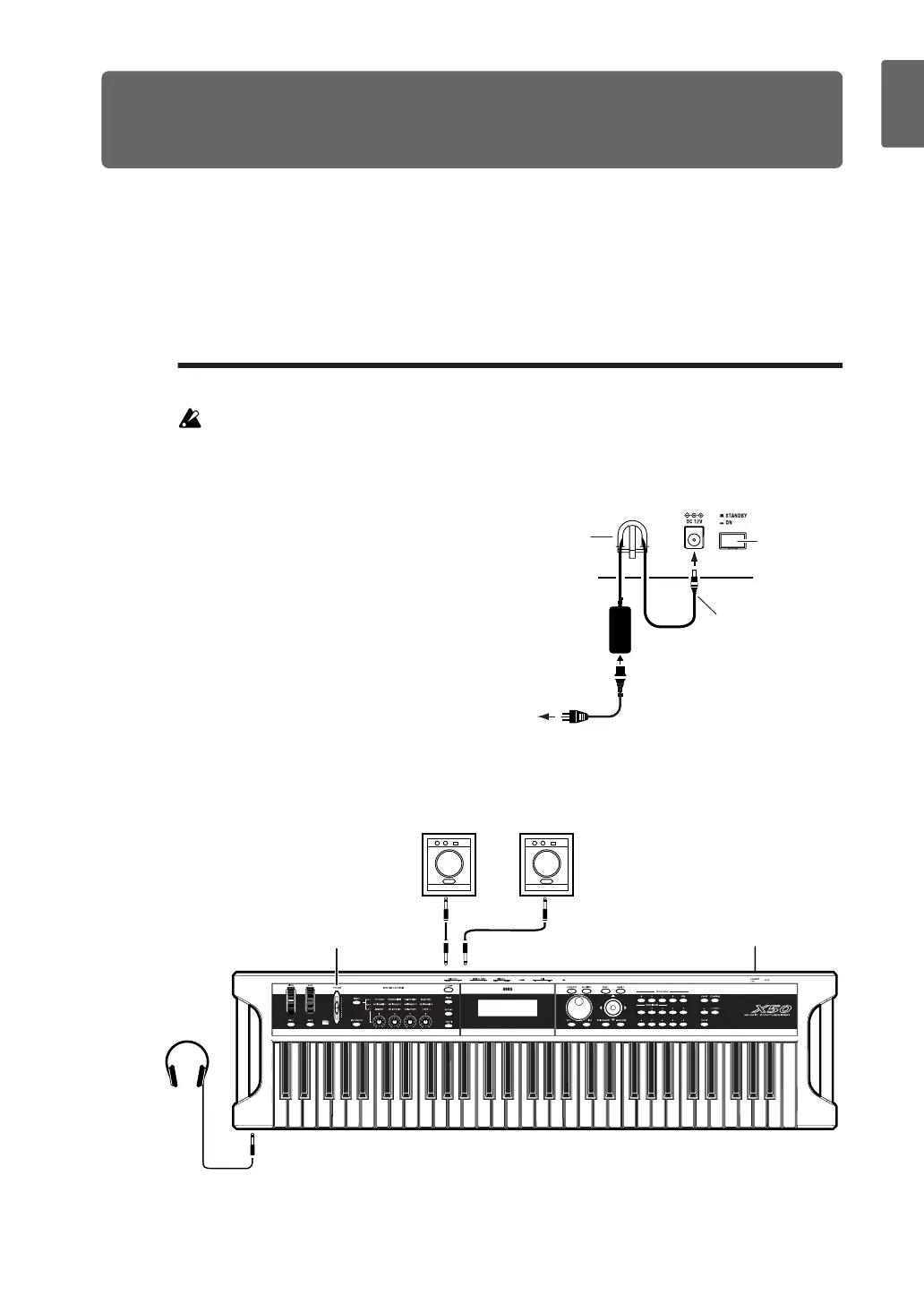

Connecting the AC adapter
AC adapter
Plug into an AC
outlet
3 Power cable
1 Power connector
Power switch
Be careful not to
bend this portion
excessively when you
wrap the cable
through the cable
hook.
4 Cable hook
2
RL/MONO
PHONES
INPUTINPUT
Audio output device connections
Headphones
Powered monitors
Power switch
Adjust the
[VOLUME] slider
To Next Page
