Conguration
PPE2 Operation
The heater switches on automatically straight after
reaching the ow rate over 2,5 l/min. The temperature
control system adjusts the power rate according to the
water ow rate, required temperature and the tempera-
ture of water in the mains. The LCD backlight and
icon signalises the heating operation. If the unit reach
the maximum power value which is too low for a given
operating conditions the LCD display will show ickering
icon. The LED display backlight also turns on while pushing or turning the setting
knob. The backlight will automatically turn off when the heating operation is turned off,
or if more than 50 seconds have passed since the last adjustment.
If you block the unit by master appliance (NA entry) the display will show „NA BLOCK”.
If the fault occurs the display will show icon and error message.

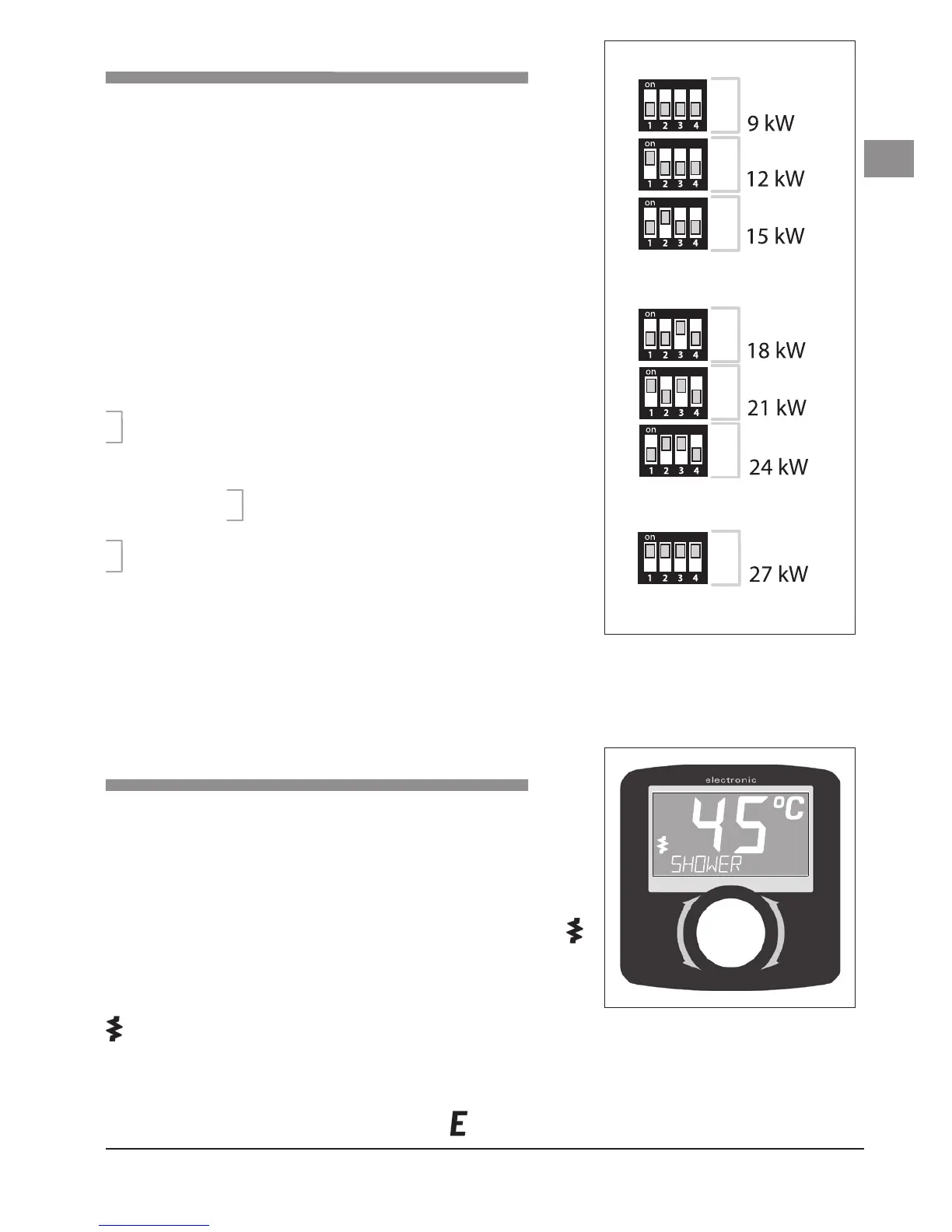

Heating box size 15 kW
Heating box size 24 kW
Heating box size 27 kW
P
P
P
P
P
P
P
GB
Before you supply voltage for the rst time, make sure that
you set the heater’s power at appropriate value (always
consider the capacity of your home’s electrical system).
Notice: Conguration must be performed before initial
start-up when power supply is switched off. Set 2 (two)
switches at proper position to congure a heater. The
switches are located on electronic board. Each switch has
4 (four) positions, they are described as P (power settings)
and F (other settings). Switch on a power supply to upgrade
conguration. After you supply power to PPE2 or PPVE
a display will show : (PW...) - software version of control
panel, (MSP...) - software version of controller and the value
of rated power that has been set for the heater (PPE2).
P
switches settings (for PPE2,KDE2,PPVE):
• 1, 2 - rated power of heater,
• 3, 4 - type of heating box,
Do not reset
P
switches for KDE - keep factory set-
tings intact.
F
switches settings: :
• 1,2 - do not change! keep factory settings intact,
• 3 - ON - activates the air control at the heating box,
• 4 - ON - blocks access to the heater’s settings.
In this case for PPE2 or PPVE, the display shows the desired temperature value
(which has been adjusted before the heater is off), the heating icon and other
possible working characteristics.
grey square shows the switch position
