Summary of equipment
1

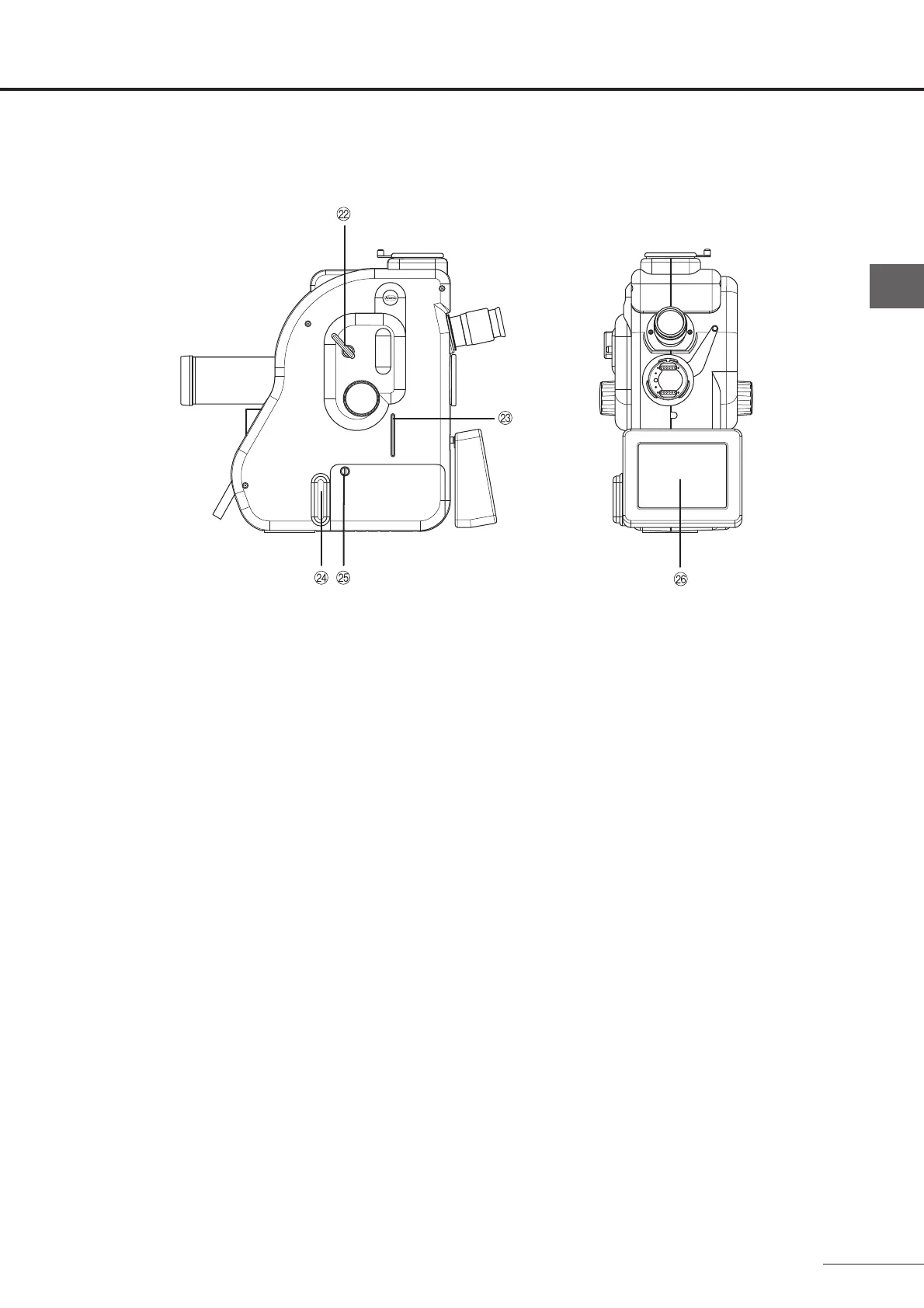

1. Summary of equipment
P1-3
%
Power cord
The shape of the plug varies according to the
input voltage.
&
External fixation lamp
Used to guide the examined eye's fixation to
desired direction.
'
Forehead rest
Used to rest and fix the patient's forehead
against it.
(
Chin rest
Used to rest and fix the patient's chin on it.
)
Head fixation band
Used to secure patient's head in case his or her
face is likely to move (e.g. child patient).
*
Chin rest handle
Used to raise/lower the chin rest.
+
Eye level mark
The vertical position of examined eye must be
aligned with this mark.
,
Fitting part of internal fixation target
Fit internal fixation target (optional) at its mount.
-
Field angle knob
Used to select a field angle of either 50
°
or 30
°
(45
°
or 27
°
for non- mydriatic photography).
.
Data card slot
An insertion slot for written data card to be pho-
tographed.
/
Filter inserting slot
Used for inserting optional green filter after re-
moving the rubber cap.
0
Light source cover fixing screws
Upon removal of this cover and inner cover,
flash lamp and observation lamp will appear al-
lowing replacement.
Be sure to turn off the power switch before re-
placement.
1
LCD monitor
In non-mydriatic mode,the examined eye is con-
tinuously observed on this monitor so that the
fundus camera can be properly guided.
This monitor can also be used to check the im-
ages photographed.
To Next Page
