12’X14’ assembly manual
page 21
X2
x32
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Parts Required:

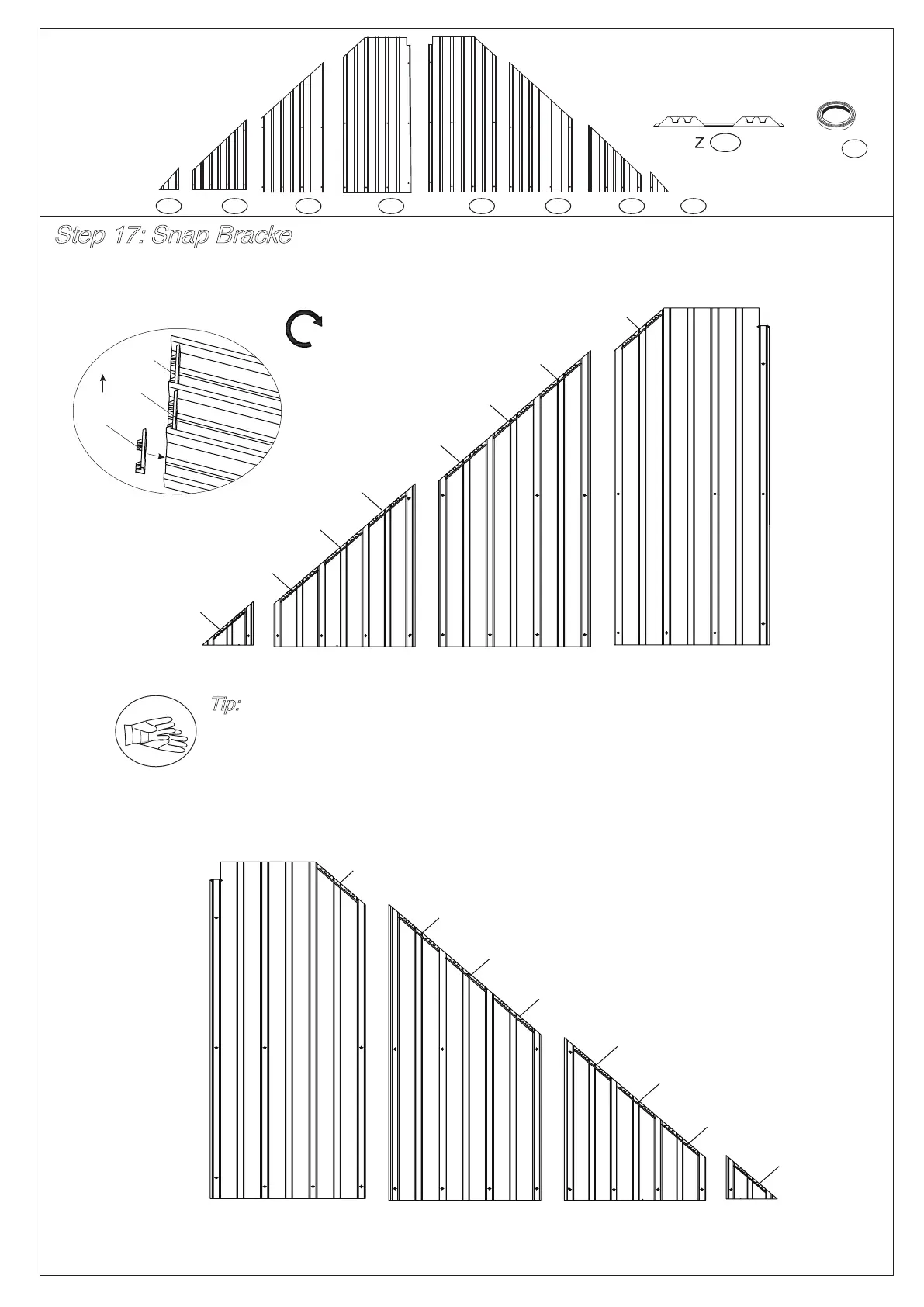

Snap Bracket (Part Z) to roof panel edges as shown in diagram.(with snaps facing upwards)
W11 x2 W12 x2 W13 x2 W14 x2 W15 x2 W16 x2 W17 x2 W18 x2
W11 W12 W13 W14
W15 W16 W17 W18
H3 x1
1. Wearing protective gloves is recommended.
2.In order to avoid Z-clips (plastic brackets) from sliding off prior to assembly,
place double-sided adhesive tape (Part H3) to the down side (bottom) edge
of the roof panels where the Brackets (Part Z) are supposed to attach.
Z
Z
Z
Tip:
Step 17: Snap Bracke
To Next Page
