page 12Caesar 12’x14” assembly manual
1#
x20
Parts Required:
N6
N6
N6
N6
N6
N6
R5
N6
N6
N6
N6
N6
1#
1#
1#
1#
Upward View
X4
X4
X4
Q4
Q4
P2
P2
P2
N
N
1#
1#
1#
1#
1#
1#
1#
Q
P
R5 x4
N6 x4

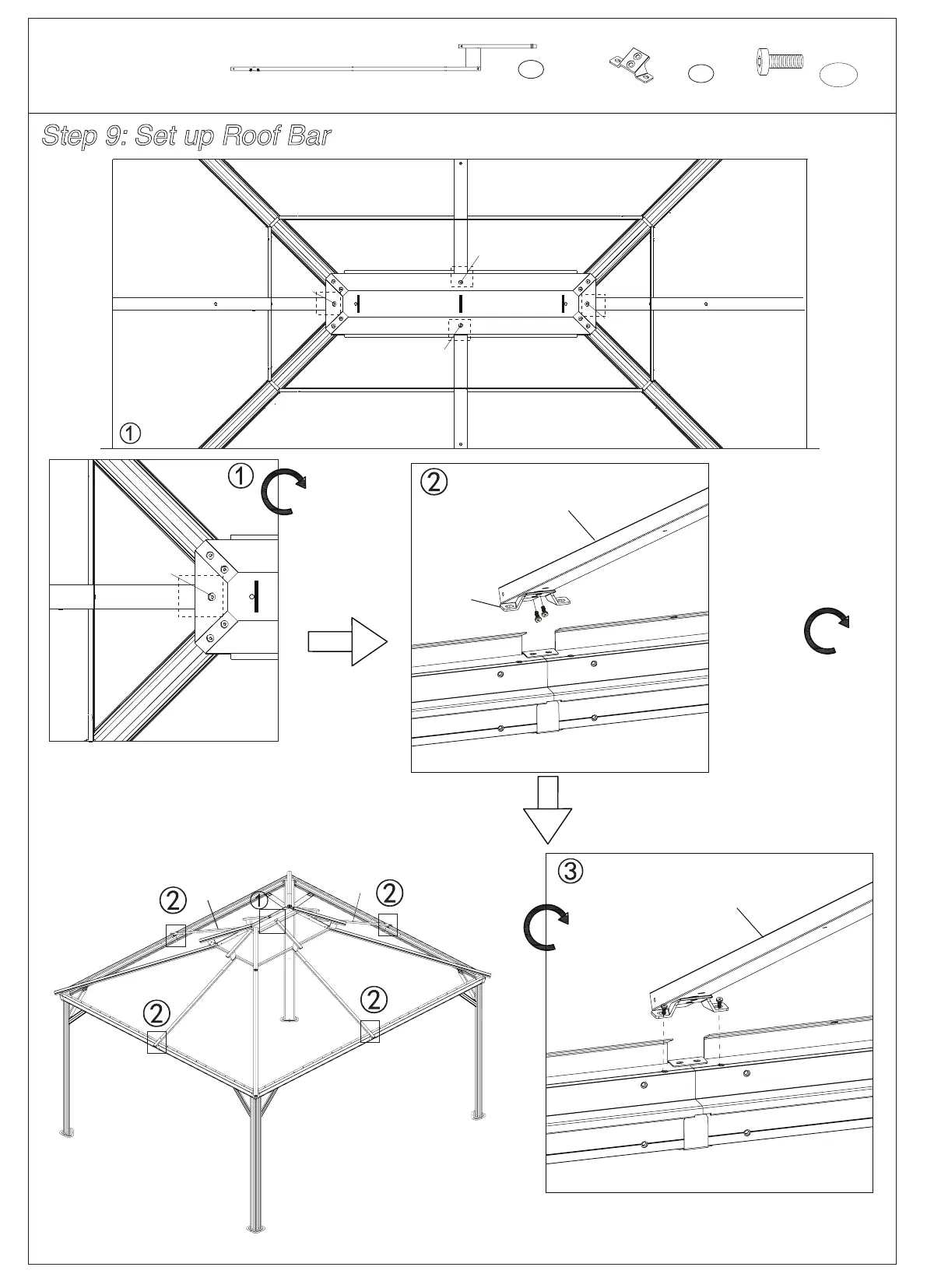

Step 9: Set up Roof Bar
1. Attach Roof Bar (Part N6) to
Roof Connector (Part K4) using
screw 1# as shwon in the diagram.
2. Connect Roof Bar
connector (Part R5)
to Roof Bar (Part N6)
using screw 1# as
shwon in the
diagram.
3. Attach Roof Bar (Part N6) to Beams using
screw 1# as shwon in the diagram.
