KPS-TL10 • Digital earth resistance tester
1. INTRODUCTION
NOTE:
This meter has been designed and tested according to IEC Publication
348, Safety Requirements for Electronic Measuring Apparatus, IEC-1010
(EN61010) and other safety standards. Follow all warnings to ensure safe
operation.

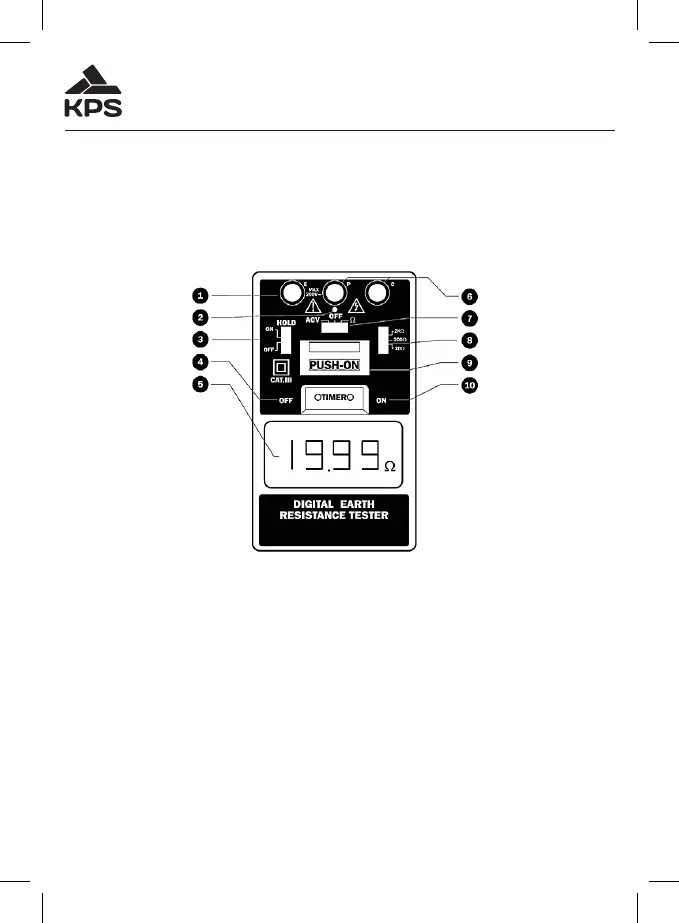

1. Jack For “EARTH” Lead Connection
2. Operation Indicator
3. Data Hold Switch
4. Timer Off Button
5. LCD Display
6. Jacks For “LINE” Lead Connections
7. Function Switch
8. Ohm Range Switch
9. Push button Operation
10. Timer On Button
