6.12 Setting Guideline
After the rear camera is installed, connect the red line of the rear camera connection
line (reversing signal detection wire) to connect the reversing lights. When the vehicle
is in reverse gear, the recorder will automatically switch the reverse camera like
accessibility.

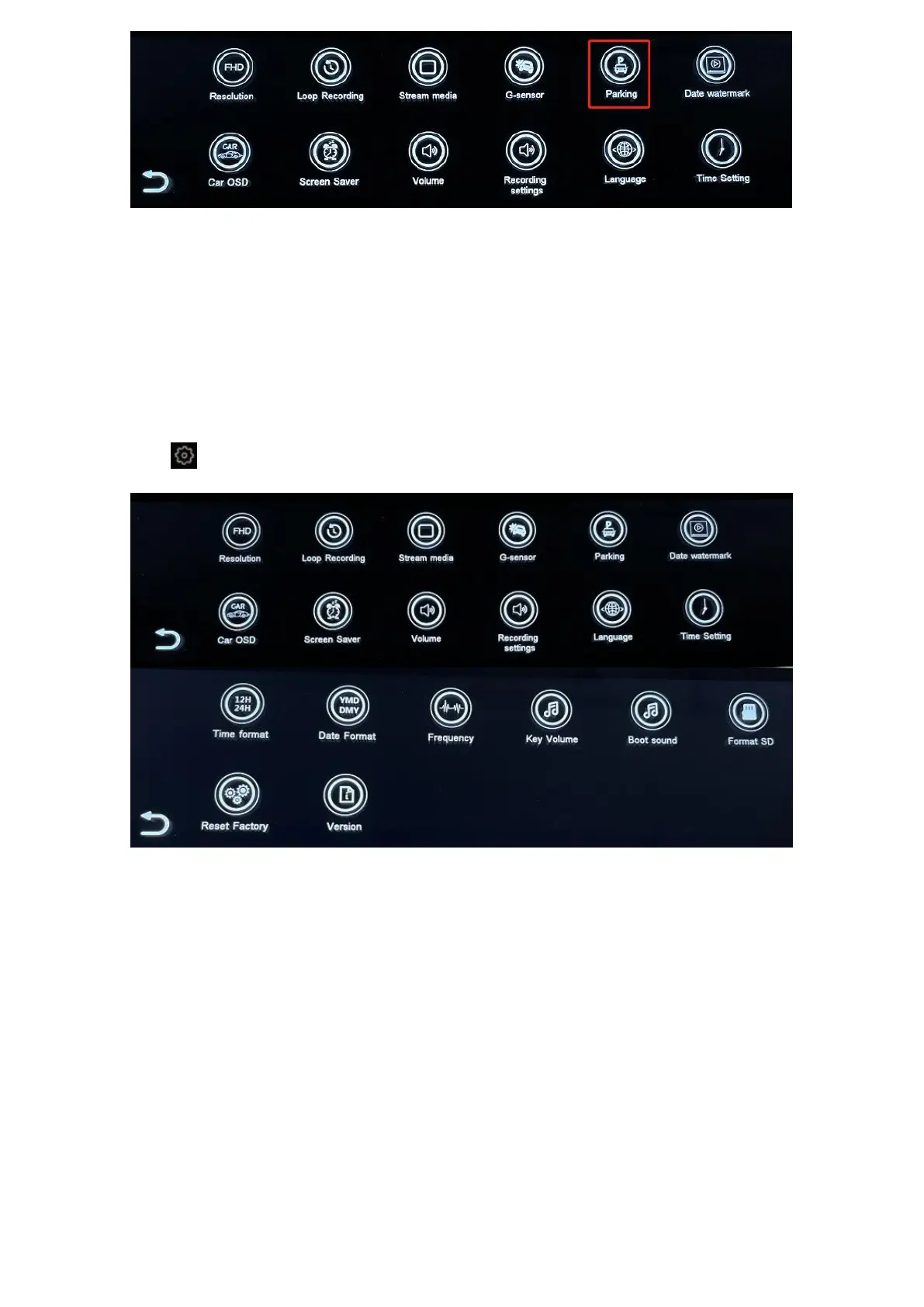

6.13 Introduction B - More Function/Settings
Click to enter setup menu to see more setting applications. Tap any functions you need
to set up to start setting.
6.14
Resolution:
2.5K(2560x1440P) / 1080P(1920X1080P). Please select 2.5K(2560x1440P) in the
setting for the best front camera vision.
6.15 Loop Recording: 1Min / 3Min / 5Min
Select to record and archive video in segment of 1 / 3 / 5 minutes. Loop recording
automatically overwrite the earliest segment with the latest video when the TF card is full.
[Note:] Locked footage won't be overwritten.
