Connecting the 401C and the 401DN
5
4.2 Your 401DN
Figure 2 and Table 2 describe the 401DN:

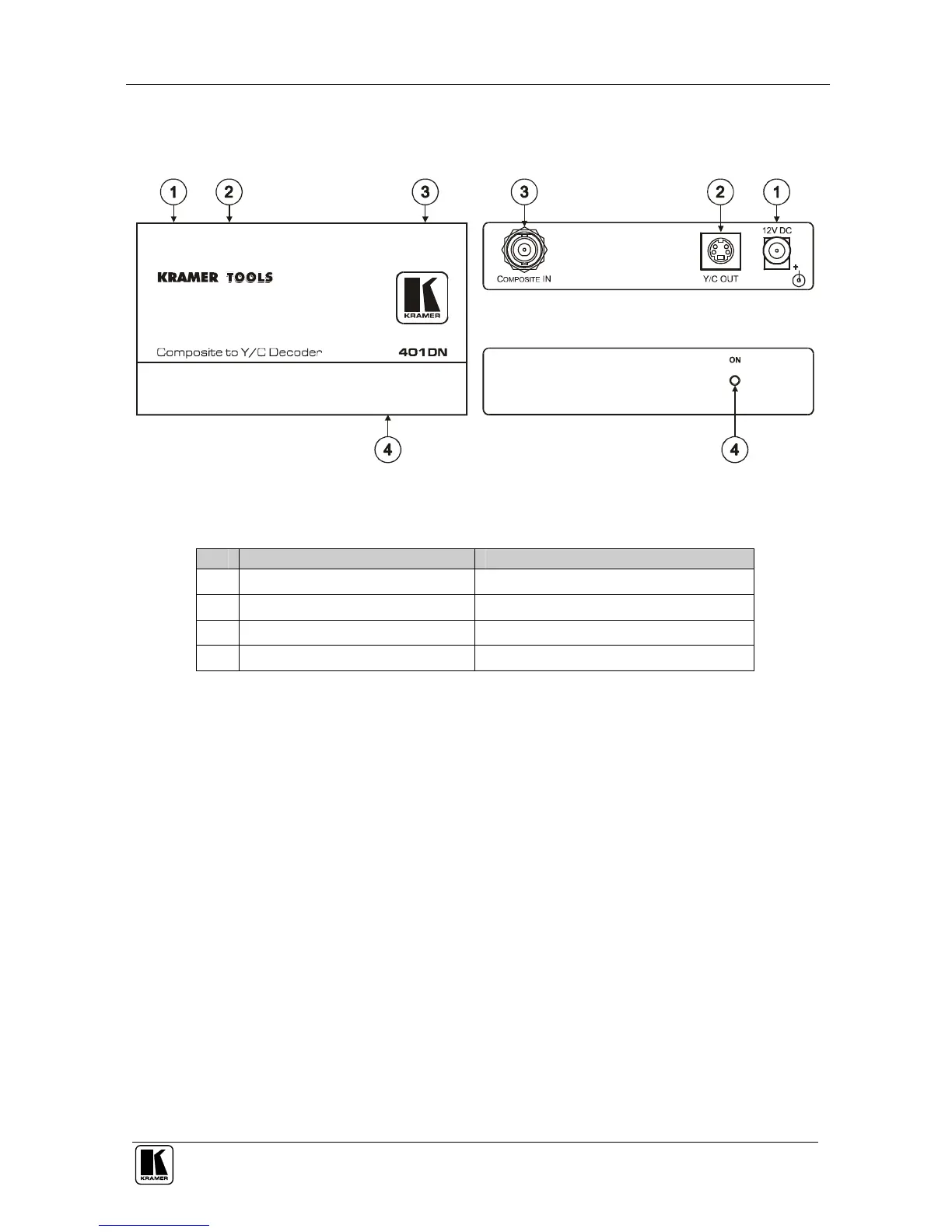

Figure 2: 401DN Composite to Y/C Decoder
Table 2: 401DN Composite to Y/C Decoder Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 Y/C OUT 4p Connector Connect to the s-Video acceptor
3 COMPOSITE IN BNC Connector Connect to the composite video source
4 ON LED Lights when the power is connected
5 Connecting the 401C and the 401DN
The following sections describe how to connect the:
 401C Y/C to Composite Converter / DA (see section 5.1)
 401DN Composite to Y/C Decoder (see section 5.2)
