KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the 401C and the 401DN
6
5.1 Connecting the 401C
To connect your 401C as illustrated in the example in Figure 3, do the following
1
:
1. Connect an s-Video source (for example, an s-Video player) to the Y/C IN
4p connector.
2. Connect the outputs
2
as follows:
The Y/C OUT 4p connectors to two s-Video acceptors (for example,
s-Video recorder 1 and s-Video recorder 2)
The COMPOSITE OUT BNC connectors to two CV acceptors (for
example, composite video recorder 1 and composite video recorder 2)
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.

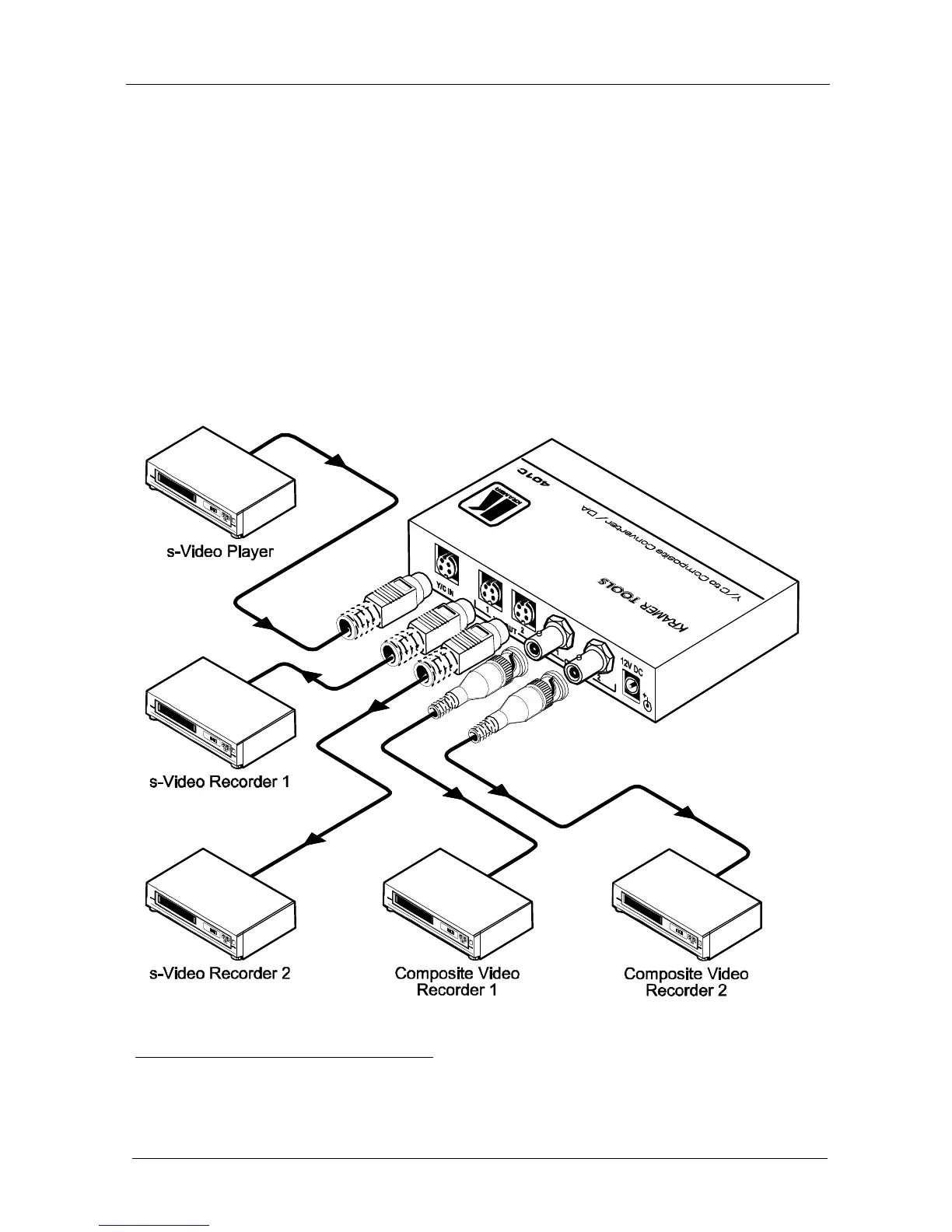

Figure 3: Connecting the 401C
1 Switch OFF the power on each device before connecting it to your 401C. After powering up your 401C, switch on the
power on each device
2 You do not have to connect all the outputs
