670T, 670RN - Overview
5
3.1.1 Your 670T HDMI Optical Transmitter

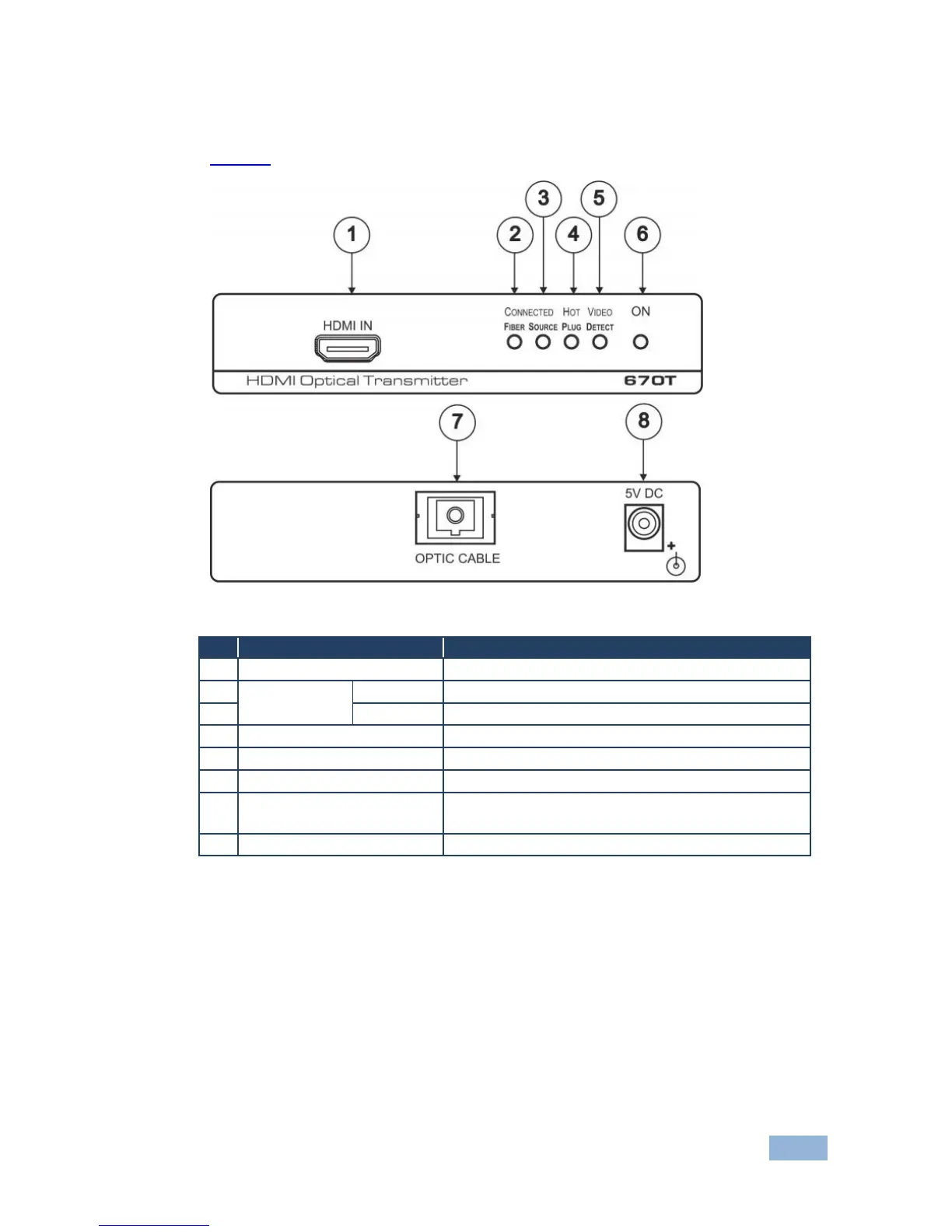

Figure 1 defines the 670T HDMI Optical Transmitter:
Figure 1: 670T HDMI Optical Transmitter
#
Feature
Function
1
HDMI IN Connector
Connects to the HDMI source
2
CONNECTED
LEDs
FIBER
Illuminates when the fiber optic cable is connected
3
SOURCE
Illuminates when a source is connected
4
HOT PLUG LED
Indicates a connected display on the receiver side
5
VIDEO DETECT LED
Indicates a valid video signal on the transmitter side
6
ON LED
Illuminates when receiving power
7
OPTIC CABLE Connector
Connect to the optical connector on the 670RN
(remove dust cap prior to use)
8
5V DC
+5V DC connector for powering the unit

Kramer 670T Specifications

General

Brand	Kramer
Model	670T
Category	Receiver
Language	English
