Kramer 670T User Manual

6
670T, 670RN - Overview
3.1.2 Your 670RN HDMI Optical Receiver

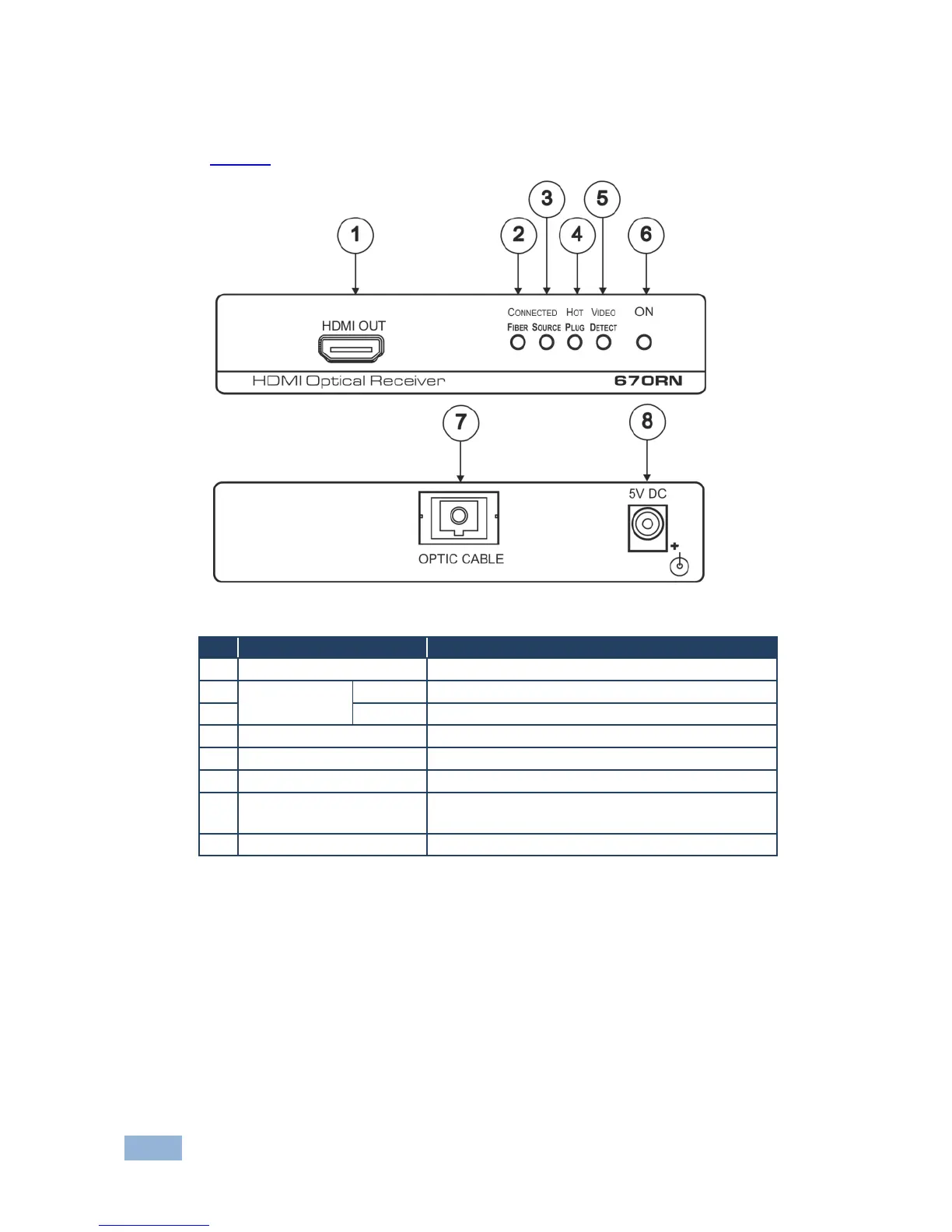

Figure 2 defines the 670RN HDMI Optical Receiver:
Figure 2: 670RN HDMI Optical Receiver
#
Feature
Function
1
HDMI OUT Connector
Connects to the HDMI acceptor
2
CONNECTED
LEDs
FIBER
Lights when the fiber optic cable is connected
3
SOURCE
Lights when a source is connected
4
HOT PLUG LED
Indicates a connected display on the receiver side
5
VIDEO DETECT LED
Indicates a valid video signal on the transmitter side
6
ON LED
Illuminates when receiving power
7
OPTIC CABLE Connector
Connect to the optical connector on the 670T
(remove dust cap prior to use)
8
5V DC
+5V DC connector for powering the unit
