4 Defining the PT-101H4 HDMI Repeater and
Format Converter
Figure 1 defines the PT-101H4.

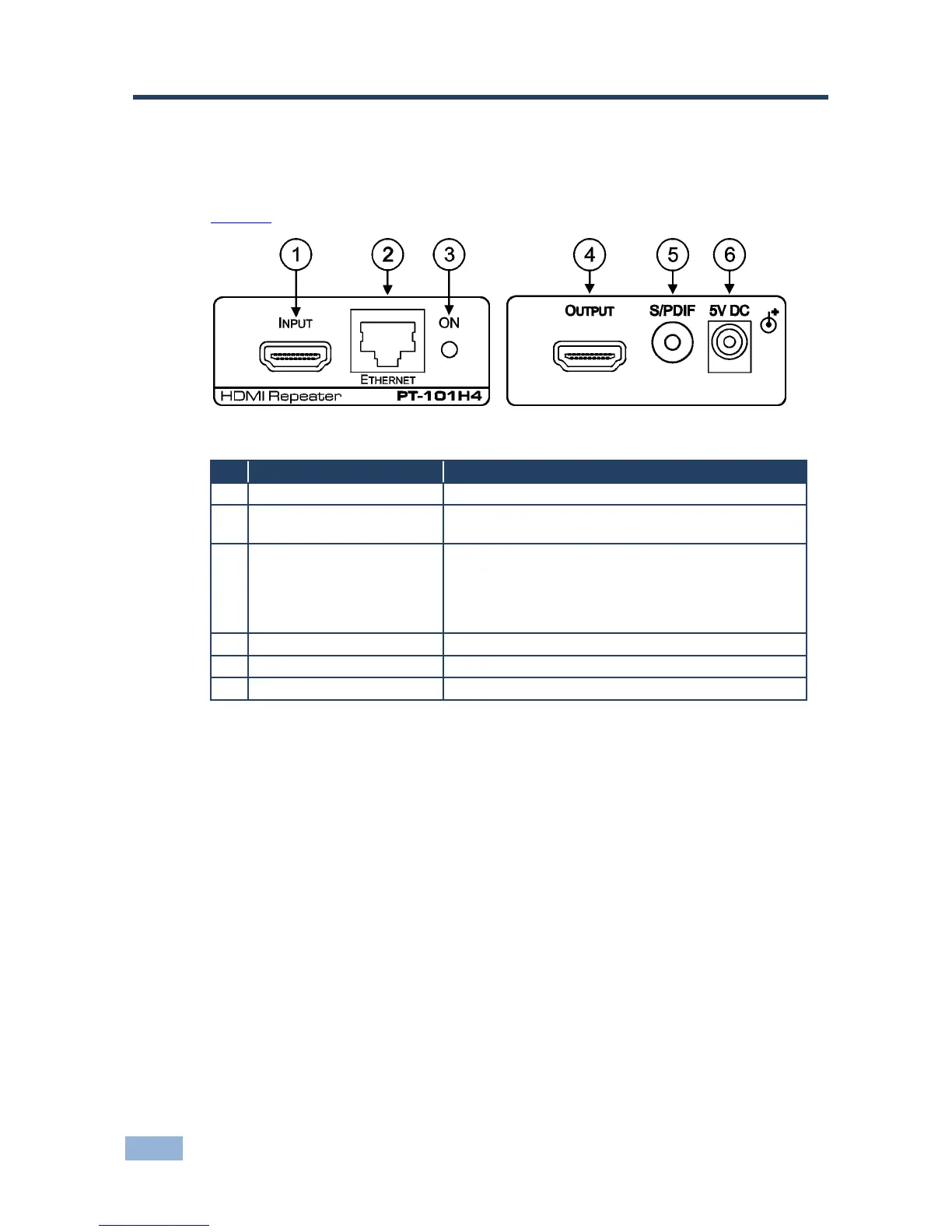

Figure 1: PT-101H4 HDMI Repeater and Format Converter
# Feature Function
1 INPUT HDMI Connector Connect to the HDMI source
2 ETHERNET CAT 5 RJ-45
Connector
Connect to the Ethernet LAN
3 ON LED Lights red when the unit receives power and no
devices are connected; lights orange when receiving
power and a device is connected to either the input
or output; lights green when receiving power and
both the input and output are connected to devices
4 OUTPUT HDMI Connector Connect to the HDMI acceptor
5 S/PDIF RCA Connector Connect to the digital audio acceptor
6 5V DC Power Connector Connect to the power adapter, center pin positive
