Kramer PT-571HDCP Quick Start Guide

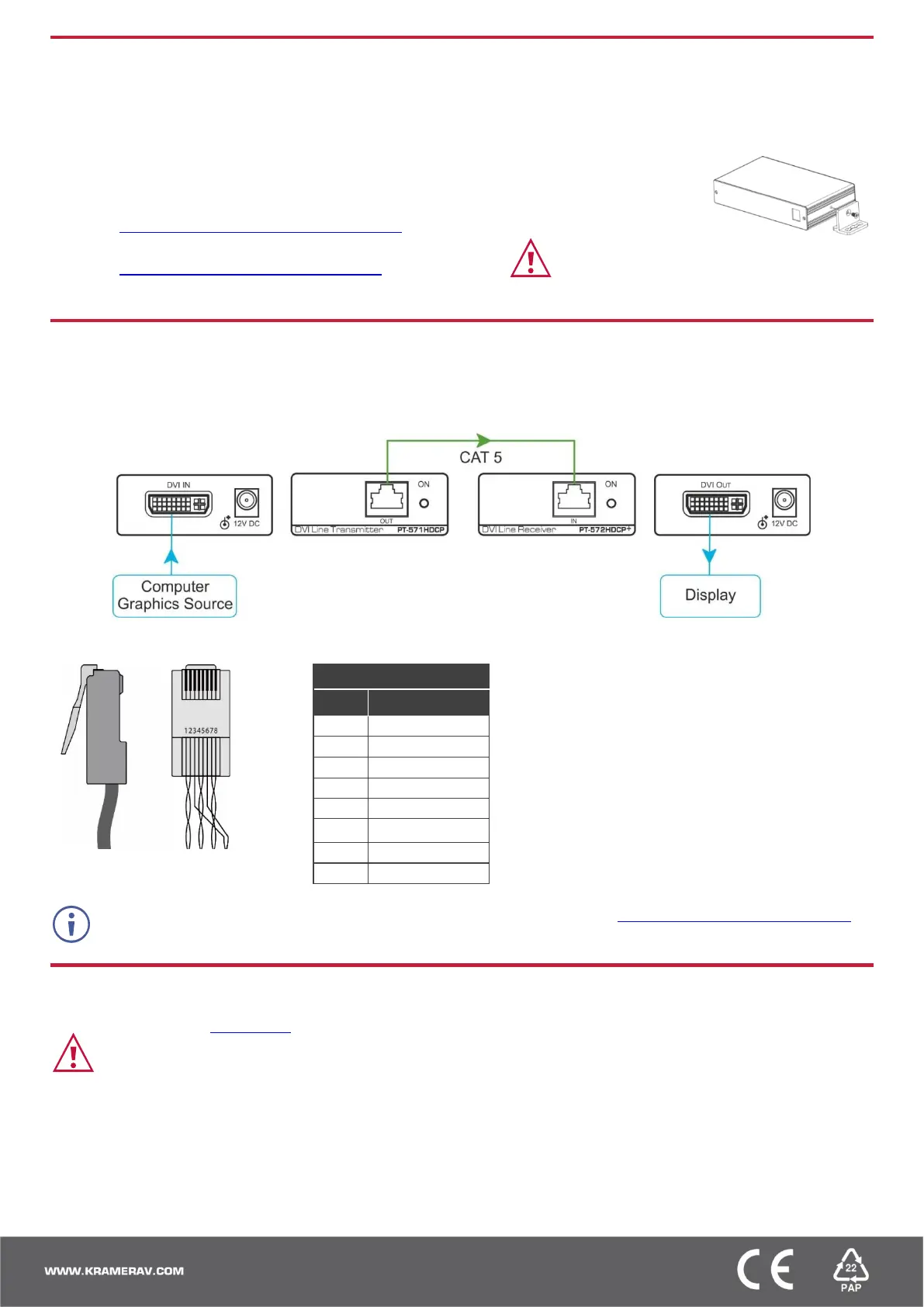

Step 3: Install the PT-571HDCP, PT-572HDCP+
Attach the rubber feet and place on a table or mount the PT-571HDCP, PT-572HDCP+ in a rack (using an optional RK-4PT
rack mount).
They can also be mounted on a desk top, wall or similar area. Fasten a bracket on each side of the unit using the two M3x8 screws
(supplied). Use the flat-head screws (supplied) to fix the unit to the mounting surface or enable it to slide in place.
Install PT-571HDCP, PT-572HDCP+ using one of the following methods:
• Attach the rubber feet and place the unit on a flat surface.
• Fasten a bracket (included) on each side of the unit and attach it to a flat surface
(see www.kramerav.com/downloads/PT-571HDCP).
• Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/PT-571HDCP).
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
Step 4: Connect the inputs and outputs
Always switch OFF the power on each device before connecting it to your PT-571HDCP, PT-572HDCP+.
For best results, we recommend that you use Kramer high-performance cables to connect AV equipment to the PT-571HDCP,
PT-572HDCP+.
RJ-45 Pinout:
For Ethernet connectors, see the wiring diagram below:
PIN EIA /TIA 568B
PIN
Wire Color
1
Orange / White
2
Orange
3
Green / White
4
Blue
5
Blue / White
6
Green
7
Brown / White
8
Brown
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/PT-571HDCP.
Using third-party cables may cause damage!
Step 5: Connect the power
Connect the power cord to PT-571HDCP, PT-572HDCP+ and plug it into the mains electricity.
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
• For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the
terminal or in the User Manual.
• There are no operator serviceable parts inside the unit.
Warning:
• Use only the power cord that is supplied with the unit.
• Disconnect the power and unplug the unit from the wall before installing.
