Kramer VM-1021N User Manual

VM-1021N - Overview
5
VM-1021N – Overview
5

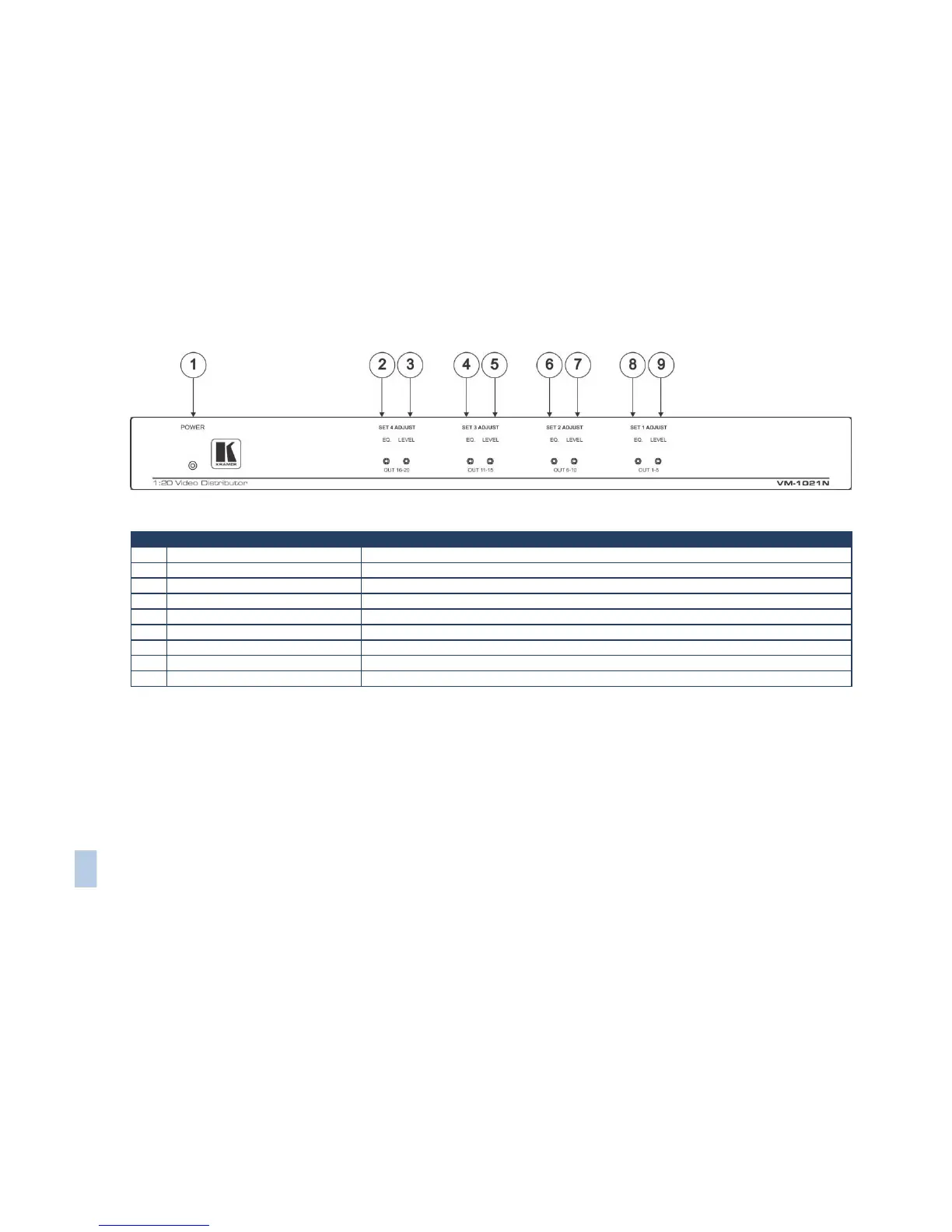

Figure 1: VM-1021N 1:20 Video Distributor Front Panel
#
Feature
Function
1
POWER LED
Illuminates when the device is turned on
2
SET 4 ADJUST EQ Trimmer
Controls cable equalization of SET 4 video outputs 16-20
3
SET 4 ADJUST LEVEL Trimmer
Controls level of SET 4 video outputs 16-20
4
SET 3 ADJUST EQ Trimmer
Controls cable equalization of SET 3 video outputs 11-15
5
SET 3 ADJUST LEVEL Trimmer
Controls level of SET 3 video outputs 11-15
6
SET 2 ADJUST EQ Trimmer
Controls cable equalization of the SET 2 video outputs 6-10
7
SET 2 ADJUST LEVEL Trimmer
Controls level of SET 2 video outputs 6-10
8
SET 1 ADJUST EQ Trimmer
Controls cable equalization of the SET 1 video outputs 1-5
9
SET 1 ADJUST LEVEL Trimmer
Controls level of the SET 1 video outputs 1-5

Kramer VM-1021N Specifications

General

Brand	Kramer
Model	VM-1021N
Category	Amplifier
Language	English
