VM-1021N - Overview

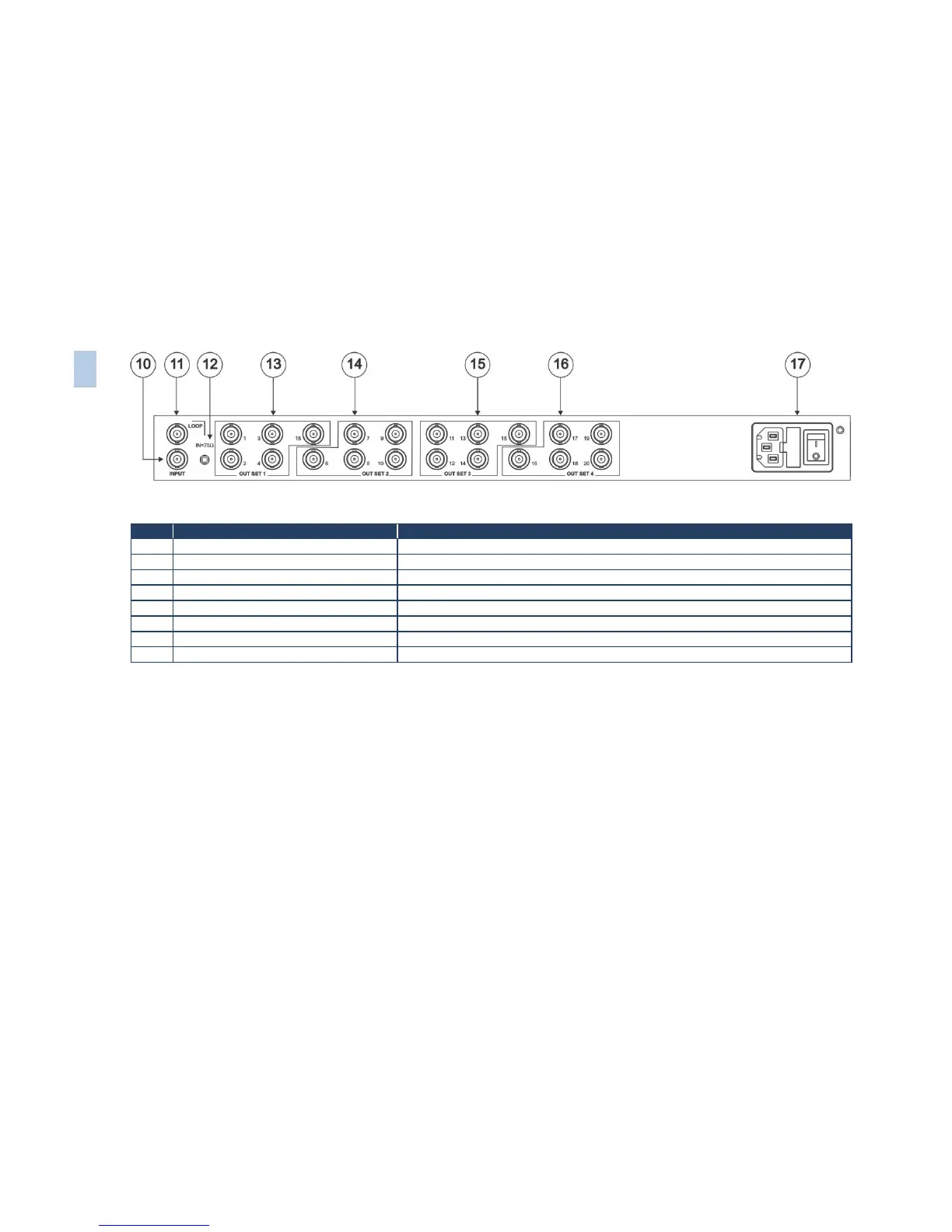

Figure 2: VM-1021N 1:20 Video Distributor Rear Panel
#
Feature
Function
10
INPUT BNC Connector
Connects to a composite/component/ analog sync video source
11
LOOP BNC Connector
Selects “75Ω“ or “HI-z” impedance when pressed (for looping select "Hi-z")
12
IN=75Ω Button
Provides video looping capability to increase number of outputs
13
OUT SET 1 BNC Connectors (1-5)
SET 1 of 5 amplified buffered and clamped video outputs 1-5
14
OUT SET 2 BNC Connectors (6-10)
SET 2 of 5 amplified buffered and clamped video outputs 6-10
15
OUT SET 3 BNC Connectors (11-15)
SET 3 of 5 amplified buffered and clamped video outputs 11-15
16
OUT SET 4 BNC Connectors (16-20)
SET 4 of 5 amplified buffered and clamped video outputs 16-20
17
Power Connector
AC connector, fuse and power switch enabling power supply to the unit
6
VM-1021N – Overview
